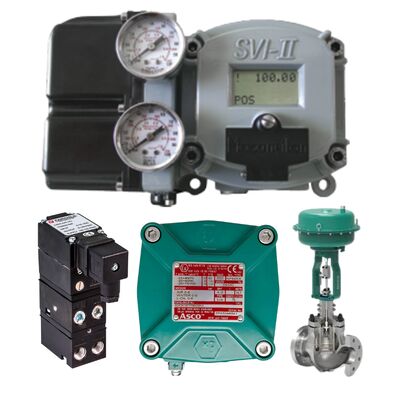

Product Description:
The Masoneilan SVI series valve positioners represent a cutting-edge solution in the realm of industrial automation. These intelligent electro-pneumatic devices are specifically engineered to manage pneumatic control valves with high accuracy and reliability.
Equipped to receive 4-20mA analog signals as well as various digital communication protocols like HART and FOUNDATION Fieldbus, the positioners enable precise valve positioning. This accuracy plays a critical role in maintaining stable regulation of vital process parameters, including flow, pressure, and temperature.
Incorporating advanced technologies such as high-precision sensors, microprocessor units, and adaptive control algorithms, the SVI series ensures optimal valve control even in complex operating environments. Additionally, these devices support remote monitoring and diagnostics, enhancing operational efficiency and facilitating proactive maintenance.
Features:
High Precision Control
The device offers an impressive positioning accuracy of ±0.1% full scale. It maintains hysteresis and deadband within ±0.3%, guaranteeing reliable and stable flow regulation under various conditions.
Smart Communication
Equipped with support for the HART protocol (optional Versions 5 and 7), this product is fully compatible with DCS and PLC systems. It facilitates remote configuration of parameters, retrieval of diagnostic data, and seamless firmware upgrades through the ValVue software platform.
Modular Design
The modular architecture allows quick replacement of key components such as circuit boards and sensors, significantly reducing maintenance expenses. Additionally, the "one-touch tuning" feature helps minimize downtime by simplifying calibration processes.
Environmental Adaptability
Designed to withstand harsh industrial conditions, the device boasts an IP66/NEMA 4X protection rating. It operates reliably within a wide temperature range from -40°C to +85°C and supports humidity levels from 10% to 95% RH without condensation.
Explosion-Proof Certification
This product meets rigorous safety standards with certifications from ATEX, IECEx, FM, and CSA. It supports explosion-proof (Ex d IIC T6) and intrinsically safe (Ex ia IIC T4) designs, making it suitable for hazardous and potentially explosive environments.
Integrated Pressure Gauge
Certain models, such as the SVi1000/PR/G/IM, come equipped with integrated pressure gauges. These gauges provide direct readings of input and output air pressure, streamlining on-site commissioning and monitoring tasks.
Technical Parameters:
| Actuator Compatibility |
Single-acting (spring-return) & Double-acting |
| Input Signal (Pneumatic) |
3-15 Psi (0.2-1.0 Bar) |
| Hysteresis |
Typically < 0.3% Of Span |
| Process/Valve Temperature Range |
-196°C to +450°C and above |
| Materials (Housing) |
Aluminum, Stainless Steel, Or Coated Cast Iron |
| Type |
Electro-Pneumatic / Pneumatic Valve Positioner |
| Hazardous Area Approvals |
ATEX, IECEx, FM, CSA (for Certified Models) |
| Input/Output Connections |
Conduit Entries Or Integral Connectors |
| Enclosure Rating |
Minimum IP66 / NEMA 4X; Explosion-proof Options Available |
| Calibration |
Field Adjustable (zero, Span, Action) |
Applications:
Applications
Petrochemical Industry
In the petrochemical sector, these devices are essential for refinery reactors and natural gas pipelines. They enable precise flow control of high-temperature and high-pressure substances such as crude oil and steam, even in hazardous environments.
Power & Energy
Within the power and energy industry, they regulate valves found in steam turbines, condensers, and boiler systems. This contributes significantly to improving the efficiency of power generation, particularly under conditions involving high temperatures and vibrations.
Water Treatment
These controls play a crucial role in managing large-diameter valves used in municipal water supply and wastewater treatment facilities. Their precise operation helps optimize water flow and the dosing of chemicals, enhancing overall treatment effectiveness.
Pharmaceutical & Food Processing
Complying with strict hygienic standards, these valves ensure sterile control within cleanroom environments. This is vital for maintaining production safety and cleanliness in pharmaceutical and food processing industries.
Metallurgical Industry
In the metallurgical field, they offer precise management for atmosphere regulation and fluid transfer during smelting operations. Their reliability supports continuous working processes even under extreme high-temperature and high-pressure conditions.
Support and Services:
Our Valve Accessories are designed to enhance the performance and reliability of your valve systems. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.
If you encounter any issues or require assistance with troubleshooting, our technical support team is available to help you ensure optimal functionality and safety of your valve accessories. We recommend regular maintenance checks and using only compatible parts to avoid any operational problems.
We also offer a range of professional services including installation support, custom modifications, and training sessions to help you maximize the benefits of your valve accessories. For further information on these services, please consult our service guide or visit our website.
Packing and Shipping:
Valve accessories are carefully packaged to ensure protection during transit. Each accessory is individually wrapped with cushioning materials to prevent damage. The products are then placed in sturdy, labeled boxes that provide additional protection and ease of identification.
For shipping, we use reliable carriers that offer tracking and timely delivery services. All packages are securely sealed and handled with care to maintain the integrity of the valve accessories until they reach the customer.
