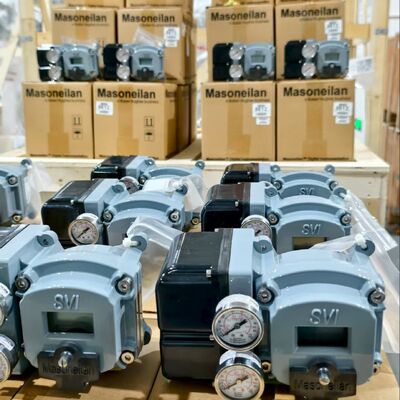

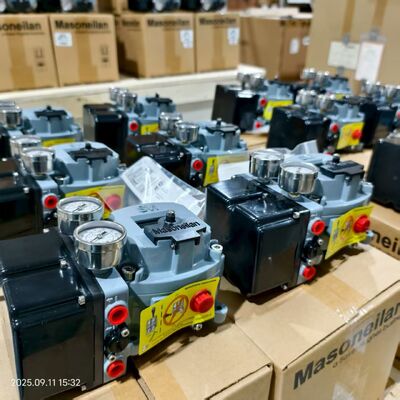

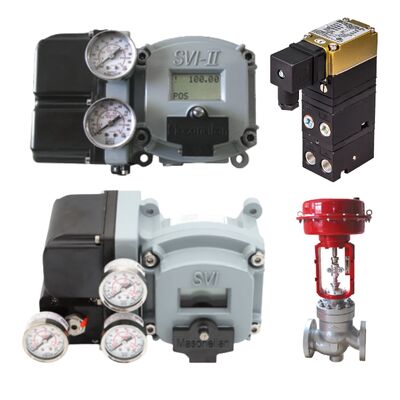

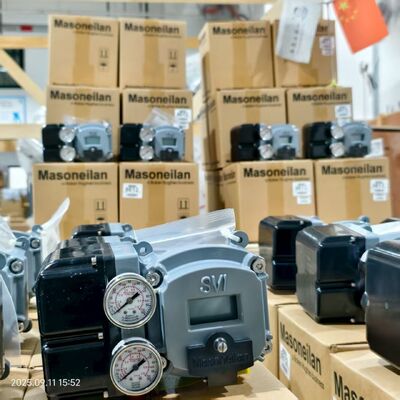

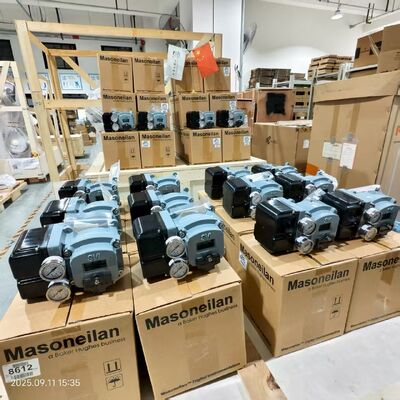

Product Description:
The Masoneilan SVI series valve positioners are advanced electro-pneumatic devices specifically engineered for controlling pneumatic valves within industrial automation systems. These intelligent positioners accept 4-20mA analog input signals as well as various digital communication protocols, including HART and FOUNDATION Fieldbus, to accurately adjust valve positions.
By precisely managing valve movements, the SVI series ensures stable and reliable regulation of critical process variables such as flow rate, pressure, and temperature. This functionality is essential for maintaining optimal performance and safety across diverse industrial applications.
Moreover, the valve positioners incorporate high-precision sensors and powerful microprocessors, combined with adaptive control algorithms. This integration allows for enhanced control accuracy and responsiveness. In addition, the SVI series supports remote monitoring and diagnostic capabilities, enabling users to oversee valve performance and troubleshoot issues effectively even under complex operating conditions.
Features:
High Precision Control
This product offers outstanding positioning accuracy, achieving ±0.1% of full scale. It maintains a hysteresis and deadband within ±0.3%, which guarantees stable and reliable flow regulation under various operating conditions.
Smart Communication
Equipped with support for the HART protocol, including optional versions 5 and 7, this device seamlessly integrates with DCS and PLC control systems. It allows users to perform remote configuration of parameters, access diagnostic data, and update firmware conveniently through the ValVue software platform.
Modular Design
The modular design facilitates quick replacement of essential components such as circuit boards and sensors, significantly lowering maintenance costs. Additionally, the "one-touch tuning" feature ensures that downtime is minimized, enhancing overall operational efficiency.
Environmental Adaptability
Built to withstand harsh industrial environments, the product carries an IP66/NEMA 4X protection rating. It operates reliably across a wide temperature range from -40°C to +85°C and can tolerate humidity levels between 10% and 95% relative humidity without condensation.
Explosion-Proof Certification
The device is certified by multiple authoritative bodies including ATEX, IECEx, FM, and CSA. It supports explosion-proof configurations (Ex d IIC T6) as well as intrinsically safe designs (Ex ia IIC T4), making it suitable for use in hazardous atmospheres where safety is paramount.
Integrated Pressure Gauge
Certain models, such as the SVi1000/PR/G/IM, come equipped with an integrated pressure gauge. This feature allows for the immediate display of input and output air pressure, simplifying field commissioning and enhancing user convenience.
Technical Parameters:
| Process/Valve Temperature Range |
-196°C to +450°C and above |
| Calibration |
Field Adjustable (zero, Span, Action) |
| Input Signal (Electro-Pneumatic) |
4-20 MA DC (Standard) |
| Hysteresis |
Typically < 0.3% Of Span |
| Input Signal (Pneumatic) |
3-15 Psi (0.2-1.0 Bar) |
| Supply Air Pressure |
Typically 1.4 To 7 Bar (20 To 100 Psig) |
| Input/Output Connections |
Conduit Entries Or Integral Connectors |
| Hazardous Area Approvals |
ATEX, IECEx, FM, CSA (for Certified Models) |
| Output Air Pressure |
0 To 100% Of Supply Pressure |
| Brand / Manufacturer |
Masoneilan |
Applications:
Applications
Petrochemical Industry
In the petrochemical sector, these systems are utilized within refinery reactors and natural gas pipelines. They enable accurate flow control of media subjected to high temperatures and pressures, such as crude oil and steam, especially in hazardous operational environments.
Power & Energy
Within power generation, these devices regulate valves in critical components like steam turbines, condensers, and boiler systems. Their function is essential to enhance efficiency even under conditions involving elevated temperatures and vibrations.
Water Treatment
In municipal water supply and wastewater treatment facilities, these controls are applied to large-diameter valves. They play a vital role in optimizing water flow and managing chemical dosing processes effectively.
Pharmaceutical & Food Processing
These solutions comply with stringent hygienic standards required for sterile valve operation within cleanroom environments. This ensures both safety and cleanliness throughout pharmaceutical and food production.
Metallurgical Industry
In metallurgy, precise regulation of atmospheric conditions and fluid transfer during smelting is achieved with these controls. They are designed to support continuous operations under demanding high-temperature and high-pressure conditions.
Support and Services:
Our Valve Accessories are designed to enhance the performance and reliability of your valve systems. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.
If you encounter any issues or have questions about your Valve Accessories, our technical support team is available to assist you with troubleshooting, product specifications, and compatibility information.
We also offer a range of services including installation guidance, routine maintenance tips, and repair services to ensure your valve accessories operate at peak efficiency. Extended warranty options and replacement parts are available to maximize the lifespan of your products.
For comprehensive support, please visit our online resources, including FAQs, downloadable manuals, and instructional videos, which are designed to provide quick and easy assistance.
Your satisfaction and the optimal performance of your valve accessories are our top priorities. We are committed to providing high-quality support and services to meet your needs.

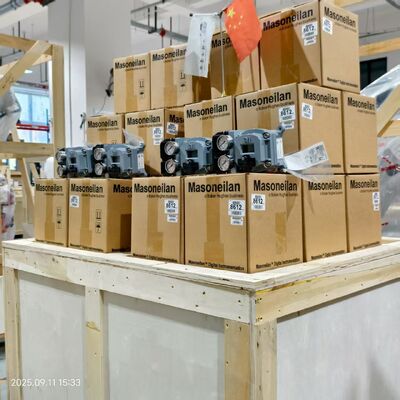

Packing and Shipping:
Valve accessories are carefully packaged to ensure safe transportation and delivery. Each accessory is individually wrapped with protective materials to prevent damage during handling and shipping. The products are then placed in sturdy, appropriately sized boxes labeled with product details and handling instructions.
For bulk orders, valve accessories are organized in pallets with additional cushioning and secured with straps or shrink wrap to maintain stability during transit. All packages are clearly marked with shipping information, including destination address, handling symbols, and any necessary safety warnings.
Our shipping process is designed to guarantee timely and secure delivery, utilizing reliable carriers and tracking systems. We also offer customized packaging solutions upon request to meet specific requirements or industry standards.
