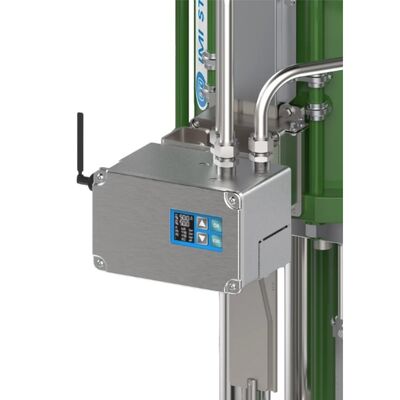

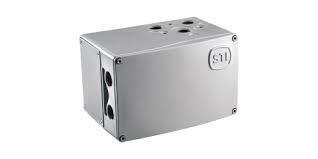

IMI STI SHP SI00ASSAU is a high-performance variant from the SHP series (Smart High-Performance Positioner) by IMI STI, Italy. It is a state-of-the-art, high-capacity digital-pneumatic valve positioner designed as a valve care controller, succeeding and surpassing the earlier FasTrak (FT) series. With the highest flow rate on the market, patented control algorithms, and advanced diagnostics, it delivers ultra-fast response, exceptional dynamic performance, and precise valve positioning for critical industrial processes.
Product Overview
The IMI STI SHP SI00ASSAU is a smart, high-precision digital-pneumatic positioner engineered for demanding valve control applications. It features superior flow capacity, patented logic for minimal stroking times, and real-time diagnostics (online/offline). Replacing traditional positioners, it ensures reliable, high-speed actuation with low air consumption and vibration-resistant contactless feedback (standard or optional remote sensor up to 20m). It supports HART 7 communication, USB, FDI drivers, and remote software configuration, making it ideal for modern valve care and process optimization.
Features
- Highest flow capacity on the market for ultra-fast actuator response
- Patented control algorithm and logic for unique dynamic performance and very low stroking times
- High positioning accuracy and repeatability
- Advanced diagnostics (online and offline) for predictive maintenance
- Contactless feedback sensor (360° rotation capable; optional remote sensor up to 20m)
- HART 7 protocol support plus USB, FDI, and remote software interface

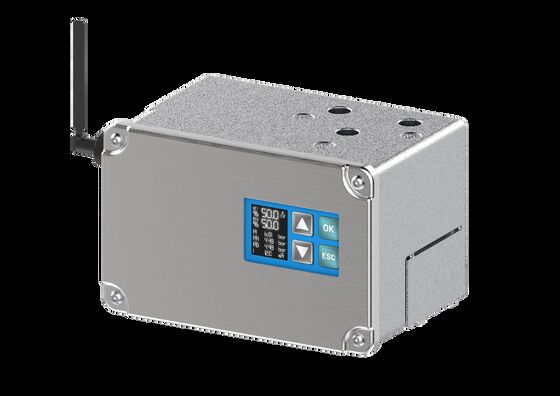

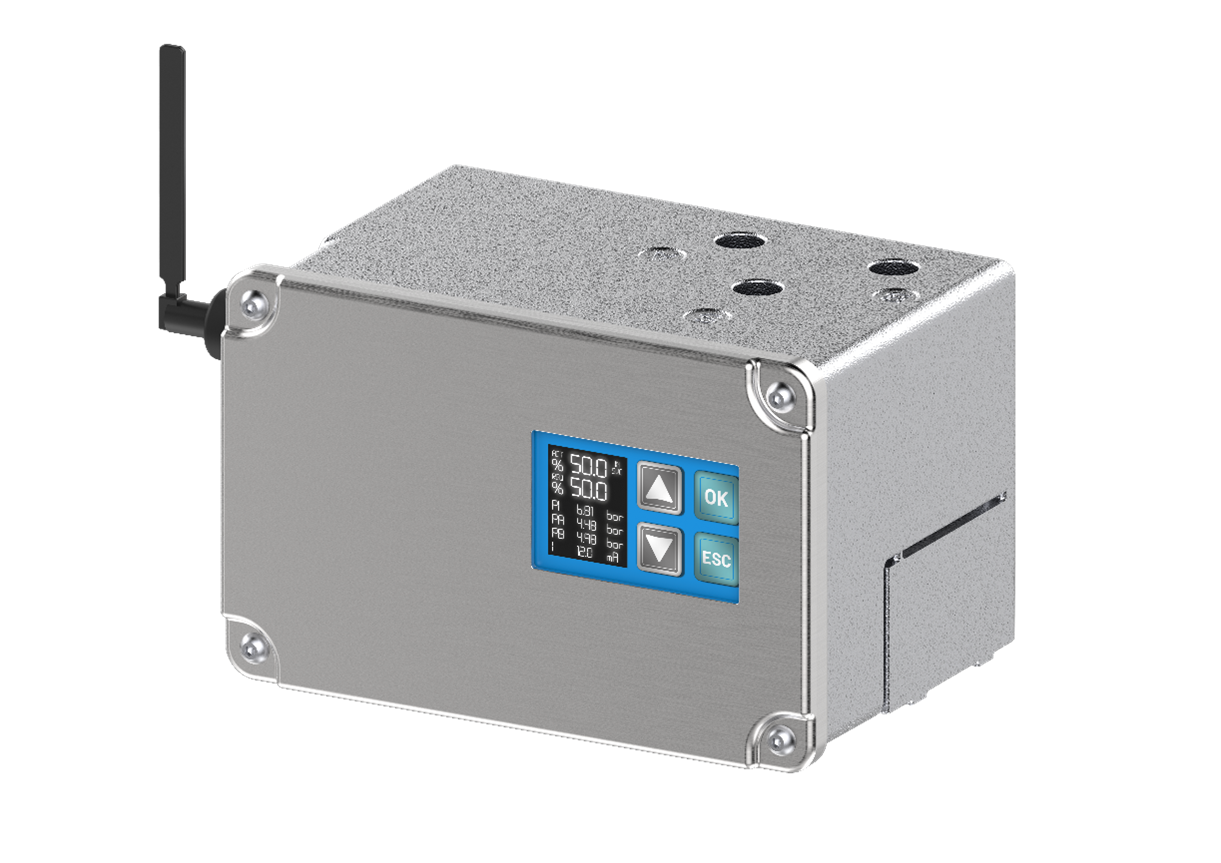

- Local user interface for easy setup
- Compatible with single-acting and double-acting actuators (linear/rotary, piston/diaphragm)
- Low air consumption and energy-efficient design
- Vibration-resistant construction for harsh environments
- Certifications for intrinsic safety and explosion-proof (ATEX/IECEx options)
Technical Specifications
- Model
- SHP SI00ASSAU (Smart High-Performance Positioner variant)
- Type
- Digital-pneumatic smart valve positioner / valve care controller
- Input Signal
- 4-20 mA (with HART 7 communication)
- Air Supply Pressure
- Typically 1.4–7 bar (clean, dry instrument air)
- Flow Capacity
- Highest in class (specific Cv value superior to predecessors like FT Cv=2.0)
- Output
- Pneumatic to actuator (Ports A/B)
- Communication
- HART 7, USB, FDI driver, remote software
- Feedback Sensor
- Contactless (standard); optional remote up to 20m
- Enclosure Protection
- IP66/67 or higher (depending on configuration)
- Operating Temperature
- -55°C to +85°C (extended range available)
- Actuator Compatibility
- Single/double acting, linear/rotary, spring-return or double-acting piston/diaphragm
- Diagnostics
- Real-time monitoring of pressures (PI, PA, PB), position, travel times, and more
- Configuration
- Auto-setup, remote control software, local interface
- Material
- High-grade industrial components (stainless steel options available)
- Certifications
- ATEX, IECEx (intrinsically safe/explosion-proof variants)
Applications
- Oil & Gas (upstream, midstream, refining)
- Petrochemical and chemical processing
- Power generation and utilities
- LNG and floating production units
- Heavy-duty process control requiring fast stroking and precision
- Antisurge, turbine bypass, steam conditioning, and compressor applications
- Any critical service where valve reliability, diagnostics, and minimal downtime are essential
FAQ
Q: What distinguishes the SHP SI00ASSAU from the earlier FasTrak FT series?
A: The SHP series offers higher flow capacity, patented algorithms for faster stroking times, advanced diagnostics, and modern connectivity (HART 7, remote software), while maintaining or improving dynamic performance.
Q: Does it support remote configuration and monitoring?
A: Yes, via HART 7, USB, FDI drivers, and dedicated remote control software.
Q: Is it suitable for hazardous areas?
A: Yes, with available ATEX/IECEx certifications for intrinsically safe or explosion-proof use.
Q: Can it work with both single and double-acting actuators?
A: Yes, fully compatible with single- and double-acting actuators, including linear and rotary types.
Q: What feedback sensor options are available?
A: Standard contactless sensor; optional remote contactless sensor for distances up to 20m.
Contact Us
For inquiries, quotes, technical support, or orders, please contact us:
WeChat / WhatsApp / Phone: +8613472860702
Related Products
- Other SHP series variants (different configurations or approvals)
- IMI STI FasTrak FT series (previous high-capacity positioners)
- IMI STI PT series smart positioners

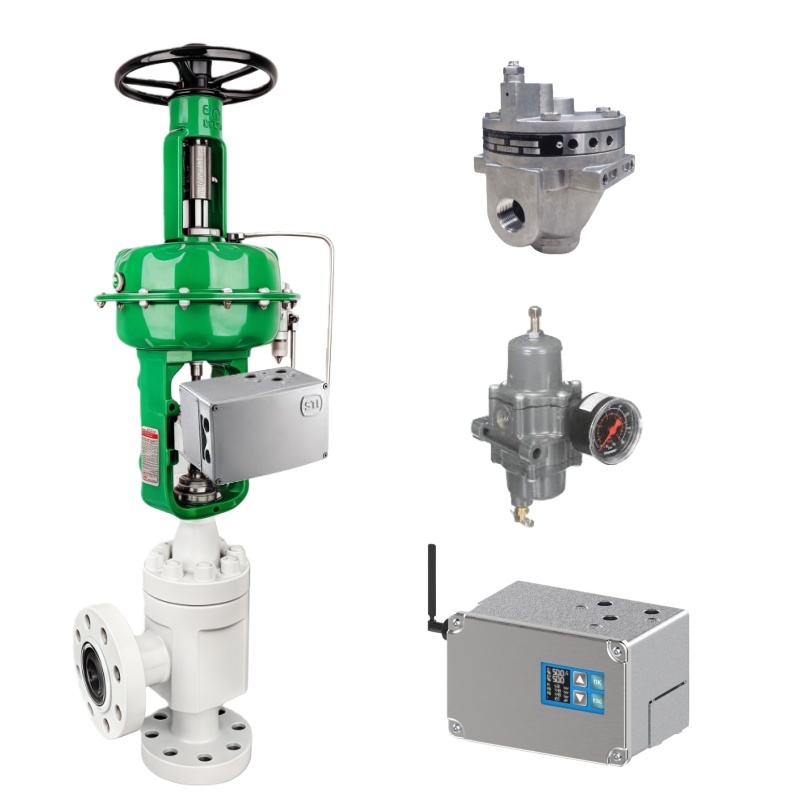

- Compatible actuators: SC series linear, RTC series quarter-turn, QuickTrak systems
- Additional IMI STI valve actuation accessories and control solutions
We are happy to provide full datasheets, instruction manuals, certificates, or tailored solutions upon request!
