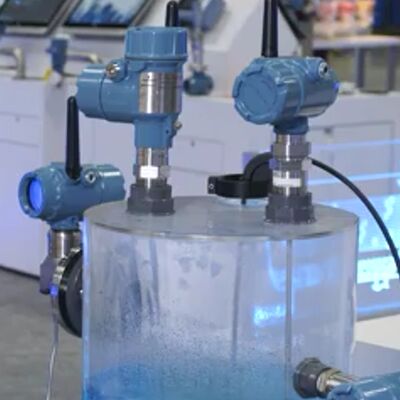

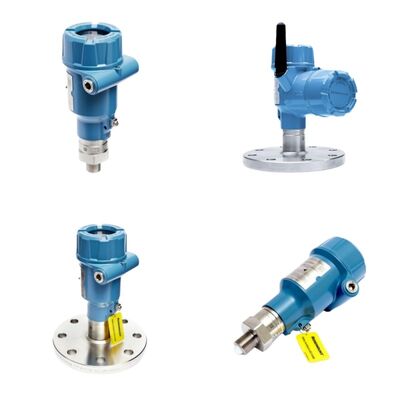

Rosemount 3408 Radar Level Transmitter 80GHz Non Contact Liquid Level Measurement Industrial Smart Sensor

1
MOQ
US $800.00 - 850.00/ Unit
Price
Rosemount 3408 Radar Level Transmitter 80GHz Non Contact Liquid Level Measurement Industrial Smart Sensor
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Accuracy: ± 2 Mm
Power Supply: 12-35 VDC (30 VDC In Intrinsically Safe Installations)
Measurement Frequency: 80 GHz
Antenna Type: Process Seal, Lens Antenna, ATAP Lens Antenna
Operating Temperature: -76 To 392 °F (-60 To 200 °C)
Communication Protocol: 4-20mA HART7,WirelessHAR
Wireless Update Rate: 4 Sec. To 60 Min., User Selectable
Basic Infomation
Place of Origin: USA
Brand Name: Rosemount
Model Number: 3408
Payment & Shipping Terms
Packaging Details: Cardboard box/Wooden crate
Delivery Time: 6~8 weeks
Payment Terms: T/T
Supply Ability: 1000 units per year
Product Description
Product Overview

The Rosemount 3408 is a compact 80 GHz FMCW radar level transmitter designed for continuous level measurement in tanks and vessels. It offers high accuracy even in small nozzles and challenging conditions like foam, condensation, or agitation. The Bluetooth interface makes setup and troubleshooting fast and safe without opening the cover.

Features
  • 80 GHz narrow beam – ideal for small nozzles and internal obstructions
  • Smart Echo Supervision – ignores false echoes from foam or condensation
  • Bluetooth wireless access – configure and monitor from phone/tablet
  • Remote proof-test capability – verify safety loops from control room
  • All-PTFE wetted parts option – handles corrosive liquids
  • Heartbeat Technology – quick verification without removal
Technical Specifications
Measuring Principle: FMCW 80 GHz radar
Accuracy: ±2 mm (standard)
Measuring Range: Up to 20 m (65 ft)
Process Temperature: -40 °C to +150 °C (-40 °F to +302 °F)
Process Pressure: -1 to +20 bar (-14.5 to +290 psig)
Antenna Types: Lens or cone
Output: 4–20 mA HART
Protection Class: IP66/67, NEMA 4X
Approvals: ATEX, IECEx, FM, CSA, SIL 2 capable
Applications
  • Small process tanks and vessels
  • Corrosive liquid storage
  • Foaming or condensing applications
  • Overfill prevention and inventory
FAQ
Q: Can I configure it without opening the cover? A: Yes – full Bluetooth access from a phone or tablet.
Q: How accurate in foam? A: Smart Echo Supervision filters false echoes effectively.
