High Accuracy 80GHz Liquid Level Sensor Emerson Rosemount 3408 Wireless Smart Radar Level Transmitter

1
MOQ
US $800.00 - 849.00/ Unit
Price
High Accuracy 80GHz Liquid Level Sensor Emerson Rosemount 3408 Wireless Smart Radar Level Transmitter
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Accuracy: ± 2 Mm
Power Supply: 12-35 VDC (30 VDC In Intrinsically Safe Installations)
Measurement Frequency: 80 GHz
Antenna Type: Process Seal, Lens Antenna, ATAP Lens Antenna
Operating Temperature: -76 To 392 °F (-60 To 200 °C)
Communication Protocol: 4-20mA HART7,WirelessHAR
Wireless Update Rate: 4 Sec. To 60 Min., User Selectable
Basic Infomation
Place of Origin: USA
Brand Name: Rosemount
Model Number: 3408
Payment & Shipping Terms
Packaging Details: Cardboard box/Wooden crate
Delivery Time: 6~8 weeks
Payment Terms: T/T
Supply Ability: 800 units per year
Product Description

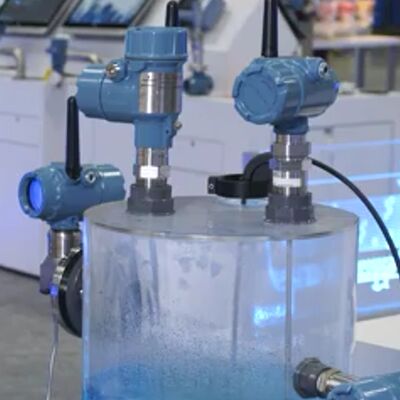

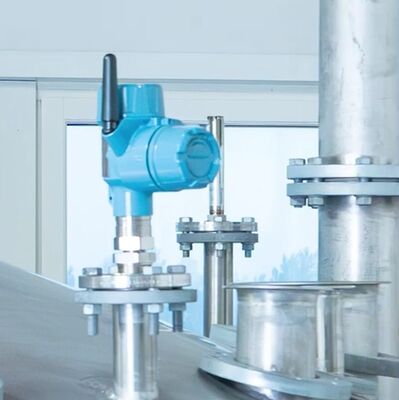

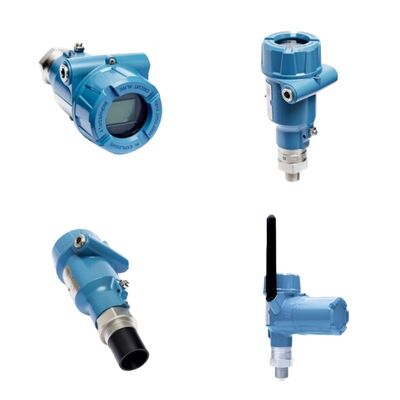

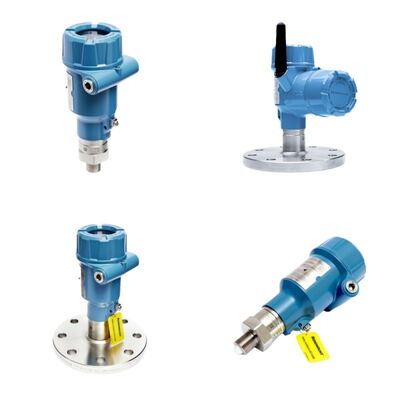

Rosemount 3408 Level Transmitter
Product Overview

Product Overview The Rosemount 3408 is an 80 GHz non-contacting radar level transmitter built for reliable measurement in tanks with small process connections. The Bluetooth interface allows configuration, diagnostics, and proof-testing from a safe distance using a phone or tablet. It is widely used in chemical, water, and oil applications where quick access and high accuracy matter.

Features
  • Very narrow 80 GHz beam – fits small nozzles
  • Bluetooth connectivity – safe setup without cover removal
  • Remote proof-testing from control room
  • Smart Echo Supervision – reliable in foam/condensation
  • PTFE lens antenna option for corrosive service
  • Heartbeat verification – fast proof-test reporting
Technical Specifications
Measuring Principle:
FMCW 80 GHz radar
Accuracy:
±2 mm
Measuring Range:
Up to 20 m (65 ft)
Process Temperature:
-40 °C to +150 °C
Process Pressure:
-1 to +20 bar
Antenna:
Lens or cone
Output:
4–20 mA HART
Protection:
IP66/67, NEMA 4X
Approvals:
ATEX, IECEx, FM, CSA, SIL 2
Applications
  • Chemical storage tanks
  • Water and wastewater vessels
  • Small nozzle installations
  • Corrosive or condensing liquids
FAQ
Q: Bluetooth secure?
A: Yes – password protected and encrypted.
Q: Suitable for small tanks?
A: Yes – narrow beam works in small nozzles.
