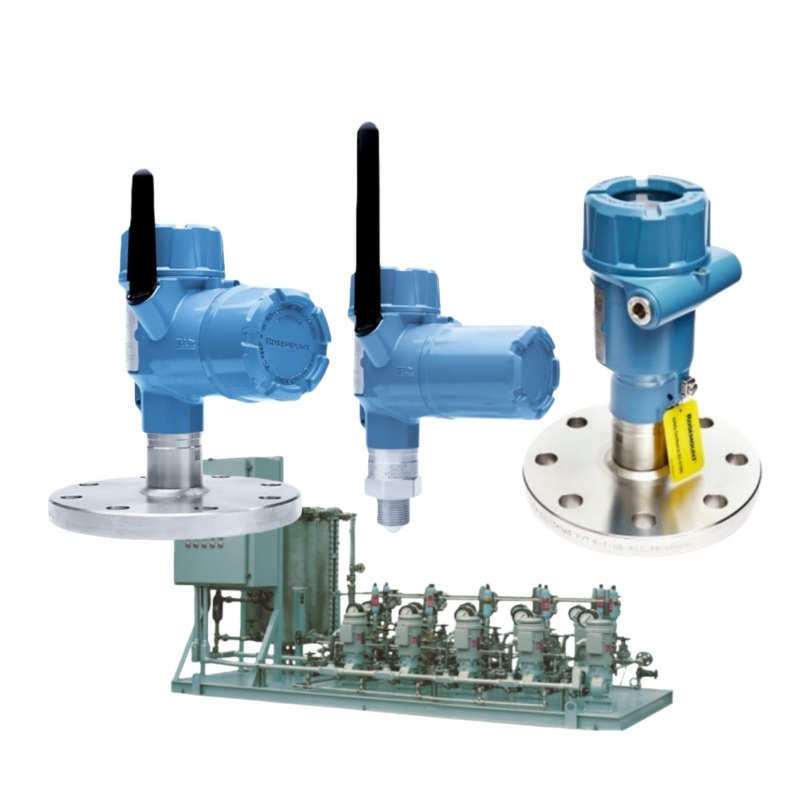

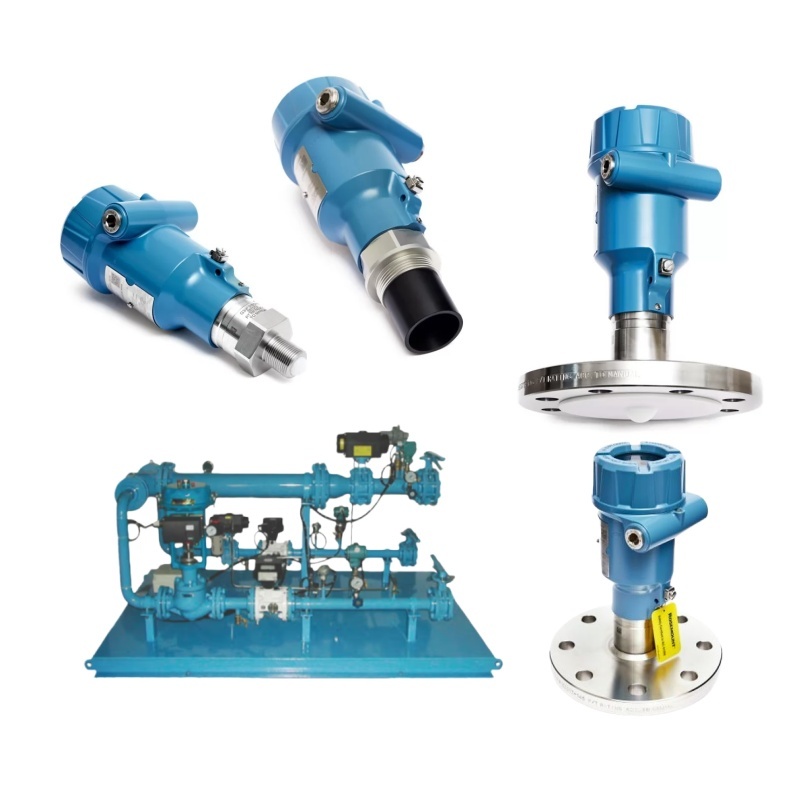

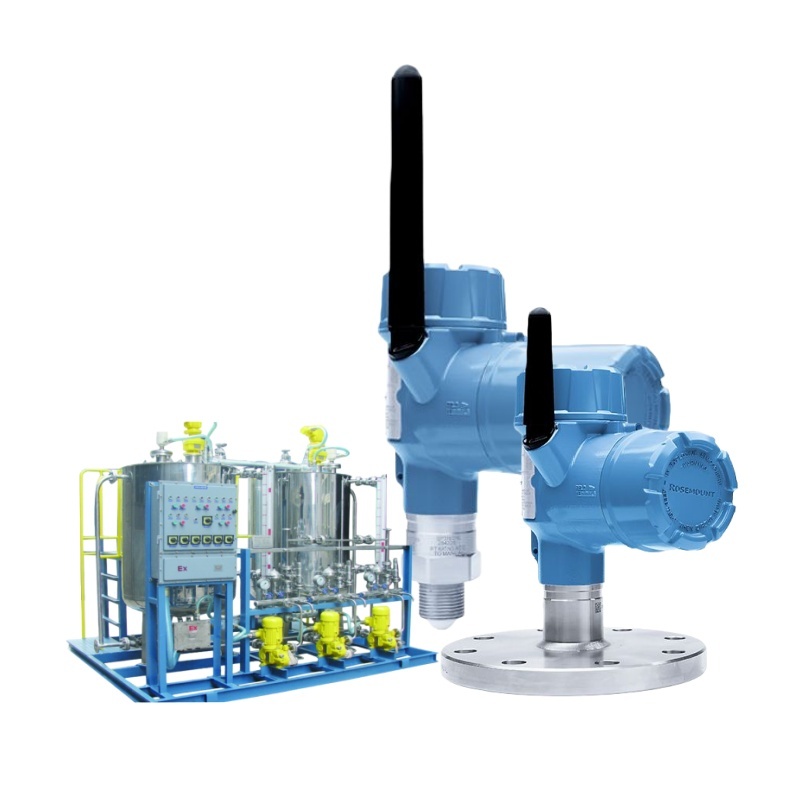

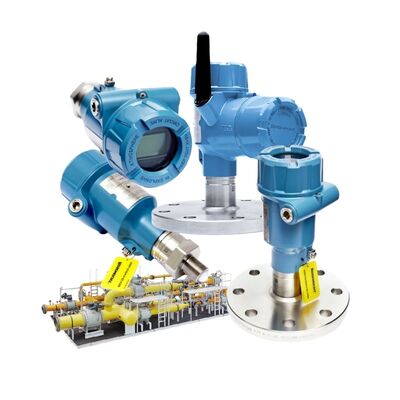

Rosemount 3408 Industrial Radar Level Transmitter Liquid Storage Tank Continuous Level Measurement

1
MOQ
US $800.00 - 888.00/ Unit
Price
Rosemount 3408 Industrial Radar Level Transmitter Liquid Storage Tank Continuous Level Measurement
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Accuracy: ± 2 Mm
Power Supply: 12-35 VDC (30 VDC In Intrinsically Safe Installations)
Measurement Frequency: 80 GHz
Antenna Type: Process Seal, Lens Antenna, ATAP Lens Antenna
Operating Temperature: -76 To 392 °F (-60 To 200 °C)
Communication Protocol: 4-20mA HART7,WirelessHAR
Wireless Update Rate: 4 Sec. To 60 Min., User Selectable
Basic Infomation
Place of Origin: USA
Brand Name: Rosemount
Model Number: 3408
Payment & Shipping Terms
Packaging Details: Cardboard box/Wooden crate
Delivery Time: 6~8 weeks
Payment Terms: T/T
Supply Ability: 800 units per year
Product Description
Rosemount 3408 Level Transmitter
Product Overview

The Rosemount 3408 is a compact 80 GHz FMCW radar level transmitter for tanks and vessels. It excels in small connections, corrosive media, and difficult conditions (foam, condensation, agitation). Bluetooth allows safe configuration and remote proof-testing, making it popular in chemical and water treatment applications.

Features
  • 80 GHz narrow beam – ideal for small nozzles
  • Bluetooth wireless setup and diagnostics
  • Remote proof-test from control room
  • Smart Echo Supervision – filters false echoes
  • PTFE lens option for corrosive liquids
  • Heartbeat Technology – easy verification
Technical Specifications
  • Measuring Principle: FMCW 80 GHz radar
  • Accuracy: ±2 mm
  • Measuring Range: Up to 20 m (65 ft)
  • Process Temperature: -40 °C to +150 °C
  • Process Pressure: -1 to +20 bar
  • Antenna: Lens or cone
  • Output: 4–20 mA HART
  • Protection: IP66/67, NEMA 4X
  • Approvals: ATEX, IECEx, FM, CSA, SIL 2 capable
Applications
  • Corrosive chemical tanks
  • Small process vessels
  • Foaming or condensing liquids
  • Overfill prevention
FAQ
Q: How does it handle corrosion?
A: PTFE lens antenna option available.
Q: Proof-test without shutdown?
A: Yes – remote proof-test capability.
