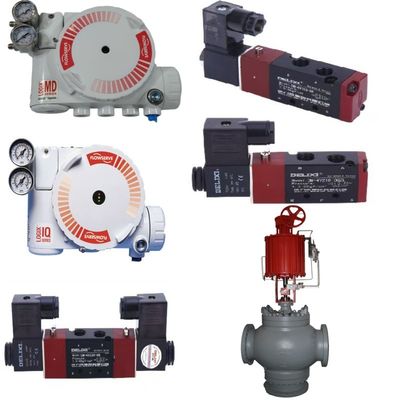

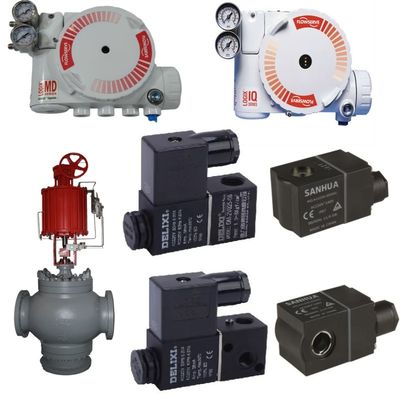

New Pneumatic Control Valve and ASCO Solenoid Valve and FLOWSERVE 3200MD 520MD 3800MD Valve Positioner

Product Overview

The Flowserve Logix 3200MD is a two-wire, 4-20 mA input digital valve positioner that uses advanced piezo technology for precise, responsive valve positioning. It supports both single- and double-acting actuators in linear or rotary configurations, powered entirely by the control signal. Local interface options make setup straightforward, while HART protocol enables remote communication and diagnostics.

Features

• State-of-the-art piezo valve control for fast response and high reliability.
• Local status LEDs for quick visual feedback.
• Local DIP switches and calibration buttons for on-site adjustments.
• Auto tuning with dynamic gain selection for optimized performance.
• Utilizes HART 5 protocol for configuration and monitoring.
• Simple calibration via local interface or HART handheld.
• Supports analog or digital command sources (0% closed, 100% open).

Technical Specifications

Power Supply: Two-wire, 4-20 mA; 10.0 to 30.0 VDC. Compliance Voltage: 10.0 VDC @ 20 mA. Effective Resistance: 495 Ω @ 20 mA (add 20 Ω with HART active). Minimum Operating Current: 3.6 mA (without AO board); 3.85 mA (with AO board). Maximum Voltage: 30.0 VDC. Communications: HART Protocol. Deadband: <0.1% full scale. Repeatability: <0.05% full scale. Linearity: <0.5% (rotary), <0.8% (sliding stem) full scale. Air Consumption: <0.3 SCFM (0.5 Nm³/hr) @ 60 psi (4 barg). Air Capacity: 12 SCFM @ 60 psi (4 barg) (0.27 Cv). Operating Temperature: Standard -4° to 176°F (-20° to 80°C); Low option -40° to 176°F (-40° to 80°C). Housing Material: Cast, powder-painted aluminum or stainless steel. Weight: 8.3 lb (3.9 kg) aluminum; 20.5 lb (9.3 kg) stainless steel. Hazardous Area Ratings: Explosion-proof Class I Div 1 Groups B-D, Ex d IIB+H2; Intrinsically Safe Class I Div 1 Groups A-G, Ex ia IIC; Non-Incendive Class I Div 2 A-D.

Applications

Commonly used for precise control of control valves in oil & gas, chemical processing, power generation, and refining—ideal where reliable positioning, low air use, and hazardous area compliance are needed.

FAQ

Q: How is it powered? A: Fully loop-powered by the 4-20 mA signal, no external power required.

Q: What makes calibration easy? A: Local DIP switches, buttons, and auto tuning simplify on-site setup.

Q: Does it handle rotary and linear valves? A: Yes, works with both single- and double-acting actuators in rotary or linear mounting.

Q: Is it suitable for hazardous locations? A: Yes, with explosion-proof, intrinsically safe, and non-incendive approvals.

Q: What's the air consumption like? A: Low at under 0.3 SCFM at 60 psi for efficient operation.

Contact Us

Email: tracychen@gbsxj.com; tracy@gongboshi.com

WhatsApp: +8617799852698

Wechat/Phone: 13032169170

Related Products

Consider the Logix 3200MD+ for enhanced diagnostics and alarms, or the Logix 3800 for newer modular designs with pressure sensors.
