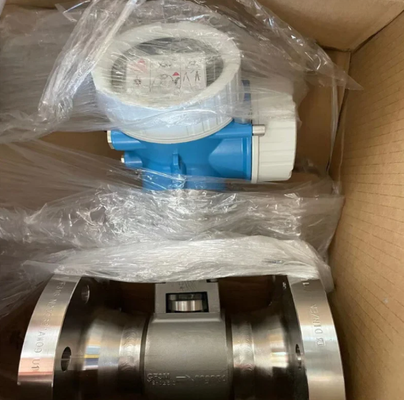

Endress Hauser Proline Prowirl F 200 Vortex Flow Meter Steam Gas & Liquid Flow Measurement E+H Flowmeter

Product Overview

The Proline Prowirl F 200 is a multivariable vortex flowmeter designed for accurate measurement of steam, gas, and liquids. It combines flow, temperature, and pressure measurement in one device, allowing direct mass flow output for saturated steam without extra instruments. The all-welded sensor and compact design make it ideal for industrial utilities and process applications.

Features

• Multivariable – flow + temperature + pressure in one unit
• Direct mass flow for saturated steam
• All-welded, gasket-free sensor body
• Optional pressure compensation for gas/steam
• Heartbeat Technology – device verification without removal
• Bluetooth access via SmartBlue app
• PFA-lined version for aggressive media

Technical Specifications

• Measuring Principle: Vortex shedding (vortex frequency)
• Max Measured Error: ±0.75% (liquids), ±1% (gas/steam)
• Measuring Range: Depends on size (e.g. DN25: ~1–30 m³/h water)
• Process Temperature: –40 to +260 °C (–40 to +500 °F) standard; up to +400 °C with special version
• Process Pressure: Up to 100 bar (1450 psi)
• Line Sizes: DN15 to DN300 (½" to 12")
• Output: 4–20 mA HART, Pulse/Frequency, Modbus RS485
• Approvals: SIL 2, ATEX, IECEx, cCSAus, PED

Applications

• Saturated and superheated steam measurement
• Boiler feed and condensate return
• Compressed air and natural gas
• Utility and process steam lines
