Home /Products/Industrial Instruments/Endress Hauser FMI51 Capacitance Level Measurement Liquicap Transmitter E+H FMI51 for Food Water Treatment

Endress Hauser FMI51 Capacitance Level Measurement Liquicap Transmitter E+H FMI51 for Food Water Treatment

1
MOQ
US $2000.00 - 2450.00/ Unit
Price
Endress Hauser FMI51 Capacitance Level Measurement Liquicap Transmitter E+H FMI51 for Food Water Treatment
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Accuracy: ±0.1%
Material: PTFE, PFA, 316L
Process Temperature: -80°C...200°C,-112°F...392°F
Process Connection: G1/2, G 3/4, G 1, G1 1/2 /NPT 1/2, NPT 3/4, NPT 1", NPT1 1/2
Process Pressure/max. Overpressure Limit: Vacuum ... 100 Bar(Vaccum ... 1450 Psi)
Communication: 4...20mA HART,PFM
Highlight:

Endress Hauser FMI51 level transmitter

,

capacitance level measurement transmitter

,

Liquicap transmitter for water treatment
Basic Infomation
Place of Origin: Switzerland
Brand Name: Endress+Hauser
Model Number: FMI51
Payment & Shipping Terms
Packaging Details: Cardboard box/Wooden crate
Delivery Time: 6-8 weeks
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description
Endress+Hauser Liquicap FMI51 Capacitance Level Transmitter
Product Overview

The Liquicap FMI51 is a fully insulated rod probe capacitance level transmitter for continuous level measurement in liquids and bulk solids. It works reliably in conductive or non-conductive media, even with buildup, foam, or changing dielectric constants. Many plants use it in tanks, silos, and hoppers where other technologies struggle with adhesion or variable conditions.

Features
  • Fully PFA or PTFE insulated probe – buildup resistant
  • Active build-up compensation
  • Highest safety with gas-tight feedthrough
  • Simple calibration without level change
  • HART, PROFIBUS PA, FOUNDATION Fieldbus
  • Heartbeat Technology for verification

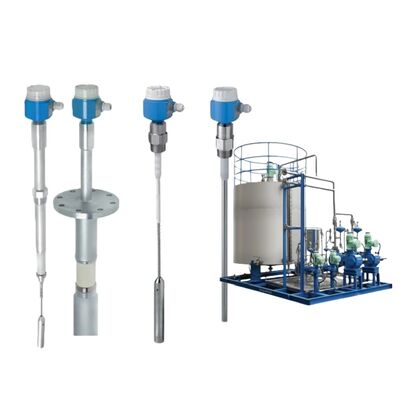

  • Rod or rope probe versions
Technical Specifications
  • Measuring Principle: Capacitance
  • Measuring Range: Rod: up to 4 m; Rope: up to 20 m
  • Process Temperature: –40 to +200 °C (–40 to +392 °F)
  • Process Pressure: Vacuum to 100 bar (1450 psi)
  • Accuracy: ±2 mm (rod), ±10 mm (rope)
  • Probe Material: PFA, PTFE, 316L stainless steel
  • Output: 4–20 mA HART, PROFIBUS PA, FOUNDATION Fieldbus
  • Approvals: ATEX, IECEx, FM, CSA, WHG, SIL 2/3
Applications
  • Liquid level in storage tanks
  • Interface measurement (oil/water)
  • Bulk solids in silos (grain, cement, plastic pellets)
  • High-temperature or high-pressure vessels
  • Adhesive or foamy media
FAQ

Q: Does buildup affect measurement?

A: Active build-up compensation minimizes influence.

Q: Suitable for interface?

A: Yes – excellent for oil/water or similar layers.
