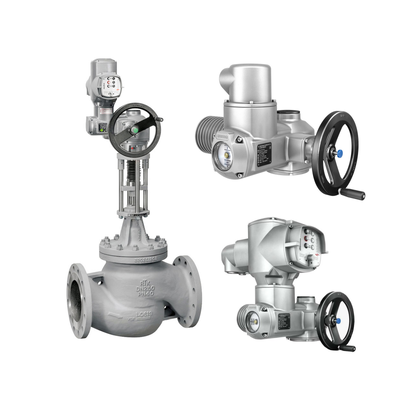

Chinese Butterfly Ball Globe Valve Body AUMA SQ Part-turn SA Multi-turn Electric Control Valve Actuators

1
MOQ
2000 dollars
Price
Chinese Butterfly Ball Globe Valve Body AUMA SQ Part-turn SA Multi-turn Electric Control Valve Actuators
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Duty Modes: On-off (SQ S2), Modulating (SQR S4/S5)
Torque: 50-2,500 Nm Open-close, 75-1,200 Nm Modulating
Swing: 75°-105° Std; Up To 135° Options
Time For 90°: 4-100 S (SQ), 8-100 S (SQR)
Temp Range: -25°C To +70/60°C
Power: 100-690 V AC; 24 V DC Option
Highlight:

Chinese butterfly ball globe valve

,

AUMA SQ electric control valve

,

multi-turn electric valve actuator
Basic Infomation
Place of Origin: China
Brand Name: Auma
Model Number: SQ/SA
Document: ba_sqr2_05_14_ac2_nonin_par...en.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 65 days
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description
Product Overview

Meet AUMA's SQ/SQR 05.2-14.2 part-turn actuators – user-friendly devices for turning valves 90° like butterflies or balls in industrial setups. Paired with the smart AUMATIC AC 01.2 controls and MWG unit, they connect via parallel or fieldbus (Profibus, Modbus, Foundation). Non-intrusive means no cover removal for settings, perfect for safe, quick adjustments. Option for dusty Ex zone 22 keeps operations smooth in tough spots.

Key Features
  • Easy Setup: Non-intrusive limit/torque setting via display/buttons; Bluetooth app for PC/smartphone config.
  • Smart Alerts: LC display shows status, faults; logs runtime/starts for maintenance planning.
  • Safety First: Emergency stop/button, overload protection, auto phase correction; programmable behaviors.
  • Versatile Signals: Multiple contacts for feedback, analogue outputs for position/torque monitoring.
  • Manual Backup: Handwheel for emergencies, lockable; signal if manual mode active.
  • Tough Build: Waterproof IP68, vibration-proof, corrosion-resistant coatings for harsh environments.
  • Power Options: Flexible voltages, external supply for controls; low consumption for efficiency.
Technical Specifications
Parameter Details
Duty Open-close (S2 15/30 min), Modulating (S4 25/50%, S5 25%)
Torque/Swing Custom per plate; 75-105° adjustable
Motor/Protection AC asynchronous, F/H class, thermoswitches/PTC
Power 100-690V AC, 24V DC option; ±10/30% tolerance
Inputs/Outputs 24-115V, 7-15 mA inputs; 1-5A contacts, 20 mA analogue
Environment -25 to +70/60°C, 100% RH, IP68, 1g vibration
Altitude/Pollution ≤2000m, degree 4
Corrosion KS/KX/KX-G options
Feedback MWG for precise limit/torque
Accessories Separate mounting bracket, protection covers
Applications

Great for valve control in water/power plants, chemicals, wastewater – anywhere needing reliable 90° turns. Handles moderate to extreme atmospheres; Ex zone 22 for dust safety. Avoid for lifts, trucks, or gas explosions.

Frequently Asked Questions
  • How to start commissioning? Check safety instructions, mount per EN ISO 5211, connect electrically, set limits non-intrusively.
  • What if vibration is high? Built for 1g; suitable for plants but consult for extreme cases.
  • Can I use remotely? Yes, fieldbus/parallel; enable local via input for on-site control.
  • How to monitor temperature? Built-in sensors signal warnings; options for gear/motor.
  • What for submersion? IP68 allows 8m/96h; not for modulating during immersion.
Contact Us

Phone/WeChat/WhatsApp: +8613916209596

Email: svetama@gbsxj.com

Related Products
  • SA/SAR Multi-Turn Actuators: For gate/globe valves requiring full rotations.
  • AUMATIC ACEXC Controls: Explosion-proof for gas hazardous areas.
  • GK Gearboxes: Combine with SQ/SQR for higher torque applications.
  • AUMA CDT Software: For wireless commissioning and diagnostics.
  • Wall Bracket Accessories: For separate controls mounting in extreme conditions.
