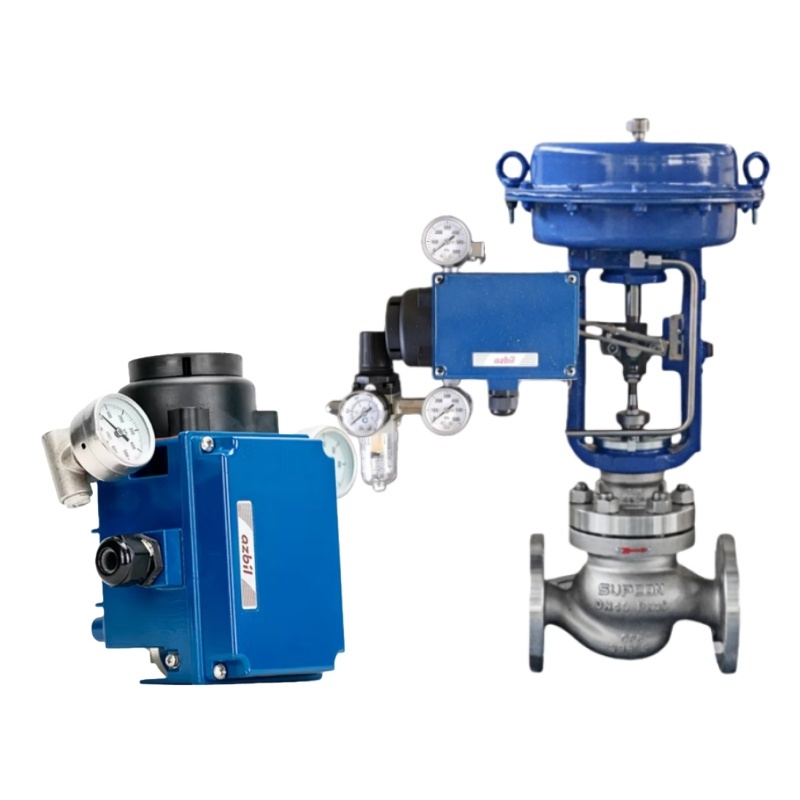

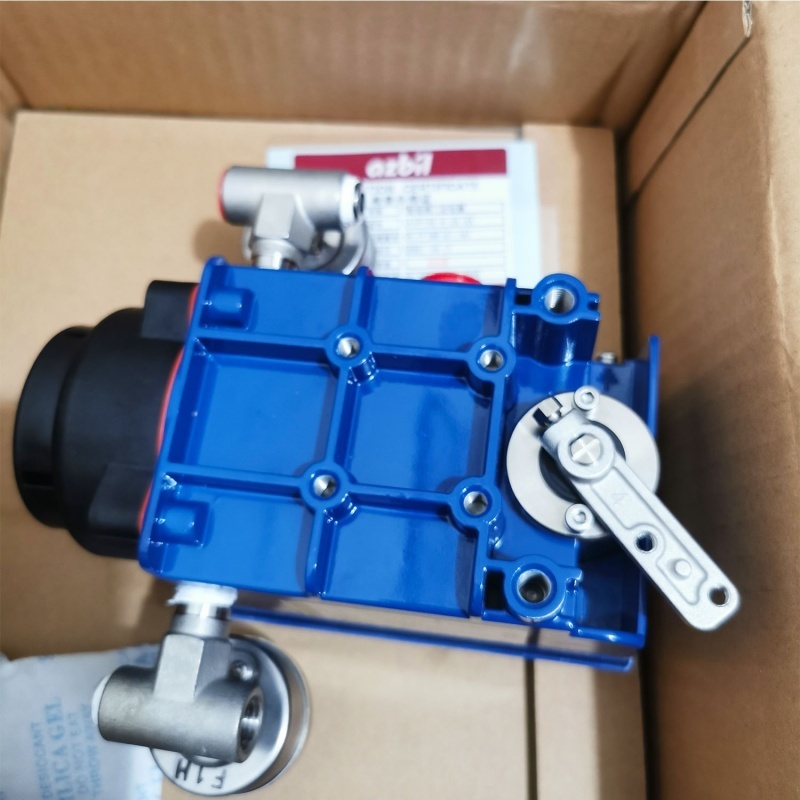

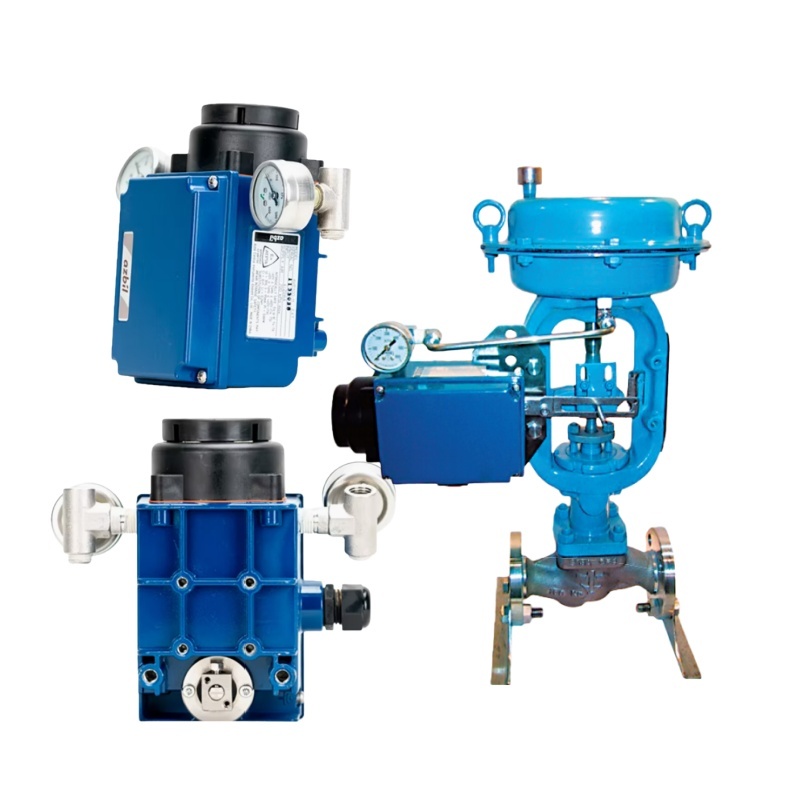

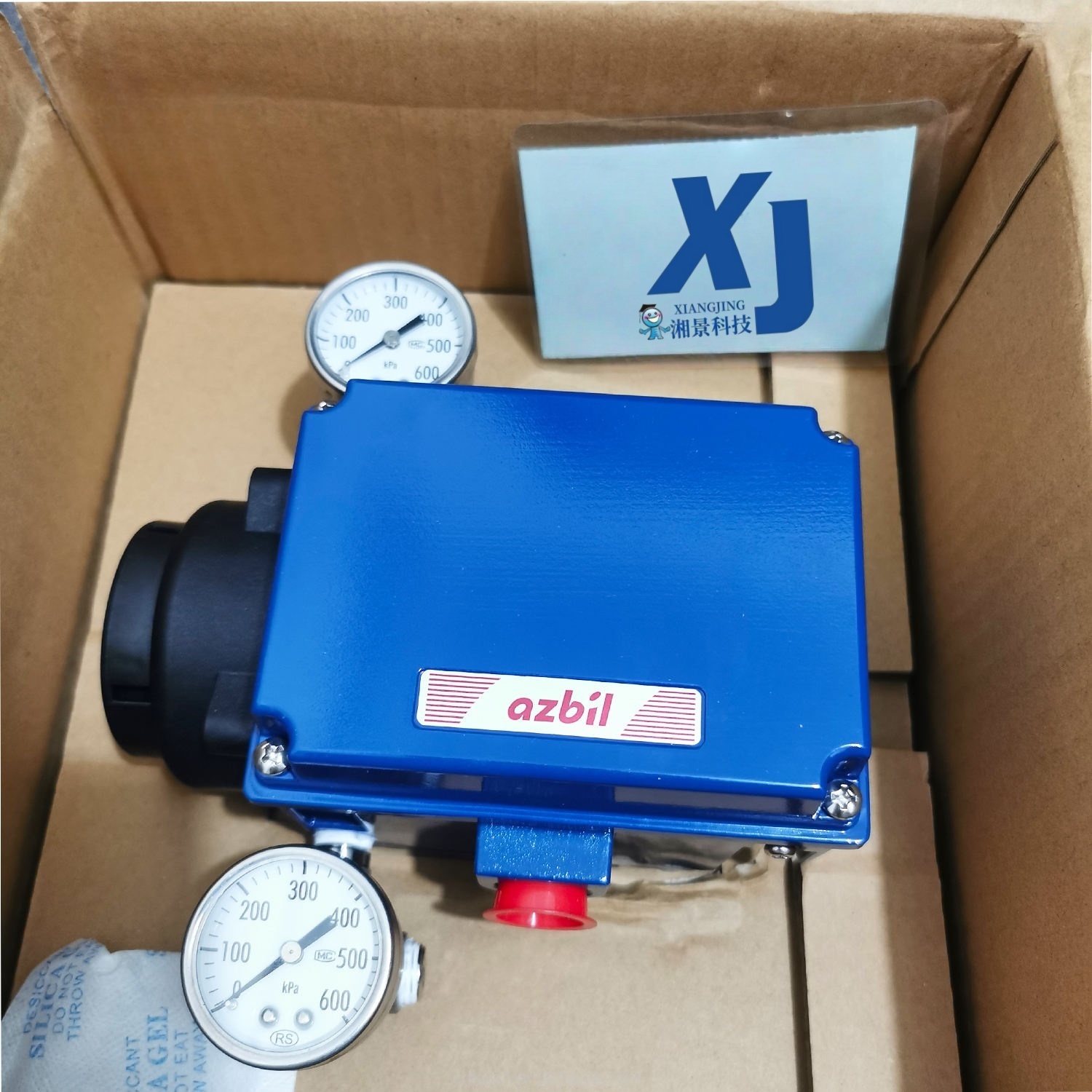

Azbil AVP102-H Valve Controller HART Communication AVP100 Series Digital Smart Valve Positioners

The Azbil AVP102 is a compact, smart electro-pneumatic positioner for pneumatic actuators. It offers precise valve control with 4-20 mA input and HART communication. The positioner is known for its easy one-button auto-setup, low air use, and robust performance in industrial environments.

• One-button auto-setup (zero, span, tuning)
• HART 7 digital communication
• Low steady-state air consumption
• Local LCD display with pushbutton interface
• Fail-safe and tight-shut functions
• Vibration and shock resistant
• Non-contact feedback sensor

• Input Signal: 4-20 mA DC
• Communication: HART 7
• Supply Pressure: 0.14–0.7 MPa (20–100 psi)
• Air Consumption: 0.2 NL/min or less
• Stroke: Linear 10–150 mm, rotary 60–100°
• Accuracy: Linearity ±0.5% F.S., Hysteresis ±0.5% F.S.
• Ambient Temperature: –40 to +80 °C
• Enclosure: IP66 / NEMA 4X
• Housing: Aluminum die-cast

• Process control valves in refineries
• Chemical and petrochemical plants
• Power and utility systems
• General industrial automation
