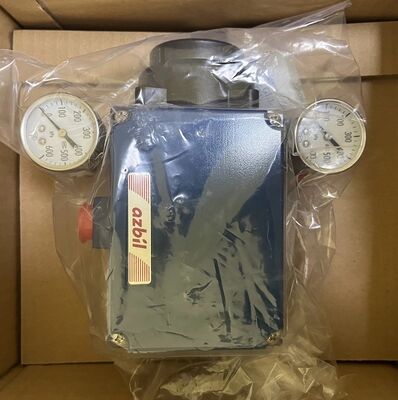

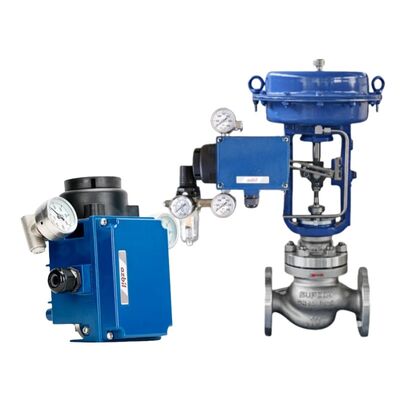

Process Control Actuator Azbil AVP100 AVP102 Intelligent Digital Valve Positioner with HART

1
MOQ
US $588.00 - 1000.00/ Set
Price
Process Control Actuator Azbil AVP100 AVP102 Intelligent Digital Valve Positioner with HART
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Input Resistance: 400 Wmax/20 MA
Approval Bodies: Intrinsically Safe CCC
Weight: 1.7kg(3.7 Lbs)
Vibration Characteristics2G At 5 To 400 Hz: 2G At 5 To 400 Hz
Input: 4 To 20 MA HART Communication
Enclisure: NEMA 4X Equivalent ,IP66 Equivalent
Air Supply Pressure: 130 To 700 KPa (20 To 100 Psl)
Ambient Temperature: -40℃ To +80℃(-40°F To +175°F)
Basic Infomation
Place of Origin: Japan
Brand Name: Azbil
Model Number: APV102
Payment & Shipping Terms
Packaging Details: Cardboard box/Wooden crate
Delivery Time: 6~8 weeks
Payment Terms: T/T
Supply Ability: 1000 sets per year
Product Description
Product Overview

The Azbil AVP102 is a digital smart positioner for pneumatic actuators in process control. It receives 4-20 mA signals, communicates via HART, and provides accurate valve positioning with built-in diagnostics. It is a cost-effective, reliable choice for plants that want smart control without complexity.

Features
  • One-button auto-setup and tuning
  • HART 7 protocol support
  • Very low air consumption
  • Local display and pushbutton interface
  • Fail-safe and tight-shut capability
  • Vibration-resistant construction
  • Simple mounting on linear/rotary actuators
Technical Specifications
  • Input Signal: 4-20 mA DC
  • Communication: HART 7
  • Supply Pressure: 0.14–0.7 MPa (20–100 psi)
  • Air Consumption: 0.2 NL/min or less
  • Stroke Range: Linear 10–150 mm, rotary 60–100°
  • Accuracy: Linearity ±0.5% F.S., Hysteresis ±0.5% F.S.
  • Ambient Temperature: –40 to +80 °C
  • Enclosure: IP66 / NEMA 4X
Applications
  • Pneumatic control valves in process industries
  • Chemical and oil & gas plants
  • Power plant control loops
  • General throttling applications
FAQ

Q: Does it support HART?

A: Yes – HART 7 communication.

Q: How easy is setup?

A: One-button auto-setup handles most cases.
