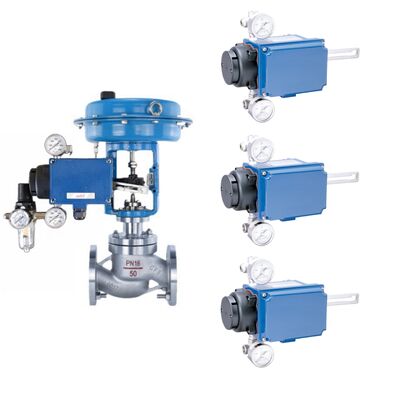

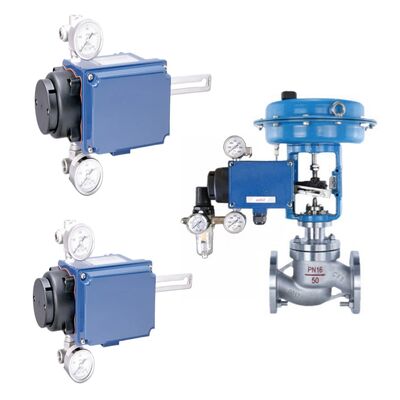

New High Quality Azbil 100 Series Model AVP100 102 Smart Valve Positioner Valve Controller

The Azbil Smart Valve Positioner 100 Series (Models AVP100 and AVP102) is an intelligent current-pneumatic device designed to receive 4-20 mA DC signals from controllers and precisely control pneumatic valves. The AVP100 is an analog model without travel transmission, while the AVP102 includes HART communication protocol for advanced diagnostics and configuration. This positioner allows electrical adjustments for the relationship between input signal and valve position, supporting split-range and custom settings. It is suitable for single or double-acting actuators (with reversing relay for double-acting), linear or rotary motion, and is built for harsh environments with certifications for hazardous areas. Manufactured by Azbil Control Instruments (Dalian) Co., Ltd., it enhances valve performance and plant efficiency through auto-setup and self-diagnostics.

• Auto-Setup: Automatic configuration and zero/span adjustment via external switch, ideal for hazardous areas without tools.
• Flexible Configuration: Electrical adjustments for input range, flow characteristics (linear, EQ%, quick opening, custom), and action (direct/reverse) without hardware changes.
• HART Communication (AVP102): Enables remote monitoring, diagnostics, and settings using HART communicator or software like CFS100.
• Maintenance Tools: Auto/Manual switch for on-site checks (single-acting), separate electrical/air circuits for easy servicing, EPM balance adjustment.
• Diagnostics: Self-diagnostics for errors, with HART for detailed status; lightning protection and surge absorber for reliability.
• Double-Acting Support: Reversing relay for springless actuators, providing balanced pressure output.
• Safety and Durability: Protective grounding, watertight IP66/NEMA 4X enclosure, vibration resistance up to 20 m/s² (5-400 Hz).

The AVP100/102 is suited for industrial process control in oil & gas, chemicals, pharmaceuticals, and water treatment. It works with diaphragm, piston, or rotary actuators for throttling or on-off services in hazardous environments. Ideal for systems requiring precise position control, remote monitoring, and easy maintenance, such as in control loops with split-range setups or custom flow characteristics.

• SVP does not operate (no output air pressure)? Check feedback lever angle (within ±20°), air leaks, electrical input signals, Auto/Manual switch in Auto, clean flapper and filter, perform self-diagnostics.
• Absence of full stroke or slow response? Verify zero/span adjustment, clean filter/flapper, ensure EPM drive signal is 50 ±25% duty.
• Hunting or overshoot? Adjust hysteresis from LIGHT to MEDIUM/HEAVY, set actuator size to smaller PARAM number, check feedback lever angle.
• No communication with software/HART? Check input signal wiring (min 4 mA required), refer to wiring method.
• LO IIN error? Input signal too low (<3.8 mA); provide at least 3.85 mA.
