KOSO 501G 550G Cage Guided Control Valves Globe Valve for Power Plant Petrochemical Refinery

1
MOQ
2000-3000$ per set
Price
KOSO 501G 550G Cage Guided Control Valves Globe Valve for Power Plant Petrochemical Refinery
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Type: Unbalance Plug Type
Body Size: 1/2"--8" (15A~200A DN15~DN200)
Plug Form: P-port Single Seated, Q-port Single Seated, Linear, On-off
Body Ratings: JIS 10K,20K,30K,40K; ANSI Class 150,300,600; PN 16,40,63,100
Body & Bonnet Material: SCPH21/WC6, SCPH32/WC9, Etc. Alloy Steels
Bonnet Type (Standard): -5~+230℃
Gasket: Grooved Metal Gasket (Soft Steel, Stainless Steel Or Alloy Steels)
Painting Color: Munsel N6 (Epoxy Resin); Stainless Steel Body: No Coating
Highlight:

KOSO 501G globe valve for power plant

,

550G cage guided control valve

,

pneumatic control valve for petrochemical
Basic Infomation
Place of Origin: Japan
Brand Name: KOSO
Model Number: 501G,550G
Document: SS-CE-501G-E-2020-9-15.pdf
Payment & Shipping Terms
Packaging Details: Carton/Wooden Case Packaging
Delivery Time: 6-8 weeks
Payment Terms: T/T
Supply Ability: 800 sets per year
Product Description

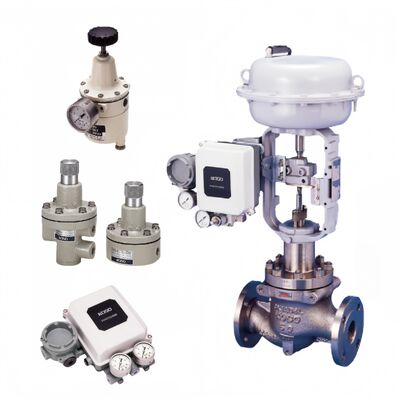

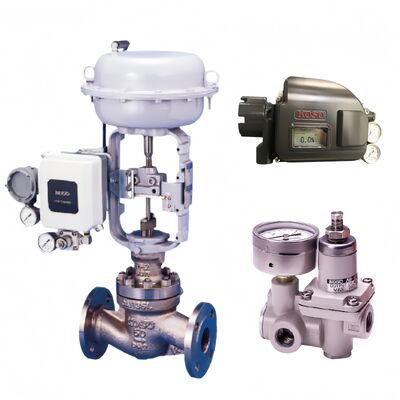

KOSO 501G 550G Cage Guided Globe Control Valves
Product Overview

The KOSO 501G and 550G are high-performance cage guided globe control valves, engineered to deliver precise fluid regulation for industrial applications. Built on KOSO’s decades of automation expertise, these valves feature a pressure-balanced trim design, ensuring stable operation even under harsh conditions like high pressure, temperature fluctuations, and cavitation risks. Ideal for critical process control, they combine durability, efficiency, and adaptability to meet the rigorous demands of modern industrial systems.

Features
  • Cage guided structure enhances dynamic stability and reduces wear for long-term reliability.
  • Pressure-balanced trim minimizes operating force, enabling smooth and precise flow control.
  • 550G’s multi-hole cage design achieves low noise and anti-cavitation performance.
  • Interchangeable parts between 501G and 550G simplify maintenance and inventory management.
  • Wide range of body and trim materials resists corrosion and harsh media.
  • Broad size and pressure rating options fit diverse pipeline and process requirements.
  • Compatible with various actuators (pneumatic, electronic, electro-hydraulic) for flexible automation integration.
Technical Specifications
Parameter Details
Valve Models 501G, 550G
Valve Type Cage Guided Globe Valve
Body Size 1"(25A) ~ 18"(450A)
Pressure Rating ANSI Class 150~2500, JIS 10K~63K
Fluid Temperature -196~+538°C
Connections Flanged (RF, RTJ), Butt Weld (BW), Socket Weld (SW)
Body Materials SCPH2/WCB, SCPH21/WC6, SCPL1/LCB, SCS13A/CF8, SCS14A/CF8M
Trim Materials SUS410/410SS, SUS630/SCS24, SUS316/CF8M
Flow Characteristics Linear, Modified Linear, Modified Equal Percentage
Rangeability 50:1 ~ 20:1
Leakage Class Soft Seat: ANSI Class VI; Metal Seat: ANSI Class IV, V or MSS-SP-61
Applications
  • Petrochemical and chemical processing (distillation, reaction, blending)
  • Power generation (steam and feedwater control)
  • Oil and gas production and refining
  • Pharmaceutical and food processing (sanitary-compatible configurations)
  • Water treatment and wastewater management
  • HVAC systems in large industrial facilities
  • High-pressure/high-temperature fluid transfer lines
FAQ

What is the difference between 501G and 550G?

The 550G features a multi-hole cage for anti-cavitation and low-noise; the 501G uses a standard cage for general service.

Can these valves handle corrosive media?

Yes, with optional corrosion-resistant trim materials (e.g., SUS316, Inconel) for harsh chemicals.

Are they compatible with smart automation systems?

Absolutely, they integrate seamlessly with KOSO’s EP800/SPS2000 smart positioners and industrial control systems.

What is the typical service life?

5+ years under standard operating conditions, with extended life in properly maintained systems.

Do you provide installation support?

We offer pre-sales consultation, installation guidelines, and after-sales technical support globally.

Contact Us

For inquiries, quotes, or technical assistance, reach us via:

Wechat/What's App/Phone Number: +86 13472860702

Our team is dedicated to providing tailored solutions and prompt responses to meet your industrial control needs.

Related Products
  • KOSO 3000 Series Electric/Electro-Hydraulic Actuators

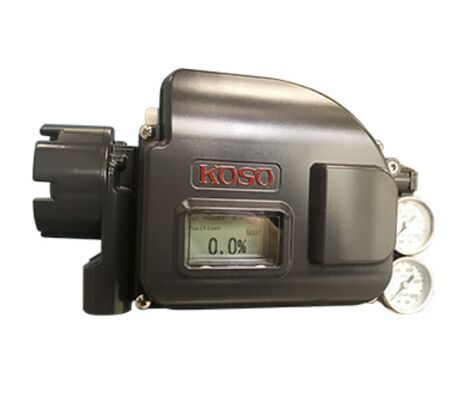

  • KOSO EP800 Electro-Pneumatic Positioner
  • KOSO 500 Series Severe Service Globe Valves

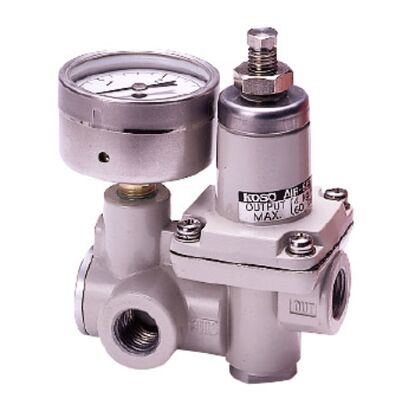

  • KOSO PRF300/400 Filter-Regulator Accessories
  • KOSO HCS400/500 Current/Voltage Simulators
