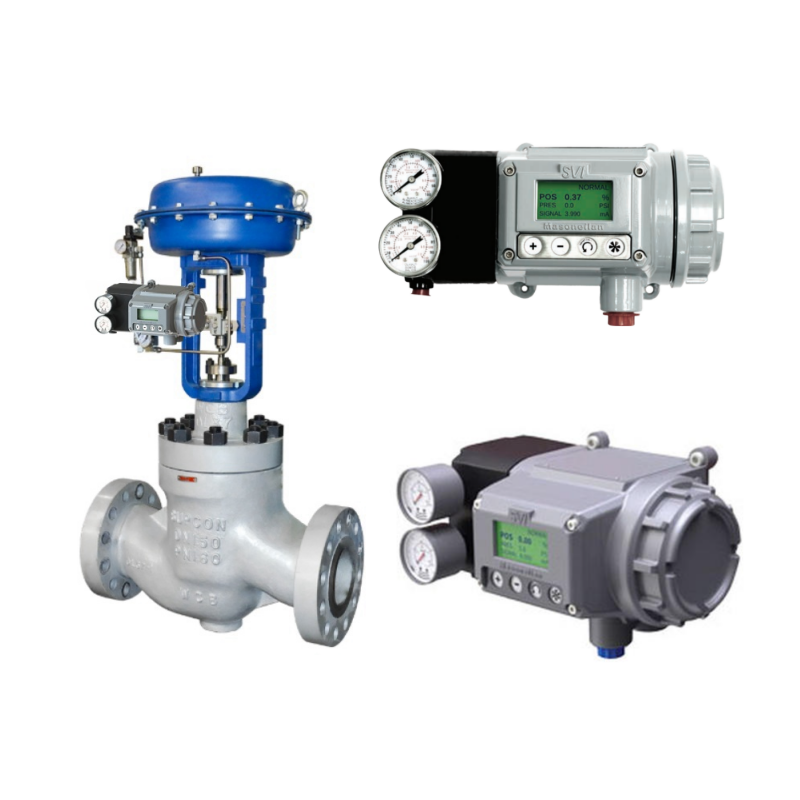

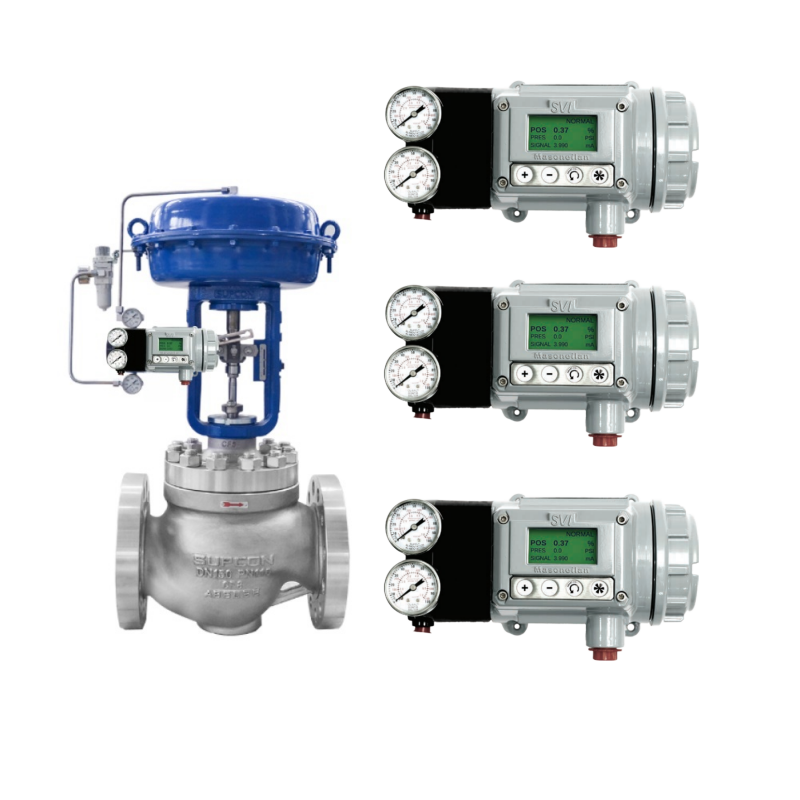

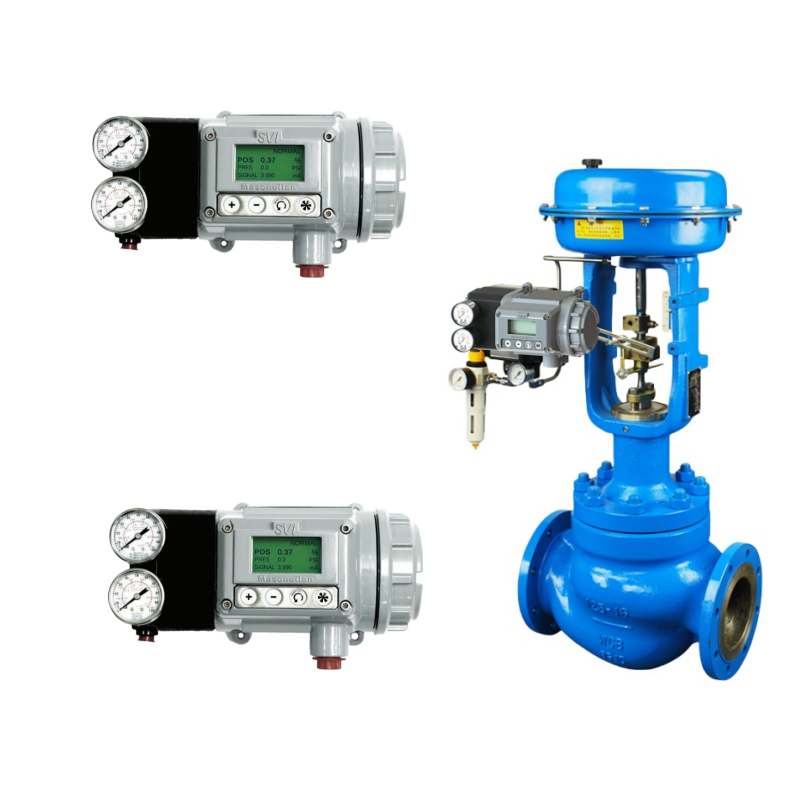

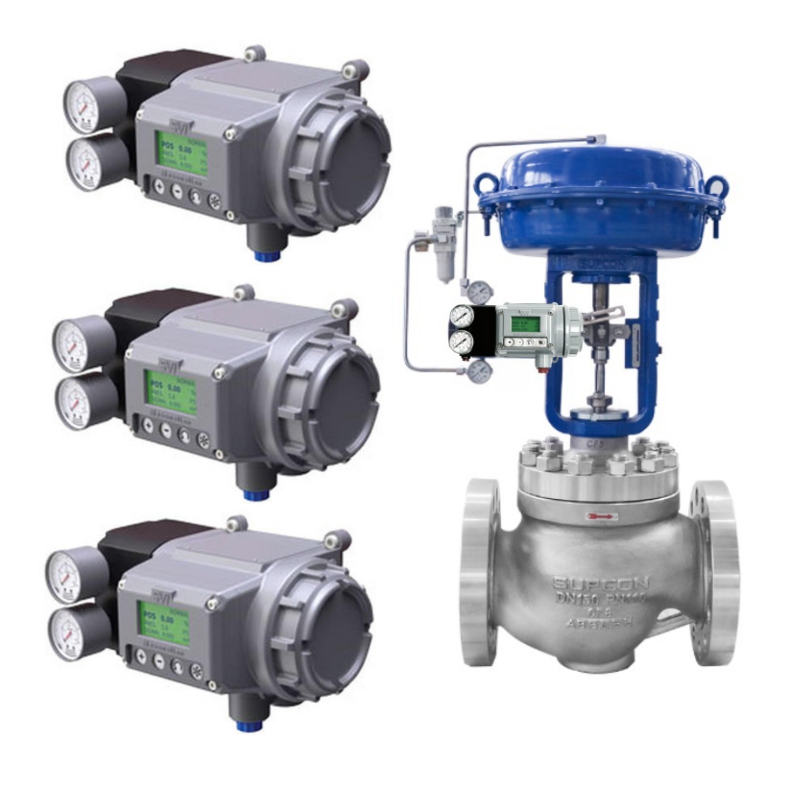

Accurate Responsive and Reliable Masoneilan SVI3 Intelligent Digital Valve Positioner Valve Controller

Masoneilan SVI3 is an advanced HART digital valve positioner with microprocessor control for single/double-acting pneumatic actuators. It features a plug-in electronics module for easy upgrades and supports diagnostic levels from standard (pressure sensing) to online (real-time friction monitoring). The device ensures precise positioning with low power requirements (9V at 20 mA) and integrates with DCS via DTM/EDD. Built for explosion-proof environments, it includes flameproof conduit fittings and supports SIL-capable safety functions per IEC 61508.

• Diagnostics Upgradeable: Field-upgradable from standard to advanced/online via firmware; includes alerts for faults like "TuneERR" or "Std. Diagnostics Failed".
• HART Compliance: Meets Physical Layer Specification with impedance constraints; supports burst mode and polling addresses for split-range.
• Pneumatic System: High-flow capacity (39-102 scfm); low consumption (0.28-0.35 scfm); exhaust venting for natural gas (2.8 SLPM at 30 psi).
• Safety Integration: PFDavg calculations for SIS; terms like SFF, HFT, and Adu for reliability; deviation from permissible conditions triggers "Out of Specification" alert.
• Configuration Flexibility: Custom characteristics (16 points); aggressiveness adjustment (0 for no boosters); split-range with multiple outputs.
• Electrical Options: Solid-state switches (1A max, 125mA for IS); position retransmit with 0.200 mA leakage.
• Environmental Specs: -50 to 85°C operation; EMC compliant; marine stainless steel option.

Designed for petrochemical, oil & gas, and marine environments requiring high reliability. Supports split-range installations with polling addresses and isolators; suitable for SIS with safety function instructions and PFDavg values. Ideal for control valves in aggressive atmospheres, with online diagnostics for continuous monitoring in process-critical systems.

• How to troubleshoot "Ctrl Diff Error"? Check actuator blockage, air supply, control parameters, or IP module; refer to device status table.
• What if autotune fails with TuneERR? Verify air leaks, current input, or high friction; manual tuning may be needed (see autotune troubleshooting).
• How to configure for split range? Use DTM for multiple outputs; ensure compliance voltage accounts for drops; set polling addresses.
• What causes "No Emergency Mode"? Lack of fallback during faults; check firmware and settings.
• How to handle "Pot Problem"? Verify position sensor, cable, or mounting; ensure flat area alignment.
