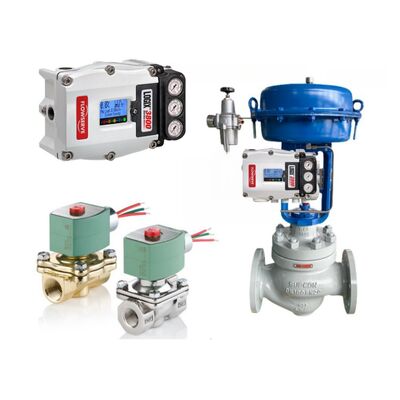

High Quality Flowserve Logix 3800 Digital Valve Positioner Smart Control with ASCO Solenoid Valves

1
MOQ
2450 dollars
Price
High Quality Flowserve Logix 3800 Digital Valve Positioner Smart Control with ASCO Solenoid Valves
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Power Supply: Two-wire, 4-20 MA ,10.0 VDC Plus Line Losses
Input Signal Range: 4 - 20 MA
Compliance Voltage: 10 To 32 VDC @ 20 MA
Effective Resistance: 500 Ω @ 20 MA Typical
Communications: HART Protocol (Logix 382X- Only)
Operating Temperature Range: -55 To 85°C (-67 To 185°F)
Air Consumption Low Bleed Relay: 0.075 SCFM @ 60 PSI Cv 0.002
Highlight:

Flowserve Logix 3800 digital valve positioner

,

ASCO solenoid valves smart control

,

pneumatic control valves with warranty
Basic Infomation
Place of Origin: China
Brand Name: Flowserve
Model Number: 3800
Document: Valtek-Logix-3800MD-Positio...OM.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 65 days
Payment Terms: T/T
Supply Ability: 600 units per year
Product Description

Product Overview

The Flowserve Logix™ 3800 Digital Positioner simplifies commissioning while delivering high-precision control and powerful diagnostics. With its innovative one-button QUICK-CAL feature and intuitive user interface, the Logix 3800 gets valves online faster and keeps them performing reliably in any process environment.

Key Features

  • One-button QUICK-CAL automatically sets zero, span, and gain in under 60 seconds.
  • Intuitive LCD display with push-button keypad and LED status indicators.
  • Selectable gain switch for fine-tuning response without tools.
  • DIP switches for quick configuration of air action, actuator type, and characterization.
  • Position-insensitive mounting with direct or remote options.
  • Advanced diagnostics stored in NVRAM for offline review.

Technical Specifications

Parameter Value
Resolution < 0.25 %
Linearity ±1.25 %
Hysteresis ≤ 1.0 %
Air Capacity 18 SCFM @ 60 psi (standard & low-bleed)
Air Consumption 0.3 SCFM (standard) / 0.075 SCFM (low-bleed)
Operating Temperature -55 °C to +85 °C
Communication Protocols 4-20 mA, HART, FOUNDATION Fieldbus
Protection IP-66, impact and vibration resistant

Applications

  • New plant startups requiring fast commissioning.
  • Retrofit projects on existing valves and actuators.
  • Chemical plants with frequent valve maintenance.
  • Water and wastewater treatment facilities.
  • Any application needing quick return-to-service after calibration.

Frequently Asked Questions

  • How do I calibrate? Press and hold the QUICK-CAL button for 3 seconds.
  • Can I change characterization? Yes—DIP switches or menu for linear/equal-percentage curves.
  • Is remote mounting possible? Yes—optional remote mount module.
  • Does it support FOUNDATION Fieldbus? Yes—Logix 3840 model with FF protocol.
  • How do I view diagnostics? Through LCD menu, HART/FF handheld, or DTM software.
