China NEWAY CTD Series Three Way Control Valve AZBIL AVP200 Positioner Oil Gas Industry

The China NEWAY CTD Series Three Way Control Valve, integrated with AZBIL AVP200 Valve Positioner, is a high-precision industrial control device designed for fluid diversion, mixing, and temperature control. It combines stable flow regulation with accurate positioning, widely applied in industrial processes requiring flexible fluid control in power, chemical, and petrochemical industries.

• Three way design for efficient fluid diversion and mixing

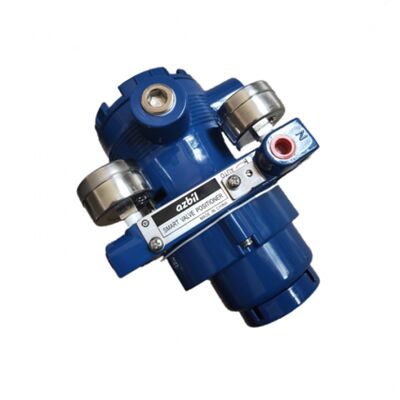

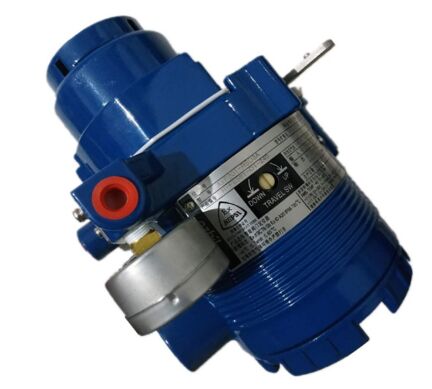

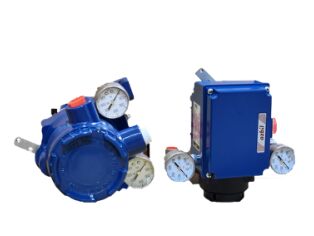

• AZBIL AVP200 positioner ensures precise positioning and fast response
• Compact structure, saving installation space and easy integration
• Durable body and trim materials for corrosion and high-temperature resistance
• Linear flow characteristic for stable and accurate control
• Low operating torque and easy operation, maintenance and calibration
• Wide rangeability to adapt to different flow demand scenarios
• Excellent sealing performance to prevent leakage and ensure safety
• Compatible with various industrial control systems for flexibility
• Long service life and reliable performance in harsh working conditions

• Brand: NEWAY
• Series: CTD Series
• Valve Type: Three Way Control Valve
• Positioner Model: AZBIL AVP200
• Valve Size: 1" ~ 22"
• Pressure Rating: ANSI Class 150 ~ 600
• Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
• Trim Material: Stainless Steel, Alloy Steel, Duplex Steel
• Temperature Range: -196°C ~ 538°C
• Flow Characteristic: Linear
• Rangeability: 50:1
• Leakage Class: FCI 70-2 IV, V, VI (Soft Seal)
• Positioner Input Signal: 4-20mA DC
• Air Supply: 1.4 ~ 7.0 bar (20 ~ 100 psi)
• Connection: ISA S75.03 (ANSI Class 150~600)

This integrated three way control valve is widely used in industrial fields requiring fluid diversion, mixing and temperature control, including:

• Thermal power plants and boiler temperature control systems
• Petrochemical and chemical processing plants
• Oil and gas refining and pipeline systems
• Metallurgical and steel manufacturing industry
• Pharmaceutical and food processing industry
• Water treatment and heating ventilation systems
• Industrial process control systems requiring fluid mixing or diversion

• Q: What is the main function of this three way control valve? A: It is used for fluid diversion, mixing and temperature control in industrial processes.
• Q: What advantage does AZBIL AVP200 positioner bring? A: It provides accurate valve positioning and quick response for stable control.
• Q: What temperature range can this valve adapt to? A: It operates stably from -196°C to 538°C.
• Q: What material options are available for the valve body? A: Carbon steel, stainless steel, alloy steel and duplex steel.
• Q: Is the valve suitable for high-pressure working conditions? A: Yes, it supports ANSI Class 150 ~ 600 pressure rating.
