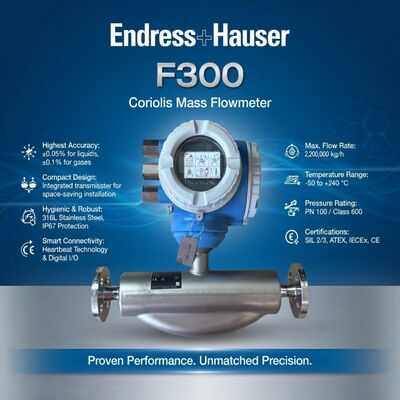

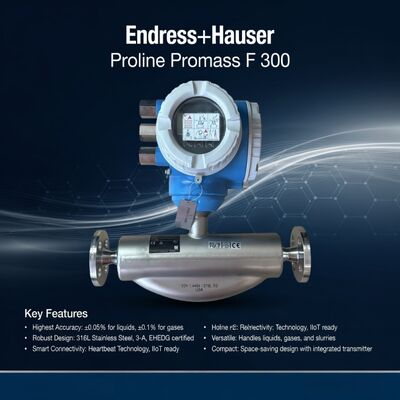

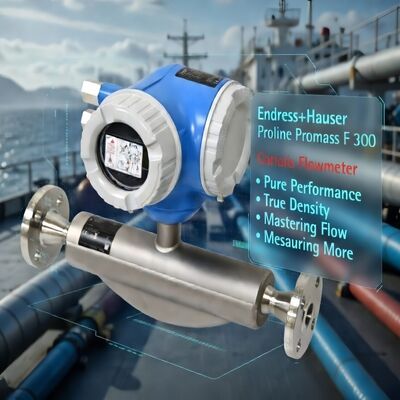

Industrial Flow Measurement E+H Endress Hauser Promass F300 Mass Coriolis Flow Meter

Promass F 300 is a high-end Coriolis mass flowmeter with Heartbeat Technology for continuous self-monitoring and traceable verification. It measures mass flow, volume flow, density and temperature simultaneously with very high accuracy. The device is especially popular in custody transfer, hygienic and high-precision process applications.

• Accuracy Mass Flow: ±0.10% (standard), ±0.05% (option)
• Density Accuracy: ±0.5 g/l (standard), ±0.2 g/l (option)
• Temperature Range: –50 to +240 °C
• Max Pressure: 100 bar
• Line Sizes: DN8 – DN250 (3/8" – 10")
• Output Options: HART, PROFIBUS PA, FOUNDATION Fieldbus, Modbus
• Heartbeat Technology: Verification & monitoring
• Approvals: Custody transfer (OIML R117, MID), SIL 2/3, hygienic (EHEDG, 3-A)

• Custody transfer of hydrocarbons
• Chemical batching & blending
• Food & beverage dosing
• Pharmaceutical production
• High-accuracy utility measurement

• Problem: Entrained gas affecting accuracy → Solution: Gas Bubble Handling function
• Problem: Need for periodic calibration → Solution: Heartbeat verification traceable to ISO standards
• Problem: High viscosity media → Solution: Optimized tube design

• Promass 83F / Promass F 200
• Older Promass series

• Authorized distributor with factory support
• Complete documentation & calibration
• Fast delivery & local stock
• After-sales service & training

• Standard models 6–8 weeks
• Hygienic & special versions 6–10 weeks

Please provide:

• Fluid type
• Flow range (min–max)
• Process connection size/type
• Temperature & pressure
• Special approvals needed
