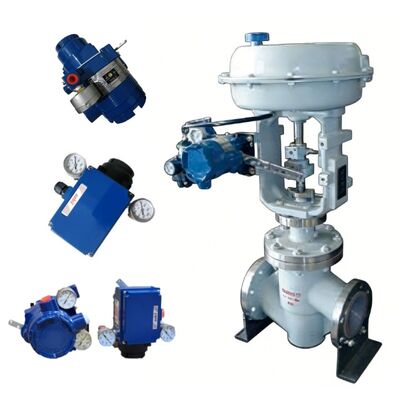

NEWAY CFS Series Lined Control Valve AZBIL AVP300 Positioner Chemical Petrochemical Thermal Power Industry

The NEWAY CFS Series Lined Control Valve, integrated with AZBIL AVP300 Valve Positioner, is a specialized industrial control device designed for corrosive fluid control. It features high-quality lining materials to resist harsh media, paired with the precise positioning of AZBIL AVP300, making it ideal for chemical, petrochemical, and other industries requiring corrosion resistance and stable flow regulation.

• High-performance lining (F46/PFA) ensures excellent corrosion resistance
• AZBIL AVP300 positioner provides accurate positioning and rapid response
• Compact structure, saving installation space and easy integration
• Double seal design (bellows + packing) prevents leakage and ensures safety
• Stable flow control with optional linear or equal percentage characteristics
• Low operating torque, easy operation, calibration and maintenance
• Wide adaptability to various corrosive fluids and working conditions
• Durable body and trim materials extend service life and reduce costs
• Compatible with mainstream industrial control systems for flexibility
• Reliable performance in high-corrosion, low-to-medium temperature environments

• Brand: NEWAY
• Series: CFS Series
• Valve Type: Lined Control Valve

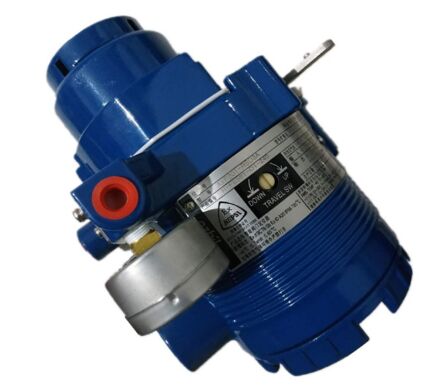

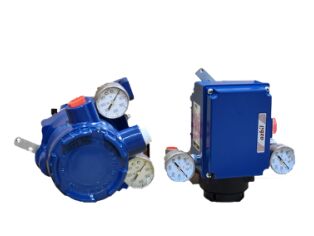

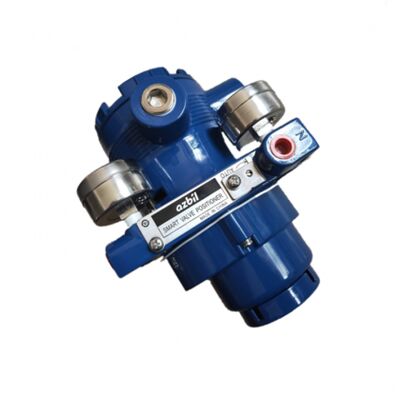

• Positioner Model: AZBIL AVP300
• Valve Size: 3/4" ~ 8"
• Pressure Rating: ANSI Class 150
• Body Material: WCB lined with F46 or PFA
• Trim Material: F316 lined with F46/PFA, Hastelloy
• Bellows Material: PTFE
• Temperature Range: -29°C ~ 120°C
• Flow Characteristics: Equal Percentage, Linear, Quick Open
• Rangeability: 30:1
• Leakage Class: FCI 70-2 IV
• Positioner Input Signal: 4-20mA DC
• Air Supply: 1.4 ~ 7.0 bar (20 ~ 100 psi)

This lined control valve with AZBIL AVP300 positioner is widely used in industries handling corrosive media, including:

• Chemical and petrochemical processing plants
• Oil and gas refining and treatment systems
• Pharmaceutical and food processing industry (corrosive ingredients)
• Water treatment and wastewater purification (acid/alkali media)
• Metallurgical and electroplating industry (corrosive solutions)
• Chemical reagent production and storage systems
• Any industrial process requiring corrosion-resistant fluid control

• Q: What is the main advantage of this lined control valve?
• A: Its F46/PFA lining provides excellent corrosion resistance for harsh media.
• Q: What function does AZBIL AVP300 positioner play?
• A: It ensures accurate valve positioning and fast response for stable flow control.
• Q: What temperature range can this valve adapt to?
• A: It operates stably from -29°C to 120°C.
• Q: What lining materials are available?
• A: F46 and PFA are the main optional lining materials.
• Q: Is the valve suitable for high-pressure working conditions?
• A: It is designed for ANSI Class 150, suitable for low-to-medium pressure scenarios.
