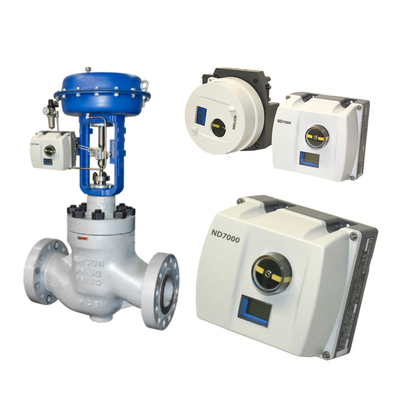

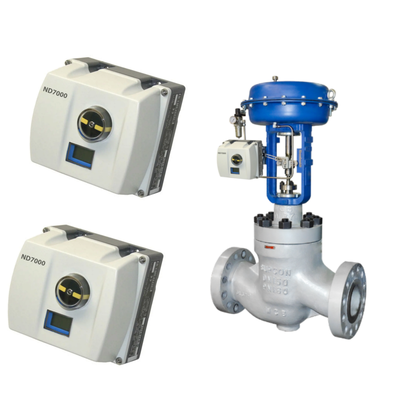

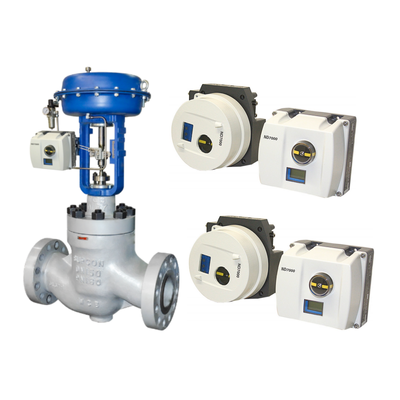

SUPCON LM81 High Pressure Control Valve with Valmet Me-tso Neles ND7000 Series Smart Valve Positioner

1
MOQ
2300 dollars
Price
SUPCON LM81 High Pressure Control Valve with Valmet Me-tso Neles ND7000 Series Smart Valve Positioner
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Temperature Range: -40 ... +85 °C / -40 ... +185 °F, Standard Version
Communication: HART
Protection Class: IP66 / NEMA 4X Enclosure
APPROVALS: Ex Ia / Ex NA: ATEX, IECEx, INMETRO
Highlight:

SUPCON LM81 high pressure control valve

,

Valmet Neles ND7000 smart valve positioner

,

pneumatic control valve with positioner
Basic Infomation
Place of Origin: China
Brand Name: Neles/Valmet
Model Number: ND7000
Document: Neles ND7000.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description

Product Overview

The Neles™ ND7000 is a digital valve controller engineered for all control valve actuators and every industry sector. It combines benchmark performance with a rugged, future-proof design and lifetime support from Valmet, making it a smart long-term investment.

Key Features

  • Benchmark control performance on rotary and linear valves
  • Rugged cover protects against environmental hazards and abuse
  • IEC 61508 compliant up to SIL 2 (TÜV certified)
  • Easy local/remote operation and commissioning
  • Built-in diagnostics: self-diagnostics, deviation trend, counters, offline tests
  • Low energy and air consumption
  • Retrofit capability for existing Neles or third-party valves

Technical Specifications

Loop-powered: 4–20 mA HART (min. 3.6 mA)
Travel range: linear 10–120 mm, rotary 45–95° (measurement up to 110°)
Temperature: –40 °C to +85 °C
Enclosure: IP66 / NEMA 4X (ND7100 aluminum + polymer or ND7200 aluminum + tempered glass)
Supply pressure: 1.4–8 bar; steady-state consumption < 0.6 Nm³/h
Weight: 1.8 kg (ND7100) / 3.4 kg (ND7200)

Applications

Ideal for oil & gas, power, pulp & paper, mining, and chemical plants — suitable for both single- and double-acting actuators in harsh environments.

Frequently Asked Questions

Q: Can it be installed without shutting down the process?

A: Yes — the 1-point calibration feature allows mounting without disturbing the process.

Q: Is it suitable for hazardous areas?

A: Yes — full ATEX, IECEx, INMETRO, and other global Ex certifications available.

Q: How low is air consumption?

A: Less than 0.6 Nm³/h in steady state (spool valves 2 & 3).
