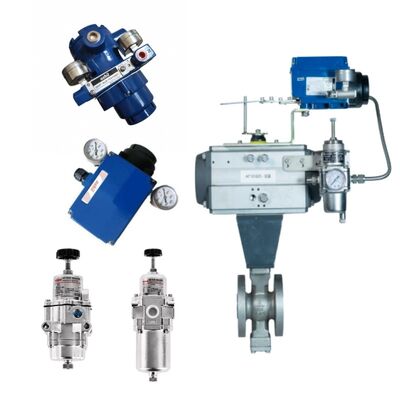

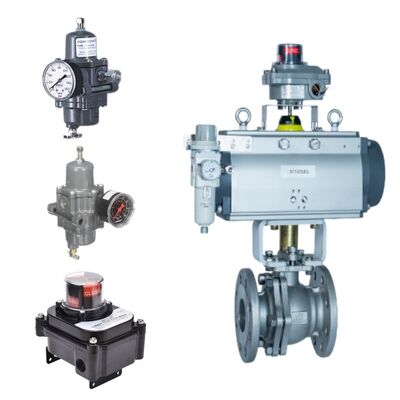

CHUAN YI ZJHR 1000 Soft Seal Floating O Ball Valve
With Fisher Regulator & Rotork SF Limit Switch for Chemical Treatment
Product Overview
The CHUAN YI ZJHR 1000 Soft Seal Floating O Ball Valve Package integrates a high-performance floating ball valve, a Fisher pressure regulator, and a Rotork SF series limit switch. It is engineered for reliable fluid control in chemical treatment processes, delivering stable shut-off, precise pressure regulation, and clear position feedback. This all-in-one solution ensures efficient, safe operation for corrosive and clean fluid media.
Features
- Soft Seal & Floating O Ball Design: Delivers zero-leakage shut-off and stable long-term performance.
- Full Bore Structure: Minimizes flow resistance and ensures unobstructed fluid passage.
- Anti-Extrusion Stem: Downward-mounted stem prevents ejection under pressure for enhanced safety.
- Imported Soft Seat Material: Guarantees reliable sealing and extended service life.
- Low Operation Torque: Enables easy manual or automated operation.
- Integrated Fisher Regulator: Provides precise pressure control for process stability.
- Rotork SF Limit Switch: Delivers clear valve position feedback for automation systems.
- Compact & Lightweight: Simplifies installation and reduces equipment load.
- Wide Compatibility: Supports multiple global flange standards for versatile pipeline integration.
- Broad Operating Range: Handles temperatures from -17°C to +230°C and various pressure classes.
Technical Specifications
| Parameter |
Details |
| Brand |
CHUAN YI |
| Model |
ZJHR 1000 |
| Valve Type |
Soft Seal Floating O Ball Valve |
| Nominal Size |
DN15–DN600 (1/2"–24") |
| Pressure Rating |
PN16–PN110; Class 150–600 |
| Temperature Range |
-17°C ~ +230°C |
| Connection Type |
Flanged |
| Flange Standards |
ASME B16.5, JIS B2201, HG/T, JB/T, GB/T |
| Face Type |
FF, RF, MFM, RJ |
| Seat Material |
Imported soft seal material |
| Stem Design |
Downward anti-extrusion type |
| Accessories |
Fisher pressure regulator, Rotork SF series limit switch |
Applications
This valve package is ideal for:
- Chemical treatment processes
- Industrial water treatment systems
- Corrosive fluid pipeline control
- Petrochemical refining operations
- Pharmaceutical manufacturing
- Food and beverage processing
- General industrial fluid automation
FAQ
1. What media is this valve package suitable for?
It is designed for clean fluids, neutral liquids, and mild corrosive media in chemical treatment applications.
2. Can it be used with high-temperature fluids?
Yes, it operates reliably within a temperature range of -17°C to +230°C.
3. What flange standards are supported?
It complies with ASME B16.5, JIS B2201, and various Chinese industrial standards (HG/T, JB/T, GB/T).
4. Is the package compatible with other actuators?
Yes, the valve can be paired with pneumatic or electric actuators as needed.
5. What is the expected service life?
With proper maintenance, the valve and accessories offer long service life due to high-quality materials and robust design.
