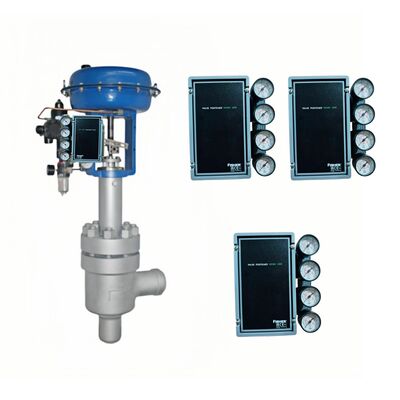

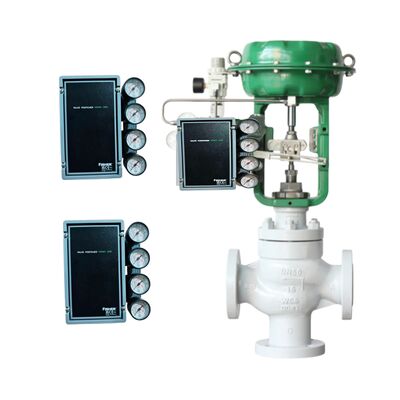

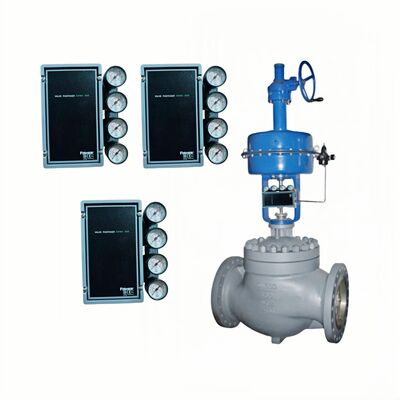

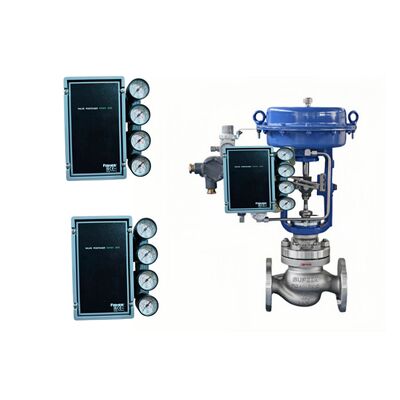

Emerson Fisher 3600 Series 3610J Electro Pneumatic Valve Positioner for Industrial Control Valves

1
MOQ
1000 dollars
Price
Emerson Fisher 3600 Series 3610J Electro Pneumatic Valve Positioner for Industrial Control Valves
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Certifications: ATEX, CUTR, PED
Communication Protocol: 3-15 Or 6-30 Psi, 0.2 -1.0 Or 0.4 -2.0 Bar Pneumatic Signal
Diagnostics: No
Input Signal: Pneumatic
Max Outlet Pressure: 50 Psi
Mounting Type: Actuator Mounted
Operating Temperature: Standard Temperature
Position Control: Modulating
Highlight:

Fisher 3600 Series pneumatic valve positioner

,

Emerson 3610J industrial control valve

,

electro pneumatic positioner with warranty
Basic Infomation
Place of Origin: China
Brand Name: Fisher
Model Number: 3610j
Document: instruction-manual-fisher-3...74.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description
Product Overview

The Fisher 3610J is a single-acting pneumatic rotary valve positioner designed for precise control of diaphragm rotary actuators. It delivers accurate positioning of rotary valves in response to a pneumatic input signal, making it ideal for demanding process control applications where reliability and repeatability are critical.

Key Features
  • Field-reversible action (direct or reverse) without additional parts
  • Characterized cams (A, B, C) for linear, equal-percentage, or quick-opening response
  • Adjustable minor loop gain for optimized dynamic performance
  • Low steady-state air consumption (0.40 normal m³/h at 1.4 bar supply)
  • Simple cam and feedback lever design for easy installation and maintenance
  • Robust construction with weatherproof housing and vent protection
Technical Specifications
Parameter Specification
Input Signal 0.2 to 1.0 bar (3 to 15 psig) standard; adjustable zero/span
Output Signal Pneumatic up to full supply pressure
Supply Pressure Max 10.3 bar (150 psig); min 0.3 bar above actuator requirement
Steady-State Air Consumption 0.40 normal m³/h (15 scfh) at 1.4 bar
Independent Linearity (Direct) ±1.5% of output span
Hysteresis 1.0% of output span
Deadband 0.1% of input span
Operating Temperature -40 to 82°C (-40 to 180°F)
Valve Rotation 60°, 75°, or 90°
Approximate Weight 2.5 kg (5.6 lb)
Applications

Ideal for rotary control valves paired with Fisher 1051, 1052, or 2052 actuators in oil & gas, chemical, power, and refining processes.

Frequently Asked Questions

Q: Can the 3610J be converted from direct to reverse action?

A: Yes, simply reposition the reversing plate and, if needed for 60° rotation, remove the counter spring.

Q: What actuators is the 3610J designed for?

A: Fisher 1051, 1052, and 2052 diaphragm rotary actuators.

Q: Does it support characterized cams?

A: Yes — cams A, B, and C are available for different flow characteristics.
