Home /Products/Valve Accessories/New and Reliable Pnuematic Control Valve Spiraxsarco and FISH-ER Regulator 67DFR and Controller DVC2000 3582I and Masoneilan Positioner SVI2

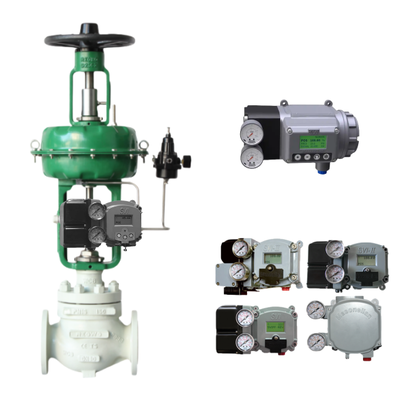

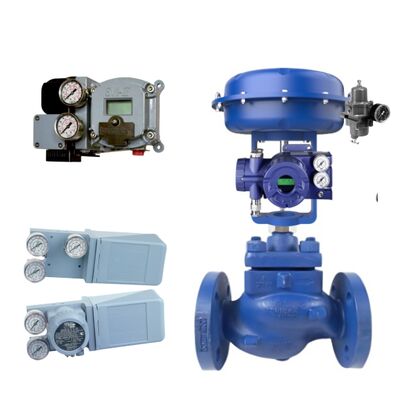

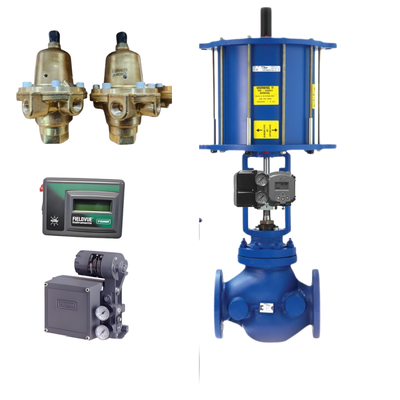

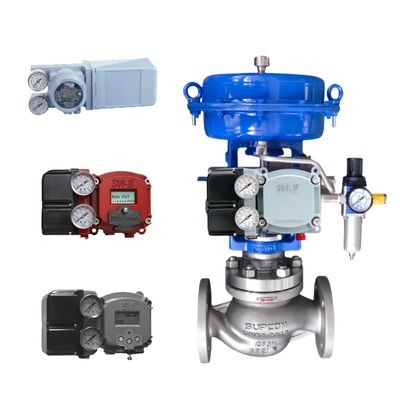

New and Reliable Pnuematic Control Valve Spiraxsarco and FISH-ER Regulator 67DFR and Controller DVC2000 3582I and Masoneilan Positioner SVI2

5
MOQ
1000-3000
Price
New and Reliable Pnuematic Control Valve Spiraxsarco and FISH-ER Regulator 67DFR and Controller DVC2000 3582I and Masoneilan Positioner SVI2
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM, ODM, OBM
Temperature Of Media: Normal Temperature
Body Material: Brass
Port Size: 1/2 "; 3/8 "; 1 "
Inlet Pressure Rating: 210 Psi (15 Bar)
Valve Actuation: Solenoid - Air Pilot
Pressure Setting Range: 5-100 Psi (0.35-7 Bar)
Ambient Temperature Range: -40°C To +83°C (-40°F To +182°F)
Basic Infomation
Place of Origin: USA
Brand Name: Masoneilan
Model Number: SVI2
Payment & Shipping Terms
Packaging Details: Wooden Boxes
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 999
Product Description
Product Introduction 1: Masoneilan SVI II AP Digital Valve Positioner
Product Overview

The Masoneilan SVI II AP (SVI2) is an advanced electro-pneumatic digital valve positioner that uses a two-wire 4-20 mA signal with HART communication. It features non-contact position sensing and a 32-bit microprocessor for precise, reliable control of both single- and double-acting pneumatic actuators on rotary and linear valves.

Features
  • Non-contact magnetic position feedback for high reliability and reduced wear.
  • Local interface with optional explosion-proof LCD and pushbuttons for easy setup and calibration.
  • Advanced diagnostics including pressure sensors and valve performance monitoring.
  • Universal mounting design suitable for linear and rotary applications.
  • Field-upgradable firmware and options for flexibility.
  • High air delivery capacity with options for standard or high-flow versions.
  • Robust construction with copper-free aluminum housing.
Technical Specifications
Specification Value
Communication HART 5 or 7 over 4-20 mA
Action Single or double acting, fail-safe
Supply Pressure Single-acting 20–100 psi (1.4–6.9 bar); Double-acting 20–150 psi (1.4–10.3 bar)
Operating Temperature -50°C to +85°C (-58°F to +185°F)
Housing Copper-free aluminum (optional 316 stainless steel)
Enclosure Protection NEMA 4X / IP66
Travel Range Linear 0.25" to 6" (standard); Rotary 18° to 140°
Certifications ATEX, IECEx, FM, CSA for Explosion Proof, Intrinsically Safe, Flameproof
Diagnostics Standard and advanced options with up to five pressure sensors
Applications

Ideal for control valves in oil & gas, refining, petrochemical, power generation, and other process industries requiring accurate positioning, real-time diagnostics, and reliable performance in harsh environments.

FAQ

Q: Does it support both linear and rotary valves?

A: Yes, it has a universal design for both linear and rotary actuators.

Q: What communication protocol does it use?

A: HART 5 or 7 over a standard 4-20 mA signal.

Q: Is it suitable for hazardous areas?

A: Yes, with multiple global certifications for explosion-proof and intrinsically safe installations.

Q: Can calibration be done locally?

A: Yes, with the optional local LCD and pushbuttons.

Q: What is the temperature range?

A: -50°C to +85°C, suitable for extreme conditions.

Contact Us

Email: tracychen@gbsxj.com

WhatsApp: +8617799852698

Wechat: 13032169170

Related Products

Consider the Masoneilan SVI3 for the latest generation or the 4700E series for simpler positioning needs.
