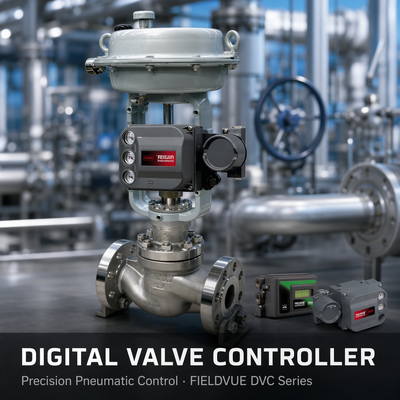

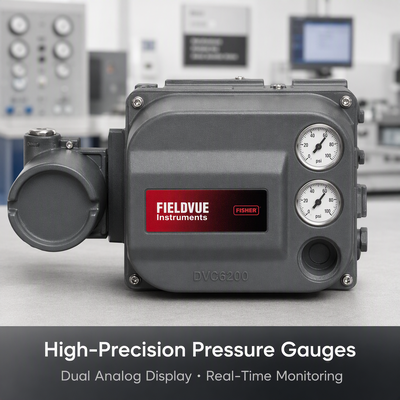

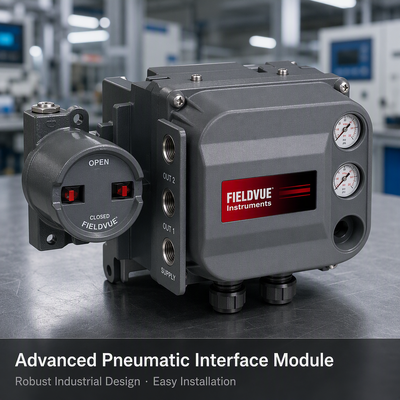

E merson Fi sher FIELDVUE DVC6200 Original Genuine Digital Valve Positioner Authorized Distributor Stock

1
MOQ
1553~1774$ per set
Price
E merson Fi sher FIELDVUE DVC6200 Original Genuine Digital Valve Positioner Authorized Distributor Stock
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Highlight:

Emerson Fisher FIELDVUE DVC6200 digital valve positioner

,

original genuine digital valve positioner

,

FIELDVUE DVC6200 authorized distributor stock
Basic Infomation
Place of Origin: China
Brand Name: Fi sher
Model Number: DVC6200
Payment & Shipping Terms
Packaging Details: Carton/Wooden Case Packaging
Delivery Time: 6-8 weeks
Payment Terms: T/T
Supply Ability: 800 sets per year
Product Description
Emerson Fisher FIELDVUE DVC6200 Original Genuine Digital Valve Positioner
Product Overview
The Fisher DVC6200 is a high-performance HART digital valve controller developed by Emerson Fisher. It matches pneumatic linear and rotary actuators, converting 4-20mA HART digital signals into precise pneumatic output to control valve travel. Equipped with contactless Hall-effect travel feedback, built-in advanced valve diagnostic functions and split-range control capacity, it meets SIL safety standards and multiple global explosion-proof certifications. Its compact modular design supports field maintenance and firmware upgrades, making it ideal for harsh industrial process control loops.
Key Features
  • Ultra-precise positioning control: ±0.5% full stroke accuracy with excellent repeatability and negligible deadband
  • Built-in comprehensive valve diagnostics to monitor packing friction, supply air leakage and actuator performance
  • Contactless Hall-effect sensor with no mechanical linkage wear for long service life
  • One-button auto-calibration without extra handheld communicator operation
  • Support for split-range, reverse action and multi-stage flow control modes
  • Modular split structure allowing separate replacement of pneumatic and electronic parts on site
  • IP66/NEMA 4X enclosure with wide operating temperature range and anti-corrosion housing option
  • SIL 2/SIL 3 capable with ATEX, IECEx, FM explosion-proof certifications
  • Compatible with single-acting and double-acting pneumatic actuators
Technical Specifications
Parameter Specification
Input Signal 4-20mA DC, HART 7 protocol
Supply Air Pressure 1.4-7 bar (20-100 psi)
Positioning Accuracy ±0.5% full travel
Feedback Type Non-contact Hall-effect sensor
Ambient Temperature -40°C to +85°C
Protection Grade IP66 / NEMA 4X
Housing Material Die-cast aluminum, optional 316 stainless steel
Adaptable Actuator Linear stroke 6-150mm; rotary angle 30°-120°
Safety Rating SIL 2 / SIL 3 capable
Certifications ATEX, IECEx, FM, CSA
Applications
Oil & gas exploitation and refining, petrochemical plants, thermal power & new energy power stations, fine chemical & pharmaceutical production, pulp and paper, industrial wastewater treatment, metallurgy and mining.
Frequently Asked Questions
What communication protocol does DVC6200 adopt?
It adopts 4-20mA analog signal with HART 7 digital protocol, compatible with all standard HART communicators and mainstream DCS systems.
Can it be used for both linear and rotary valves?
Yes, the DVC6200 supports all standard single-acting and double-acting linear and rotary pneumatic actuators with adaptive auto-calibration.
Does the DVC6200 support valve predictive maintenance?
Yes. It continuously collects operation data and generates diagnostic reports to warn of valve aging, packing wear and air supply leakage in advance to avoid unplanned shutdown.
Is the positioner suitable for explosive hazardous areas?
Yes. It has global explosion-proof certifications and can be installed in Zone 1 and Zone 2 hazardous process sites.
Can internal modules be replaced on site?
Yes. The modular design allows independent replacement of pneumatic relay, electronic mainboard and display unit without removing the whole device from the valve.
