Flowserve Logix 3800 3800E Smart Digital Valve Positioner HART Protocol for Pneumatic Control Valves

1
MOQ
1805-2105$ per set
Price
Flowserve Logix 3800 3800E Smart Digital Valve Positioner HART Protocol for Pneumatic Control Valves
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Highlight:

Flowserve Logix 3800E digital valve positioner

,

HART protocol valve positioner

,

pneumatic control valve positioner
Basic Infomation
Place of Origin: China
Brand Name: Flowserve
Model Number: 3800MD
Payment & Shipping Terms
Packaging Details: Carton/Wooden Case Packaging
Delivery Time: 6-8 weeks
Payment Terms: T/T
Supply Ability: 800 sets per year
Product Description
Flowserve Logix 3800 3800E Smart Digital Valve Positioner HART Protocol for Pneumatic Control Valves
Product Overview

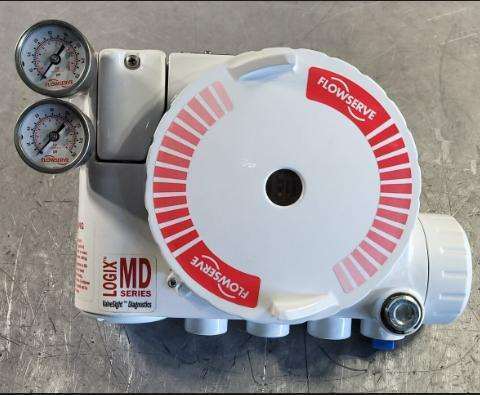

Flowserve Logix 3800MD is a high-end modular smart digital valve positioner designed for pneumatic linear and rotary actuators. It converts standard 4-20mA HART signals into stable pneumatic output for precise valve stroke control. Equipped with non-contact magneto-resistive position sensor, dual-poppet pneumatic relay and ValveSight predictive diagnostic system, it achieves SIL 3 safety capability and global hazardous area certifications. Its split modular structure supports on-site maintenance and quick calibration, delivering stable performance for heavy-duty industrial process control scenarios.
Key Features
  • Ultra-high positioning accuracy ±0.5% full travel, excellent repeatability and ultra-low deadband
  • One-touch quick auto-calibration, completes zero/span setup within 60 seconds without extra communicator
  • Built-in 5 pressure sensors for full-cycle predictive diagnostics, early warning of valve friction, air leakage and actuator aging
  • Wear-free shielded non-contact position sensor, resistant to vibration and signal drift
  • Dual-poppet pneumatic relay with large air capacity, fast response and low air consumption
  • Fully modular split design; pneumatic, electronic and display modules can be replaced separately on site
  • IP66 / NEMA 4X rugged enclosure, wide operating temperature range -52°C ~ +85°C
  • SIL 3 capable, ATEX, IECEx, FM explosion-proof certificates for Zone 0/1/2 hazardous locations
  • Multi-protocol support: HART 7, Foundation Fieldbus, discrete I/O; compatible with single/double-acting actuators
Technical Specifications
Parameter Specification
Input Control Signal 4-20mA DC, HART 7 digital communication
Supply Air Pressure 1.4-7 bar (20-100 psi)
Positioning Accuracy ±0.5% full stroke
Position Feedback Non-contact magneto-resistive sensor
Ambient Working Temp -52°C ~ +85°C
Protection Class IP66 / NEMA 4X
Housing Material Die-cast aluminum, optional anti-corrosion coating
Adaptable Actuator Linear 6-200mm stroke; Rotary 30°-120° rotation
Safety Level SIL 3 capable
Global Certifications ATEX, IECEx, FM, CSA explosion-proof approval
Diagnostic System ValveSight DTM real-time fault data recording
Applications
Oil & gas refineries, natural gas pipelines, petrochemical plants, thermal power & new energy stations, fine pharmaceutical manufacturing, pulp & paper factories, industrial wastewater treatment, metallurgy and hydrogen energy compression projects.
Frequently Asked Questions
What communication protocols does the 3800MD support?
It supports 4-20mA analog with HART 7, and optional Foundation Fieldbus digital bus, compatible with all mainstream HART handheld communicators and DCS systems.
Can it match both linear and rotary pneumatic actuators?
Yes, the 3800MD fits all standard single-acting and double-acting linear & rotary actuators with adaptive automatic calibration.
Does the positioner support predictive maintenance functions?
Yes. The ValveSight diagnostic module continuously monitors valve operating status, stores historical fault data and sends early failure alerts to reduce unplanned plant shutdown.
Is this model applicable for explosive hazardous areas?
Yes, it holds full global explosion-proof certifications and can be installed in Exd IIC Zone 0, 1 and 2 flammable process sites.
Can internal modules be replaced without removing the whole unit from the valve?
Yes. The split modular design allows independent replacement of pneumatic relay, main circuit board and LCD display on site.
