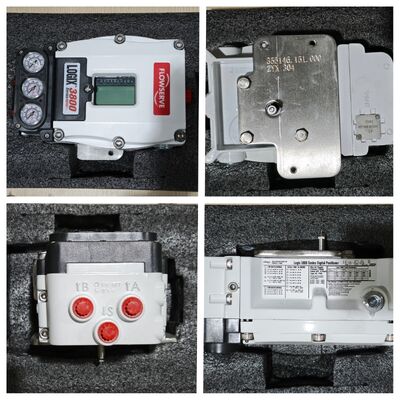

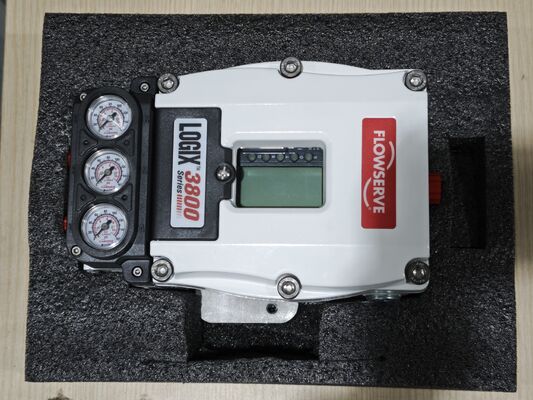

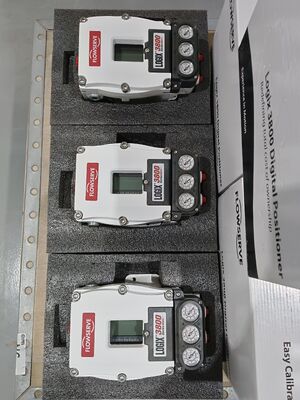

New in Stock Flowserve Logix 3800 3800E Digital Pneumatic Valve Positioner Control Valve Spare Parts

Logix 3800: full-featured digital positioner with five onboard pressure sensors, ValveSight DTM diagnostics, and HART / Foundation Fieldbus / 4-20 mA communication — engineered for maximum process uptime in the toughest oil & gas and chemical environments.

Logix 3800E: value-based alternative built on the same platform, offering identical form, fit, and core performance with HART / 4-20 mA / discrete I/O — cost-competitive without sacrificing SIL 3 capability or IP66 ruggedness.

Both models feature one-button quick calibration that auto-configures zero, span, and gain in under 60 seconds, with a shielded dual-element non-contact magneto-resistive position sensor for trouble-free long-term stability.

Source: Flowserve Logix 3800 brochure (LGENBR3100-03, 05/2018) & Flowserve.com product pages

• Oil & Gas — upstream, midstream, and downstream control valve automation in explosion-proof (Ex d IIC) hazardous areas, including remote mount configurations for inaccessible locations.
• Chemicals — basic organic/inorganic chemical processing where SIL 3 safety integrity, corrosion-resistant copper-free aluminum housing, and predictive diagnostics are mandatory.
• Power & Water — boiler feedwater control, cooling water regulation, and wastewater treatment where HART-enabled remote monitoring reduces site inspection frequency.

• Positioner fails to auto-calibrate — verify supply air pressure meets the minimum 4.1 bar (60 psi) requirement; inspect the I/P piezo driver module and ensure the feedback shaft (NAMUR or D-shaft) is correctly engaged with the actuator linkage.
• Excessive air consumption or pneumatic leak warning — five onboard pressure sensors continuously monitor actuator tubing and relay leakage. Run ValveSight DTM signature test to isolate whether the leak is in the actuator diaphragm, tubing, or pneumatic relay.
• Communication loss on HART/Fieldbus — check that the loop compliance voltage is ≥10 VDC at 20 mA (effective resistance ~500 Ω); verify firmware version via the LCD/keypad menu and ensure the DD/DTM file matches the host system revision.

• Predecessor: Logix 3200 / 3400 (discontinued) — the 3800 series replaces both with up to 80% more air capacity via dual-poppet pneumatic relay, integrated onboard diagnostics, and firmware-upgradeable electronics.
• Same-family alternatives: Logix 3800E for budget-sensitive applications (drops Foundation Fieldbus and advanced DTM diagnostics); Logix 3800zb (Zero-Bleed) for environmental compliance applications requiring zero emissions during steady-state operation.
• Cross-brand equivalents: F-isher DVC6200, S-iemens SIPART PS2, ABB TZIDC — Flowserve's advantage lies in the dual-element non-contact sensor, five-pressure-sensor diagnostics suite, and one-button quick calibration.

• Factory-authorized Flowserve distributor with direct access to the Valtek/Logix production pipeline — all units ship with full OEM warranty and traceability.
• Every positioner undergoes pre-shipment pneumatic bench testing including I/P calibration, relay function check, and firmware verification against the latest release.
• After-sales support covering remote ValveSight DTM setup assistance, on-site commissioning, and expedited spare parts (I/P modules, relay kits, feedback shafts) with 48-hour dispatch.

• Standard Logix 3800 (HART, aluminum Ex d housing): typically 4–6 weeks from order confirmation.
• Logix 3800E (HART, aluminum or plastic housing): typically 3–5 weeks.
• Special configurations (Foundation Fieldbus, stainless steel Ex d, remote mount): 8–12 weeks depending on certification and build complexity.

To request a quotation, please provide: Company Name / Contact Person / Email / Model (3800 or 3800E) / Communication Protocol (HART, FF, or 4-20 mA) / Housing (aluminum Ex d, aluminum IS, SS Ex d, or plastic GP) / Actuation (single-acting or double-acting) / Quantity / Application.
