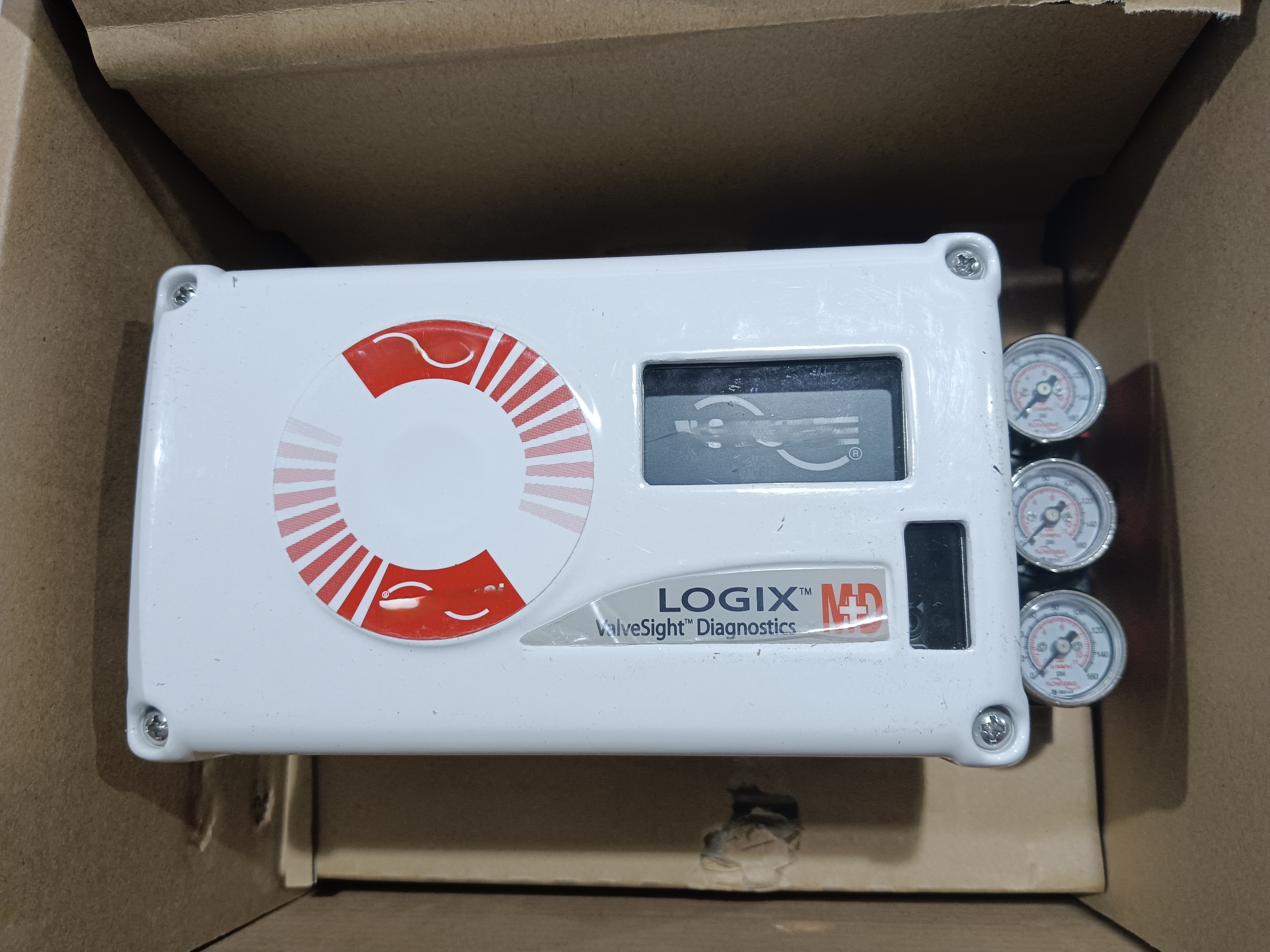

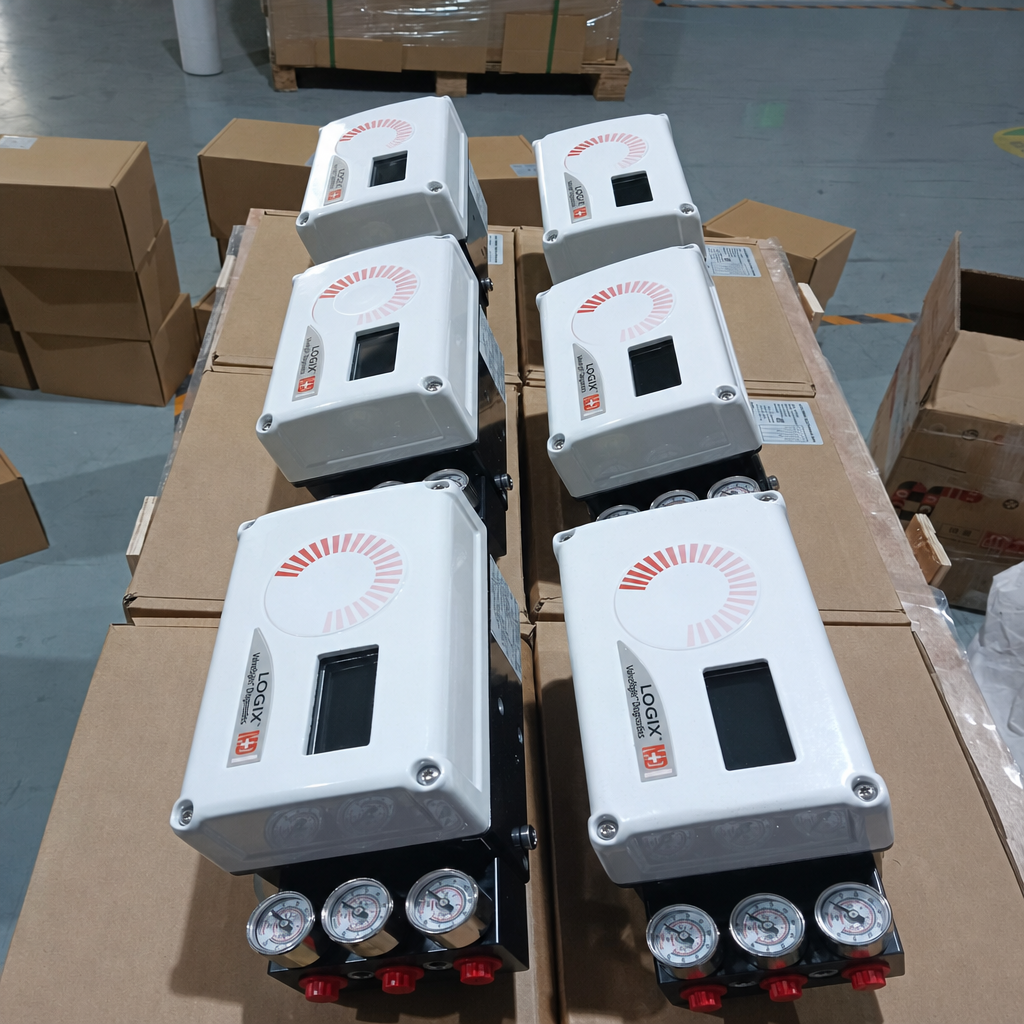

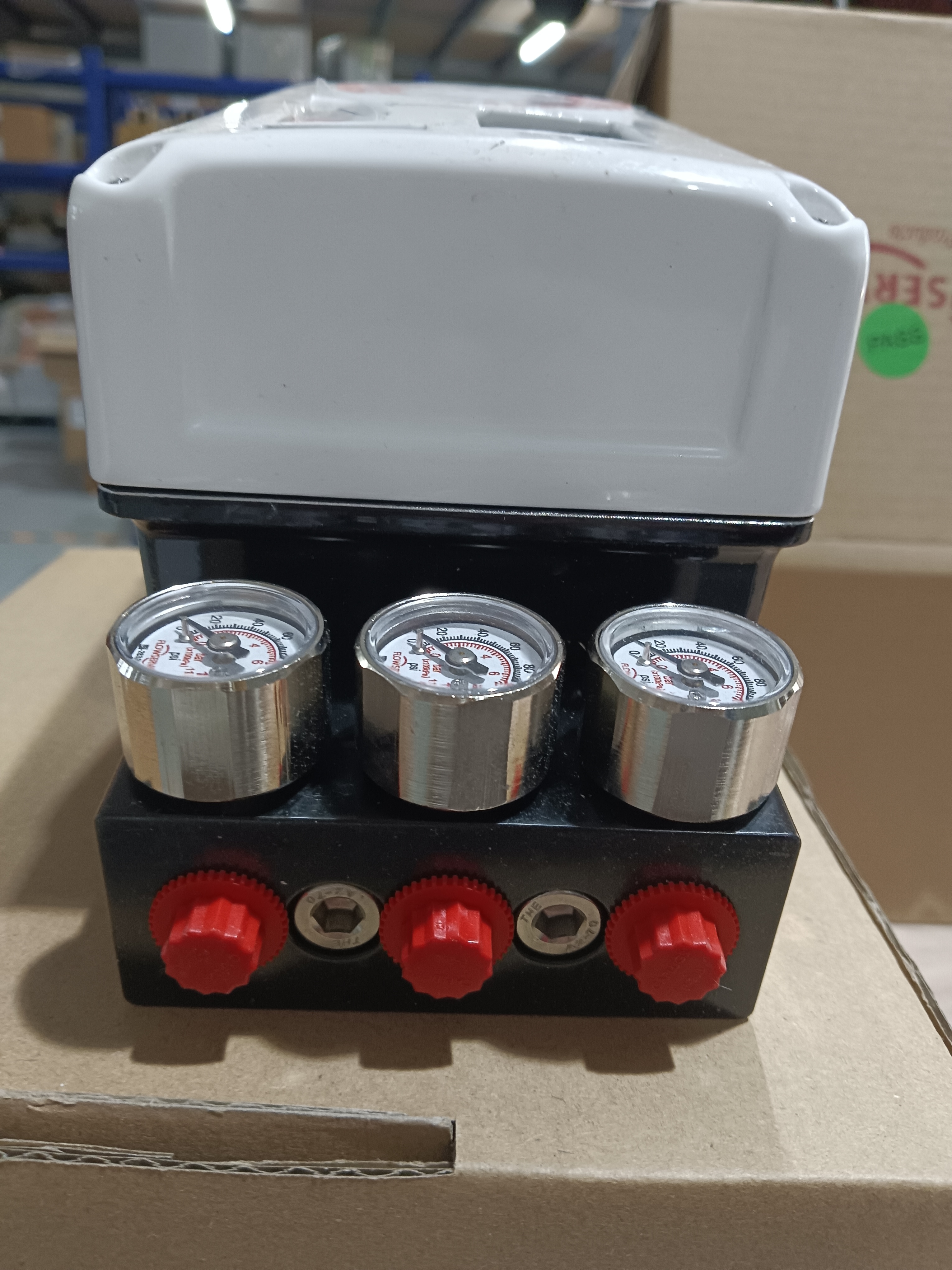

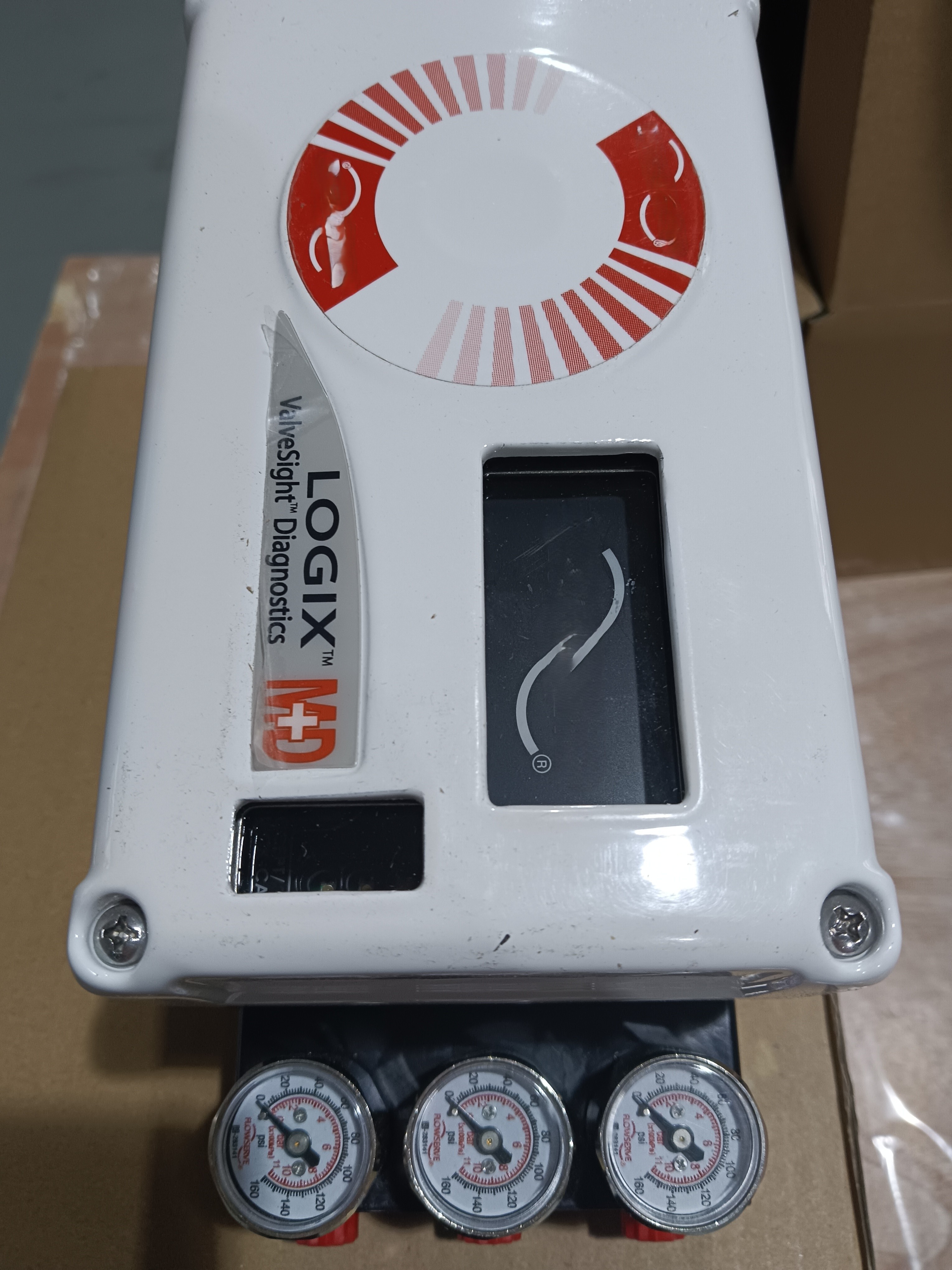

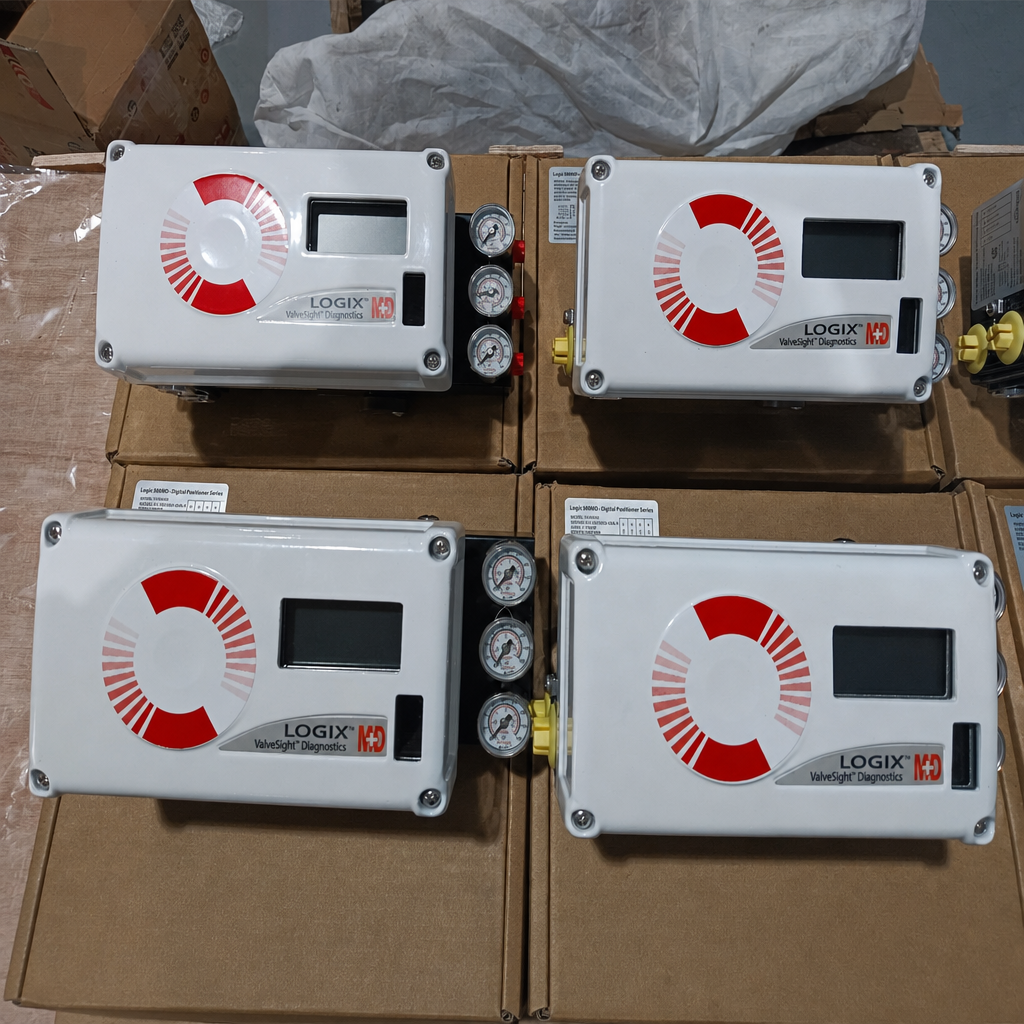

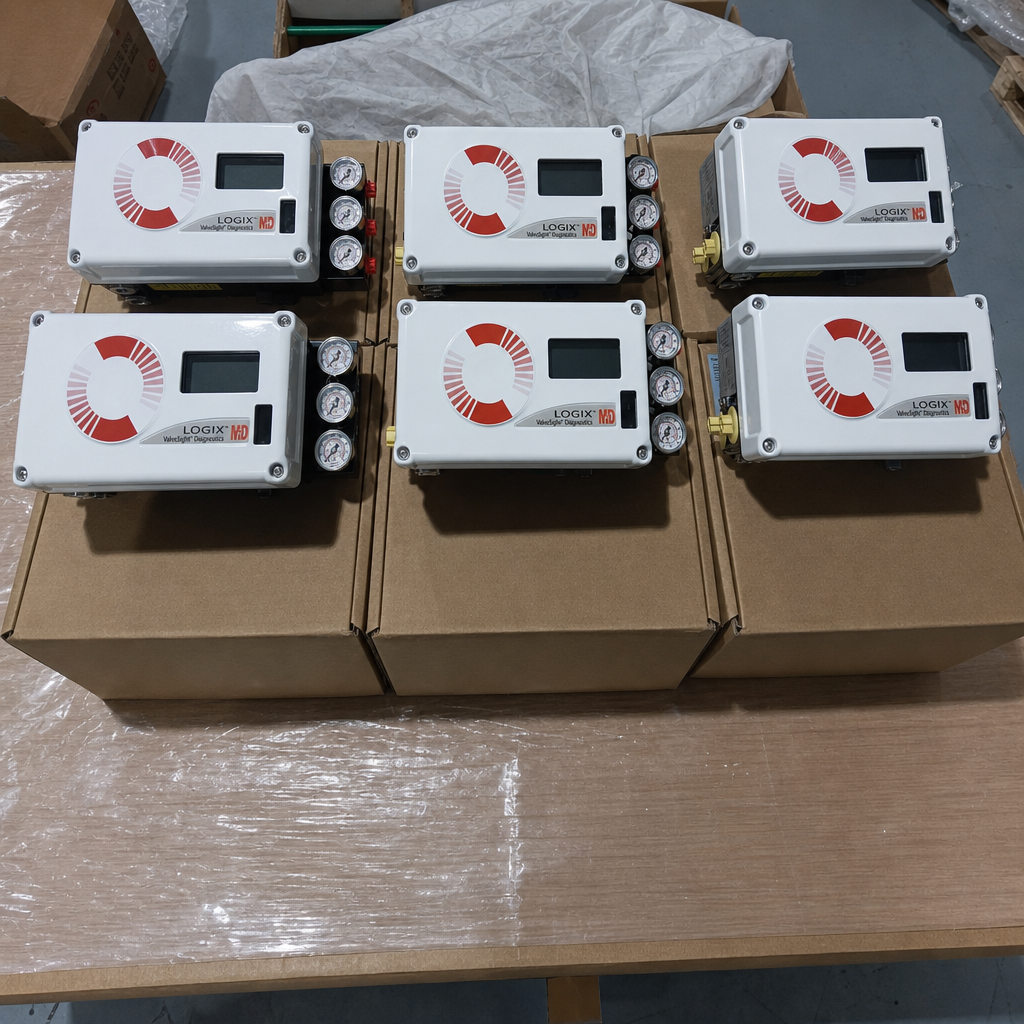

Flowserve Logix 520MD Plus Digital HART 7 Positioner 4 20mA IP66

Adopts advanced piezoelectric technology with 4–20mA two-wire HART 5/6/7 communication for valve actuator control.

Built-in over 130 valve diagnostic alarms, supporting ValveSight DTM software for real equipment health monitoring.

Supports on-site quick auto-calibration and local jog operation without handheld communicator.

• Oil & gas upstream/downstream pipelines for pneumatic regulating valve automatic control
• Chemical & petrochemical plants for corrosive medium flow adjustment valves
• Thermal power station boiler and steam pipeline control valve matching equipment

• Control loop oscillation: Reduce proportional gain, clean internal spool valve and filter air supply.
• Position feedback failure: Check linkage connection, execute full stroke quick calibration.
• HART communication loss: Verify loop voltage and wiring, restart device after power cycle.

• Flowserve Logix 521MD Plus / 522MD Plus high-end upgraded positioners
• Flowserve Logix 3200MD series double-acting digital HART positioner
• Masoneilan SVI2 AP universal HART valve positioner cross-brand substitute

• Supply brand-new original Flowserve complete sets with factory test & explosion-proof certificates.
• Provide free calibration guidance and ValveSight DTM software operation training.
• 12-month official warranty with global after-sales technical support service.

• Standard non-explosion Logix 520MD Plus models in stock, ship within 3–7 working days.
• Custom intrinsically safe ATEX/FM versions take 15–20 working days for production.
• Complete export customs documents provided for sea & air global logistics.

• Specify explosion-proof grade and single/double acting actuator matching requirement.
• Confirm valve stroke range and working temperature environment parameters.
• Inform target order quantity to get accurate FOB USD tiered unit price.
