Home /Products/Electric Control Valves/AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm High Torque Open-Close Valve Actuator IP68 Industrial

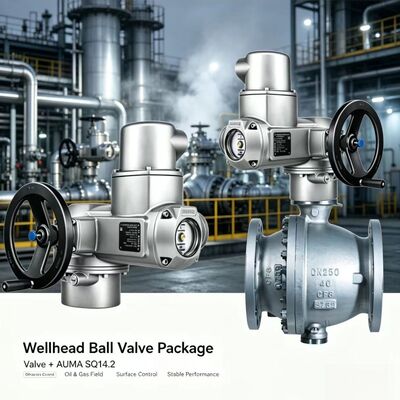

AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm High Torque Open-Close Valve Actuator IP68 Industrial

1
MOQ
4000 dollars
Price
AUMA SQ 14.2 Part-Turn Actuator 800-2400Nm High Torque Open-Close Valve Actuator IP68 Industrial
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Ambient Temperature: -30 °C To +70 °C
Humidity: Up To 100 % Relative Humidity
Overvoltage Category: Category III According To IEC 60364-4-44
Insulation Class: F, Tropicalized
Voltages: 110 - 120 V AC, 220 - 240 V AC Or 380 - 480 V AC
Highlight:

AUMA SQ 14.2 part-turn actuator

,

high torque valve actuator IP68

,

industrial electric control valves
Basic Infomation
Place of Origin: China
Brand Name: AUMA
Model Number: SQ 14.2
Document: 60-22934-01.pdf
Payment & Shipping Terms
Packaging Details: Carton + Wooden crate + Protective packaging
Delivery Time: 60 days
Payment Terms: T/T
Supply Ability: 500 units per year
Product Description

Product Overview

The AUMA SQ 14.2 is a compact, high-performance part-turn actuator for open-close duty. It provides 800–2,400 Nm torque, multiple speed options and full compliance with industrial standards for valve automation.

Key Features

  • 3-phase AC motor with thermoswitches (PTC option)
  • Limit and torque switching (single or tandem)
  • Manual operation with optional lockable handwheel or power-tool interface
  • Heater in switch compartment as standard
  • Wide ambient temperature and humidity range
  • Double-layer powder coating in AUMA silver-grey

Technical Specifications

Item Details
Model SQ 14.2
Torque range 800–2,400 Nm
Operating times 90° 24/20 s up to 100/85 s (50/60 Hz)
Max. starts 60 1/h
Valve interface F14 std / F16 opt (EN ISO 5211)
Max. shaft 60 mm cylindrical / 46 mm square/two-flat
Handwheel Ø / turns 200 mm / 51–70 depending on speed
Weight ≈44 kg (std) / ≈55 kg (base & lever)
Enclosure / Corrosion IP68 / KS (std)
Temperature –30 °C to +70 °C (std)

Applications

Butterfly valves, ball valves and other quarter-turn valves in water, energy, petrochemical and general process industries.

Frequently Asked Questions

External controls required? Yes.

Self-locking? Yes.

Swing-angle options available? Yes – several ranges beyond the standard 75°–<105°.

Reference documents? Dimensions SQ 05.2–SQ 14.2 / SQR and Electrical data SQ 05.2–SQ 14.2.

Contact Us

Phone/WeChat/WhatsApp:

+8613916209596

Email: svetama@gbsxj.com

Related Products

SQ series siblings (SQ 05.2 to SQ 12.2); AUMA NORM actuators with AM/AC controls; lever-and-base configurations.
