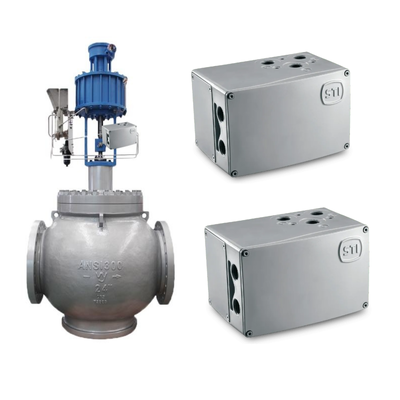

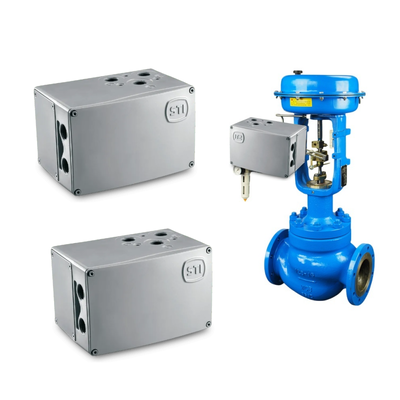

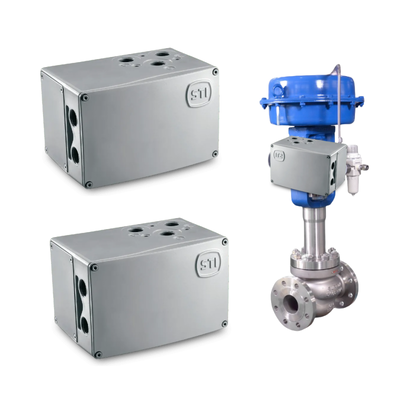

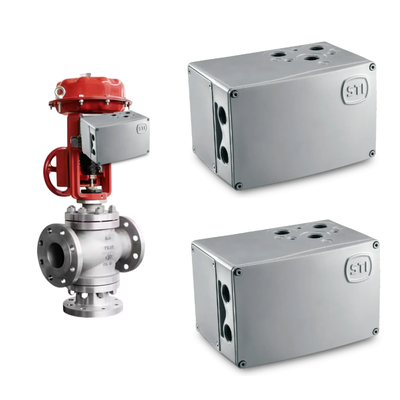

High-capacity IMI STI FasTrak FT-I00ADSA Smart Digital Valve Positioner with HART Communication

Product Overview

The STI FT-I00ADSA is a high-capacity, high-precision digital-pneumatic smart valve positioner from the FasTrak series. It is designed as a direct replacement for conventional positioners and delivers excellent dynamic performance on both single- and double-acting actuators (with or without spring, piston or diaphragm). The model features intrinsically safe protection, integrated feedback, local display with push-button interface, and high-flow capacity (Cv 2.3).

Key Features

• High flow capability up to 180 Nm³/h at 6 bar (Cv 2.3) – often eliminates the need for external volume boosters
• Self-calibration and independent PID / stroking-time parameters for open and close directions
• Local LCD display + push buttons for on-site configuration (aluminium housing only)
• HART communication + 4–20 mA position feedback
• Configurable digital inputs/outputs, travel limits, tight shut-off, split-range and characterisation curves
• IP66 / NEMA 4X aluminium housing with stainless-steel feedback shaft
• Standard fail-safe (Port A exhausted on power/signal loss)

Technical Specifications

Applications

Precise control of large-volume pneumatic actuators in process industries (oil & gas, chemical, power, refining) where high dynamic response, hazardous-area certification and local configurability are required.

Frequently Asked Questions

• Does it need a volume booster? – Usually not, thanks to the high Cv.
• Can parameters be set without HART communicator? – Yes, via the local display and push buttons.
• Is it suitable for single-acting actuators? – Yes (set internal selector to single-acting).
• What is the fail position? – Port A is fully exhausted on power or signal loss.
