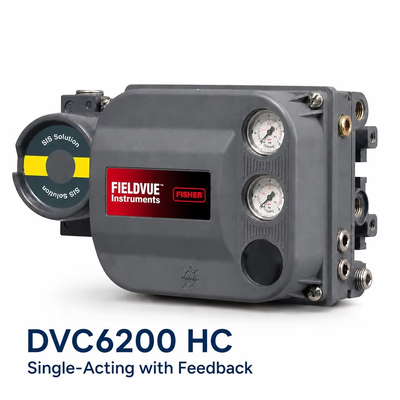

DVC6200 HC Digital Valve Controller is a digital valve controller designed for pneumatic control valve positioning in industrial process applications. It converts a 4–20 mA DC control signal into a pneumatic output signal and supports HART 5 or HART 7 communication for configuration, operating status and diagnostic information.
The HC (HART Communicating) instrument level provides digital communication and valve status monitoring functions, making it suitable for applications requiring reliable valve positioning and convenient field configuration.
Key Features
- 4–20 mA DC input signal, with split-ranging available
- HART 5 / HART 7 communication
- HART Communicating (HC) instrument level
- Linkage-less, non-contact position feedback
- Pneumatic output for actuator control
- Supports single-acting direct, single-acting reverse and double-acting configurations
- Suitable for sliding-stem linear control valves
- Suitable for quarter-turn rotary control valves
- Digital valve status monitoring and diagnostic alerts
- Two-stage pneumatic design for fast response to large setpoint changes and precise response to small changes
- Ramped cutoff helps provide a smooth transition from throttling operation to shutoff
- Modular construction allows selected components to be serviced without removing field wiring and pneumatic tubing
- Compatible with applicable IEC, VDI/VDE and NAMUR mounting standards
Technical Specifications

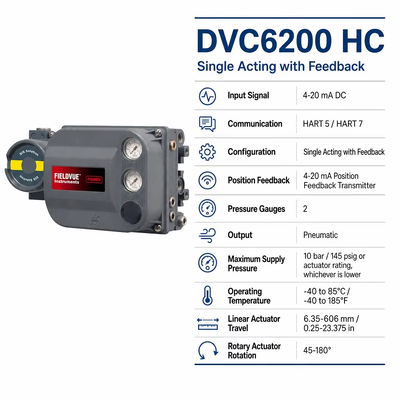

| Specification |
DVC6200 HC |
| Product Type |
Digital Valve Controller / Digital Valve Positioner |
| Instrument Level |
HART Communicating (HC) |
| Input Signal |
4–20 mA DC |
| Communication |
HART 5 / HART 7 |
| Output |
Pneumatic |
| Action |
Single-Acting Direct / Single-Acting Reverse / Double-Acting |
| Minimum Control Current |
4.0 mA |
| Maximum Voltage |
30 V DC |
| Maximum Supply Pressure |
10.0 bar / 145 psig or actuator rating, whichever is lower |
| Minimum Output Span |
0.4 bar / 6 psig |
| Maximum Output Span |
9.5 bar / 140 psig |
| Supply Medium |
Clean, dry, noncorrosive air or natural gas |
| Operating Temperature |
-40 to 85°C / -40 to 185°F |
| Extreme Temperature Option |
-52 to 85°C / -62 to 185°F |
| Linear Actuator Travel |
6.35–606 mm / 0.25–23.375 in |
| Rotary Actuator Rotation |
45°–180° |
| Pneumatic Connections |
1/4 NPT female |
| Electrical Connection |
1/2 NPT female or M20 |
| Recommended Tubing |
3/8 in. |
| Enclosure |
IP66 for applicable configurations |
| Housing |
Aluminum standard / Stainless Steel optional |

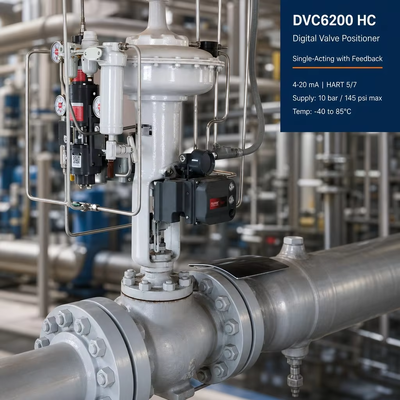

Applications
DVC6200 HC is suitable for industrial process control, including oil and gas, petrochemical, chemical processing, power generation, water and wastewater treatment, refining and general process automation.
Typical applications include pneumatic control valve positioning for flow, pressure, temperature and level control, as well as linear and rotary valve automation.
Configuration & Compatibility Support
The controller can be configured for different actuator and valve applications. Available options may include pressure gauges, integral filter regulator, low-bleed relay, extreme-temperature construction, remote mounting, stainless steel housing, 4–20 mA position transmitter and limit switch, depending on the selected configuration.
Please provide the valve model, actuator model, required quantity, nameplate information or product photo when requesting a quotation. We can help verify the suitable DVC6200 HC configuration and provide pricing and availability.
Information Required for Quotation
Product Model: DVC6200 HC
Quantity: Required units
Valve: Type / Model / Size
Actuator: Type / Model / Supply Pressure
Communication: HART 5 / HART 7
Options: Gauges / Filter Regulator / Position Transmitter / Limit Switch / Remote Mount, if required
Application & Operating Conditions: Medium / Temperature / Supply Pressure
Destination: Country / Port
Not sure about the configuration? Send us a product nameplate photo or valve/actuator photo. Our technical team can help verify the suitable configuration before quotation.
Request a Quote for DVC6200 HC
