FIELDVUE DVC6200 Smart Valve Positioner 4 20mA IP66 Digital Valve Controller

Product Overview

DVC6200 Digital Valve Positioner is a microprocessor-based digital valve controller designed for pneumatic control valve applications. It converts a 4–20 mA control signal into pneumatic output to accurately position linear and quarter-turn rotary valves.

The device supports HART 5 or HART 7 communication, providing access to configuration, calibration, operating status and diagnostic information through the control loop.

Its linkage-less, non-contact position feedback design eliminates mechanical contact between the position feedback system and valve stem, helping reduce wear and maintenance requirements. The unit can be used with compatible pneumatic actuators for process control applications in oil & gas, petrochemical, chemical processing, power generation, water treatment and other industrial environments.

Key Features

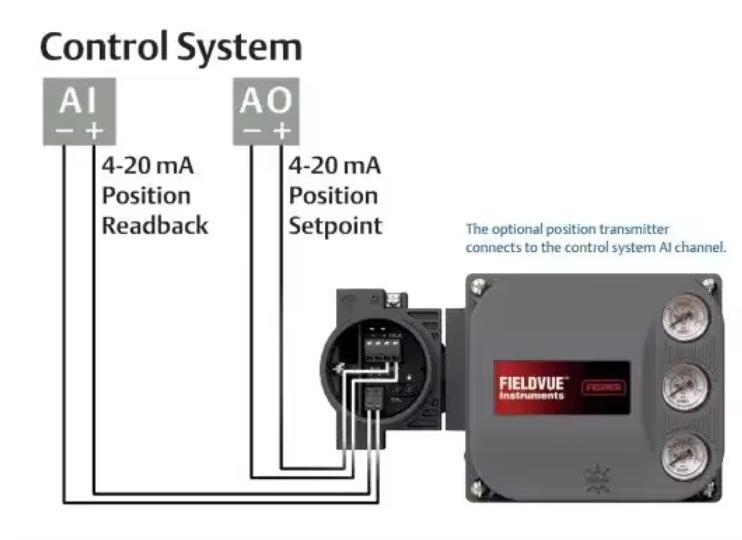

• 4–20 mA DC input signal
• HART 5 / HART 7 communication
• Pneumatic output control
• Non-contact position feedback
• Linear and quarter-turn rotary applications
• Single-acting and double-acting configurations
• Automatic calibration
• Digital valve diagnostics
• Operating temperature: -40 to 85°C
• Maximum supply pressure: 10 bar / 145 psi
• IEC / VDI-VDE / NAMUR compatible mounting options

Typical Applications

• Pneumatic control valve automation
• Process flow control
• Pressure control
• Temperature control
• Oil & gas
• Petrochemical
• Chemical processing
• Power generation
• Water & wastewater treatment

What Information Should I Provide?

To help us provide an accurate quotation, please send:

• Product model
• Valve model
• Actuator model
• Input signal
• HART requirement
• Single-acting or double-acting
• Linear or rotary application
• Required quantity
• Destination country

Need help confirming the configuration? Send us your valve or actuator model.

Don't have all the information? Send us the product photo or nameplate — we can help identify the configuration.
