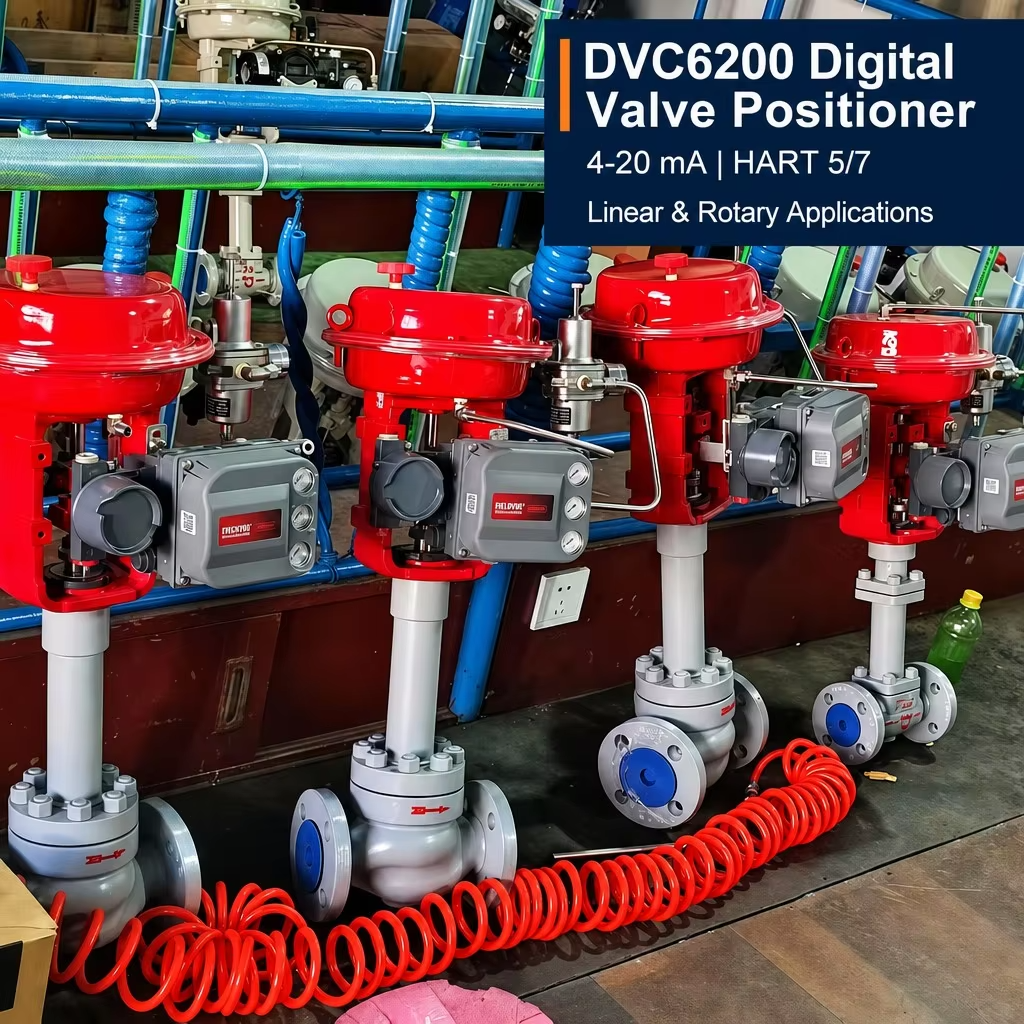

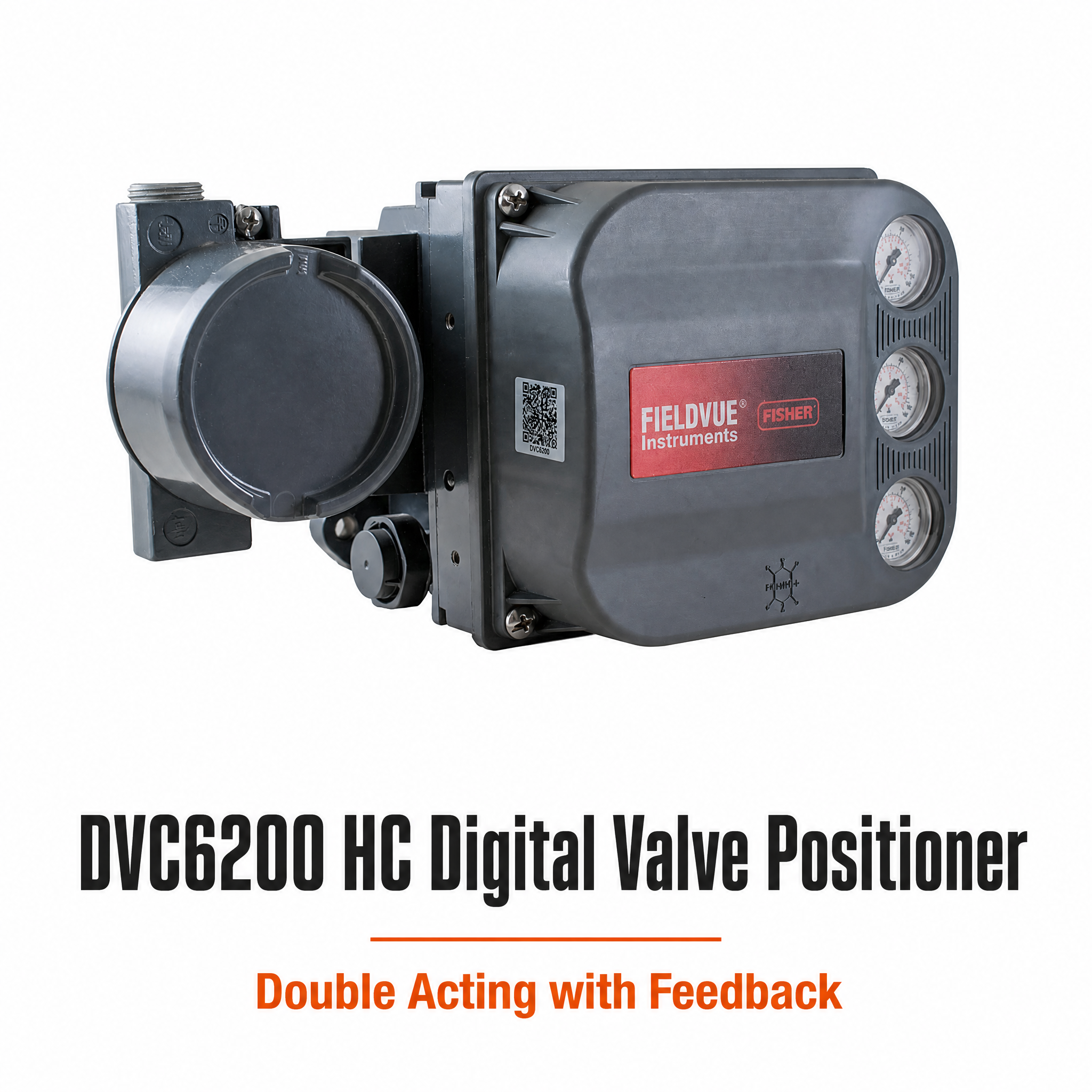

DVC6200 HC Digital Valve Positioner is a microprocessor-based digital valve controller designed for pneumatic control valve applications. The double-acting configuration with position feedback provides precise control and reliable valve positioning for linear and quarter-turn rotary control valves.
The device converts a 4–20 mA control signal into pneumatic output pressure to control compatible pneumatic actuators. HART communication provides access to device configuration, calibration, operating status and diagnostic information through the control loop.
Its linkage-less, non-contact position feedback design continuously monitors valve position without mechanical contact between the feedback system and valve stem, helping reduce mechanical wear and maintenance requirements. The double-acting configuration provides pneumatic output to both sides of a compatible actuator for reliable bidirectional valve control.

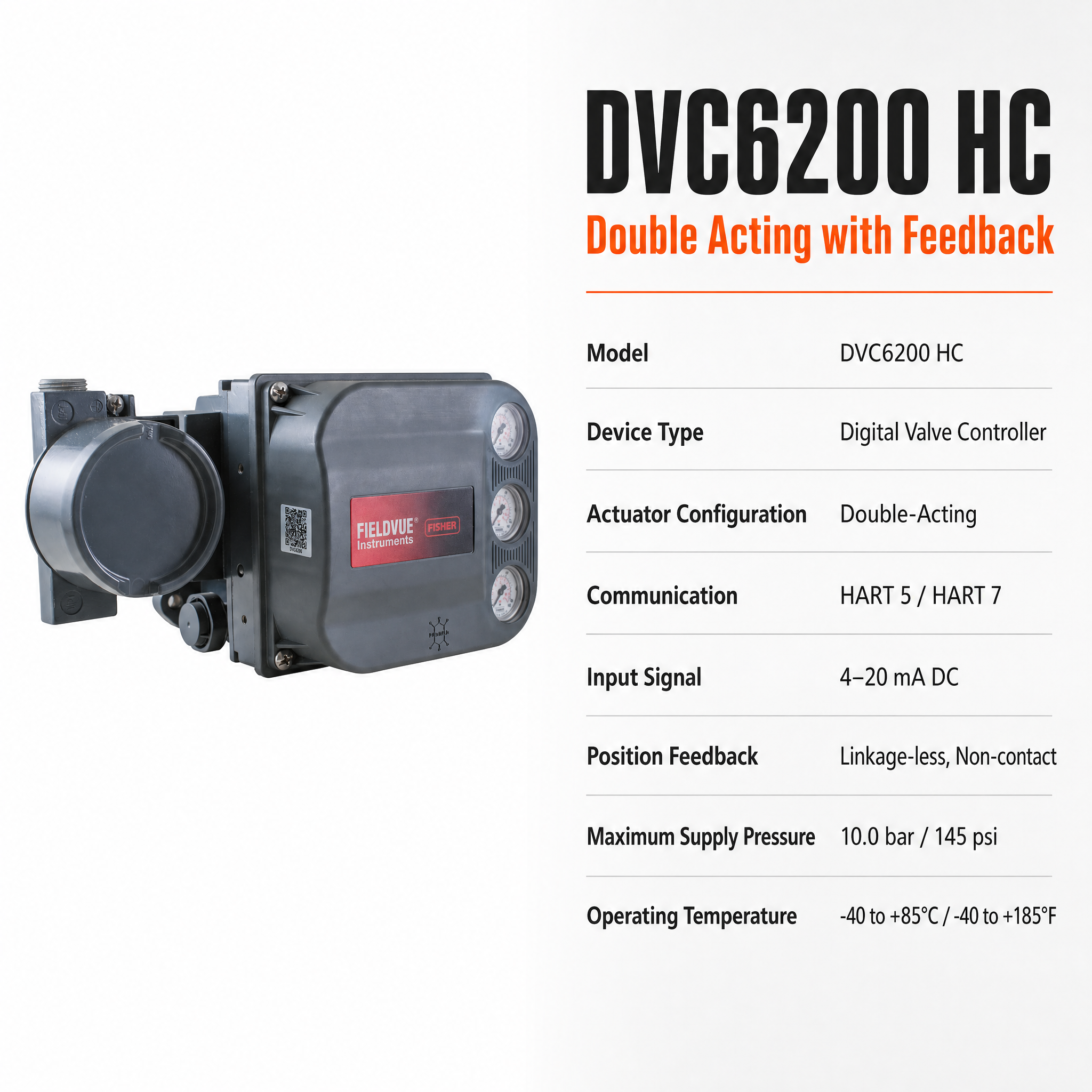

Key Features
- DVC6200 HC configuration
- Double-acting pneumatic operation
- 4–20 mA DC input signal
- HART communication
- Pneumatic output control
- Linkage-less, non-contact position feedback
- Continuous valve position monitoring
- Linear and quarter-turn rotary applications
- Automatic calibration
- Digital valve diagnostics
- Microprocessor-based control
- Operating temperature: -40 to 85°C
- Maximum supply pressure: 10 bar / 145 psi
- Compatible mounting options for various control valve assemblies
Typical Applications
- Double-acting pneumatic control valves
- Process valve automation
- Flow control
- Pressure control
- Temperature control
- Oil & gas
- Petrochemical
- Chemical processing
- Power generation
- Water & wastewater treatment
- General industrial process control
Why Choose DVC6200 HC Double-Acting Positioner?
Double-Acting Control
Provides pneumatic output to both sides of a compatible actuator for reliable bidirectional valve positioning.
Non-Contact Position Feedback
Provides continuous valve position feedback without mechanical linkage, helping minimize wear and maintenance.
HART Communication
Supports configuration, calibration, operating status and diagnostic access through the control loop.
Digital Diagnostics
Helps monitor valve and instrument performance and supports maintenance and troubleshooting.
Automatic Calibration
Simplifies commissioning and helps establish appropriate operating parameters for the connected valve assembly.
Need a Configuration Check?
The DVC6200 HC can be supplied in different configurations depending on the valve type, actuator, feedback arrangement, communication requirements and application conditions.
To help us provide an accurate quotation, please send:
- Product model
- Valve model
- Actuator model
- Input signal
- HART requirement
- Double-acting requirement
- Linear or rotary application
- Required quantity
- Destination country
- Required delivery time
Don't have all the information? Send us a clear photo of your existing positioner, valve or actuator nameplate. Our technical team can help identify the required configuration and check compatibility.
Request a Quote
Get current price, availability and lead time for DVC6200 HC double-acting digital valve positioner.
[Request a Quote →]
