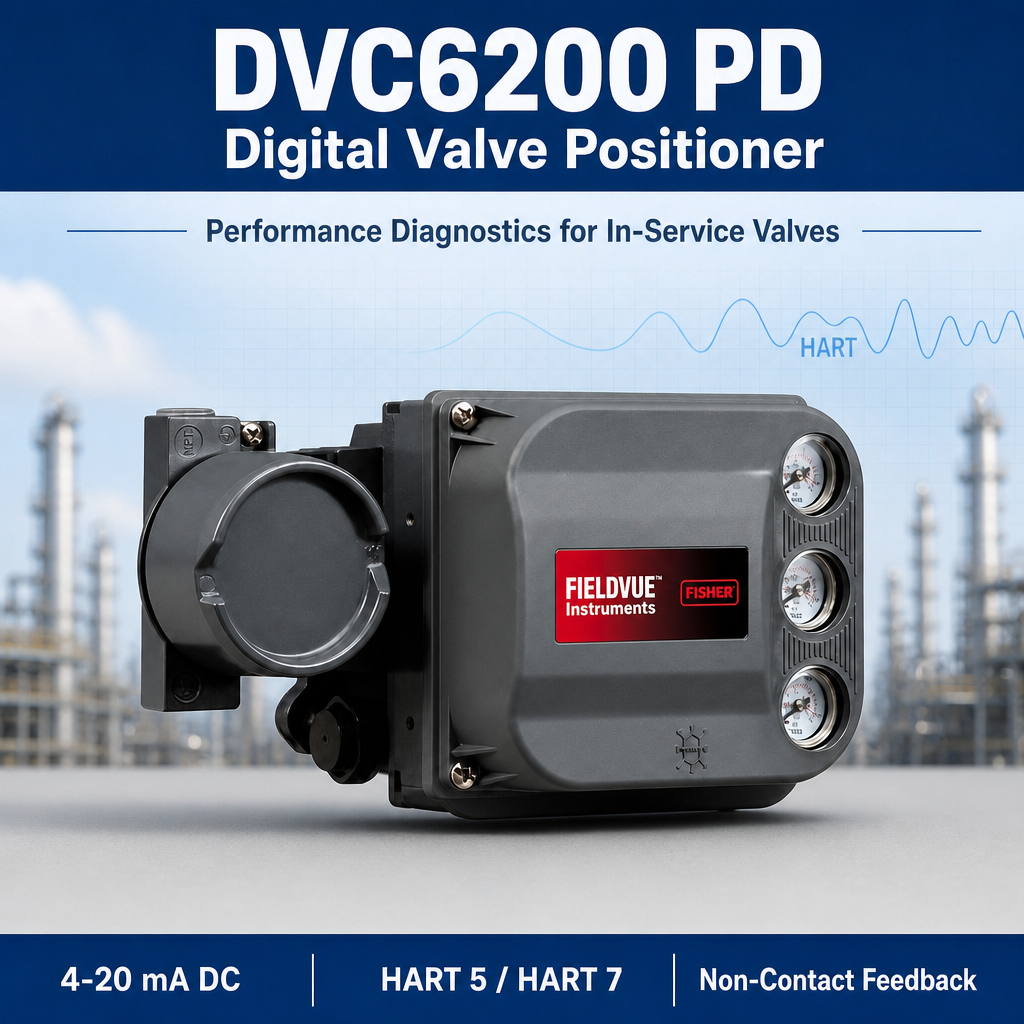

DVC6200 PD is a digital valve positioner designed for pneumatic control valve assemblies where accurate positioning, HART communication and in-service valve performance diagnostics are required.

It converts a 4–20 mA control signal into pneumatic output to control actuator movement and maintain the required valve position. Its linkage-less, non-contact travel feedback reduces mechanical wear associated with conventional feedback mechanisms.

For maintenance and process teams, the key advantage of the DVC6200 PD is not only valve positioning. The PD configuration adds online Performance Diagnostics, providing additional information for evaluating valve friction, electronic condition and mechanical condition while the valve remains in service.

This makes DVC6200 PD a practical choice when the purchasing requirement includes digital control, HART communication and condition-based valve maintenance.

Key Parameters & Configuration

Configuration, relay type, communication revision, gauge options, connection type and other options should be confirmed against the required configuration code before ordering.

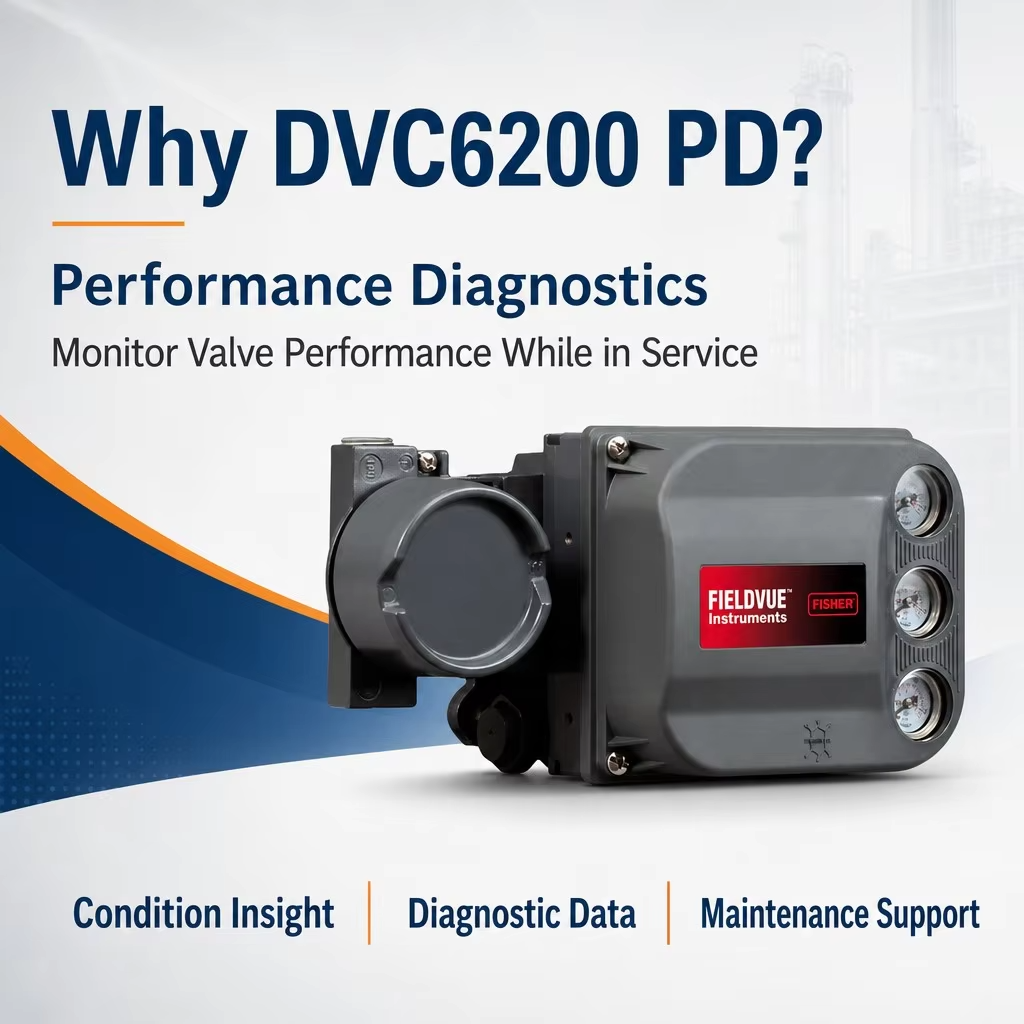

Why DVC6200 PD?

1. Performance Diagnostics for In-Service Valves

The key difference of DVC6200 PD is its Performance Diagnostics capability.

Compared with basic digital positioning, the PD level provides online/in-service diagnostic functions that can help evaluate:

• Valve friction
• Electronic condition
• Mechanical condition
• Valve operating performance

This gives maintenance teams more information for identifying potential valve problems without relying only on periodic manual inspection.

2. Linkage-Less, Non-Contact Feedback

The non-contact travel feedback design eliminates mechanical contact in the position feedback mechanism.

For applications with vibration, continuous valve movement or demanding operating conditions, this design helps reduce wear associated with mechanical linkage components.

3. HART Communication

DVC6200 PD supports digital communication through HART, allowing configuration, operating information and diagnostic data to be accessed through the control loop.

This is particularly useful when the positioner is installed in locations where physical access is inconvenient or where maintenance teams need additional device information remotely.

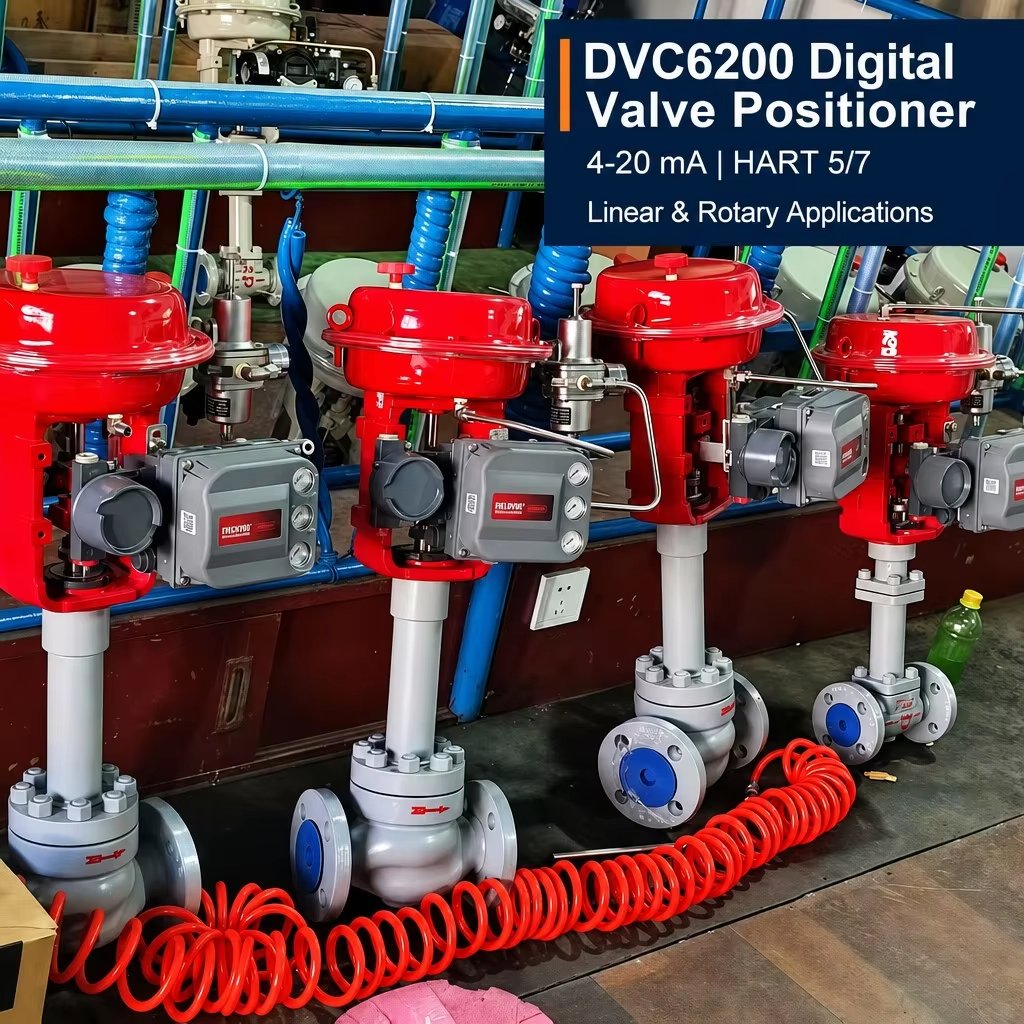

4. Suitable for Different Actuator Configurations

The platform supports single-acting and double-acting pneumatic operation, with the actual relay and pneumatic configuration selected according to the actuator and valve assembly.

For purchasing, this means the positioner should be specified together with the actuator action, valve type, feedback arrangement and required options, rather than selected by model name alone.

5. Practical for Maintenance-Oriented Applications

If the requirement is simply to convert a 4–20 mA signal into pneumatic valve movement, a basic digital positioner may be sufficient.

If the project additionally requires online valve performance information and diagnostic capability, DVC6200 PD provides a more suitable configuration.

Typical Applications

DVC6200 PD can be considered for pneumatic control valve applications where continuous operation and valve condition visibility are important.

Oil & Gas

Control valves in upstream, midstream and downstream applications where maintenance access can be difficult and valve performance needs to be monitored.

Petrochemical & Chemical Processing

Suitable for process control loops where valve friction, mechanical condition and operating performance can affect process stability.

Power Generation

Applicable to pneumatic control valves used in demanding process systems where reliable positioning and maintenance information are important.

Refining & Process Industries

Useful for control valve assemblies where predictive or condition-based maintenance is preferred over relying solely on scheduled inspection.

Industrial Process Control

Suitable for applications requiring 4–20 mA control, HART communication and digital valve diagnostics.

Need a Configuration Check?

DVC6200 PD is configurable equipment. The correct configuration depends on the valve, actuator and project requirements.

Before placing an order, send us the available information below:

• DVC6200 PD model / existing nameplate
• Valve manufacturer and model
• Actuator manufacturer and model
• Single-acting or double-acting actuator
• 4–20 mA control requirement
• HART 5 or HART 7 requirement
• Required pneumatic connection
• Supply air pressure
• Gauge requirement
• Hazardous-area / certification requirements
• Existing configuration code, if available

Have an existing nameplate or configuration code? Send it to us. We can check the configuration before quotation.

Request a Quote

Looking for DVC6200 PD for a new valve assembly or replacement project?

Send us your requirements and we will help confirm the suitable configuration before quotation.

Get a Configuration & Price Check

Submit your requirements → Configuration review → Quotation
