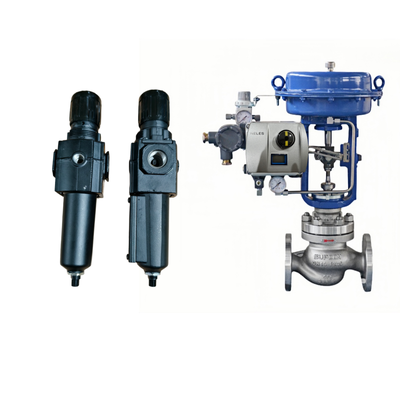

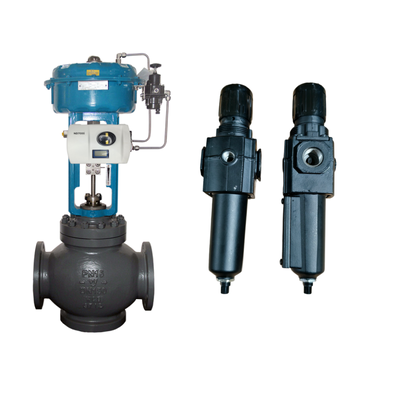

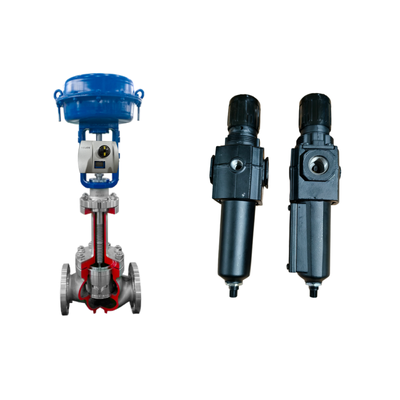

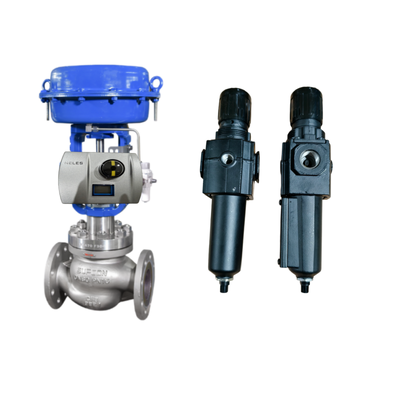

High Quality Norgren B73G Filter Regulator Excelon with Chinese Pressure Regulating Valve Compatible

Product Overview

The Norgren B73G is a general-purpose filter/regulator from the Excelon modular system. It combines particulate and water removal with precise pressure regulation in a compact unit designed for industrial compressed-air systems. Available in port sizes from ¼" to ½" (ISO G or PTF), it supports both in-line and modular installation with other Excelon products.

Key Features

• High-efficiency water and particle filtration (standard 40 µm element; 5 µm optional)
• Quick-release bayonet bowl for fast service
• Push-to-lock adjusting knob with optional tamper-resistant cover
• Relieving diaphragm (standard) or non-relieving option
• Manual (¼-turn) or automatic float-operated drain
• Transparent polycarbonate, guarded polycarbonate, or aluminium metal bowl with prismatic liquid-level indicator
• Gauge ports for monitoring or additional regulated outlets

Technical Specifications

Applications

Industrial compressed-air preparation for pneumatic tools, cylinders, valves, actuators, and general factory automation where clean, regulated air is required.

Frequently Asked Questions

Q: Can the B73G be used with fluids other than air?

A: No. It is intended for industrial compressed-air systems only. Consult Norgren for other media.

Q: When should a metal bowl be selected?

A: When the environment contains solvents, ester-based oils, or other substances incompatible with polycarbonate, or when higher pressure/temperature is required.

Q: How is the pressure setting locked?

A: Push the knob down (knob models) or tighten the lock-nut (T-bar models). A tamper-resistant cover is available.
