Neles ND9103HX8T / ND9106HX8T Intelligent Valve Positioner

Product Overview

The Neles ND9103HX8T and ND9106HX8T are intelligent digital valve positioners from the ND9000 series. They are used to control pneumatic valve actuators by converting a 4–20 mA control signal into pneumatic output and continuously monitoring valve position.

The two models are designed for different actuator configurations. ND9103HX8T is for single-acting actuators, while ND9106HX8T is for double-acting actuators.

The ND9000 platform supports both linear and rotary valves and provides local or remote configuration, valve diagnostics and digital communication. The positioner can also be mounted on different actuator types with suitable mounting arrangements.

For replacement projects, the actuator type, communication protocol, mounting arrangement and existing positioner model should be checked before ordering.

Technical Specifications

Final specifications depend on the complete model code and selected configuration. Air pressure range, certifications, feedback options and mounting details should be confirmed against the nameplate or ordering code before purchase.

Application Industry

The ND9103HX8T and ND9106HX8T are used in process control systems where pneumatic valves require electronic position control and diagnostic functions.

Typical application areas include:

• Oil & Gas — process valves, pipelines and production facilities

• Petrochemical — flow and process control

• Chemical Processing — automated control valve systems

• Power Generation — pneumatic valve control in plant systems

• Pulp & Paper — process control applications

• Water & Wastewater — automated process valves

• Marine and Offshore — applications requiring suitable approved configurations

• General Process Automation — linear and rotary control valves

The ND9000 platform is designed to interface with major DCS systems and can be fitted to Neles or third-party actuators with appropriate mounting kits.

Common Problems

Positioner Does Not Respond to the 4–20 mA Signal

Check the loop wiring, input signal and power conditions first. The positioner configuration should also be checked to ensure that the input signal is correctly recognized.

Valve Does Not Reach the Required Position

Check the actuator type, valve travel, mounting alignment and calibration settings. For replacement installations, the positioner should be configured according to the actual valve and actuator.

Calibration Fails

Check the mechanical coupling between the positioner and actuator. Incorrect mounting or unsuitable travel settings can affect the calibration process.

Air Output Is Not Correct

Check the instrument air supply, pneumatic connections and actuator configuration. ND9103HX8T and ND9106HX8T are intended for different actuator arrangements, so the model should match the actuator type.

HART Communication Is Not Available

Check the loop wiring and HART communication connection. The control system or handheld communicator should also be compatible with the selected positioner configuration.

Diagnostic Information Is Not Available

Available diagnostics depend on the positioner configuration and communication setup. Check the communication interface and configuration before replacing the unit.

Replacement Models

The ND9103HX8T and ND9106HX8T should not be treated as interchangeable simply because they belong to the same ND9000 series.

The main difference is the actuator configuration:

For a replacement order, the existing positioner model should therefore be checked first.

Other ND9000 models, such as ND9102, ND9203 and ND9206, have different configurations or functions and should only be considered after checking the complete model code.

For replacement applications, please provide:

• Existing positioner model

• Actuator type

• Valve type

• Valve travel or rotation

• Input signal

• Communication protocol

• Air supply

• Mounting arrangement

• Required certifications

• Operating temperature

Why Buy From Us

Model-Based Product Supply

We supply industrial valve positioners according to the actual model and configuration required by the project.

Replacement Checking

If you are replacing an existing ND9000 positioner, you can send us the nameplate or model code. We can check the main configuration differences before quotation.

Valve & Instrument Supply

Our product range covers valve positioners, control valves, electric and pneumatic actuators, process instruments and related valve accessories.

Project Support

For industrial projects, we can assist with product selection, quotation, spare-part sourcing and international delivery.

Multi-Brand Procurement

If your project uses different valve and instrumentation brands, related products can be sourced together according to the project requirements.

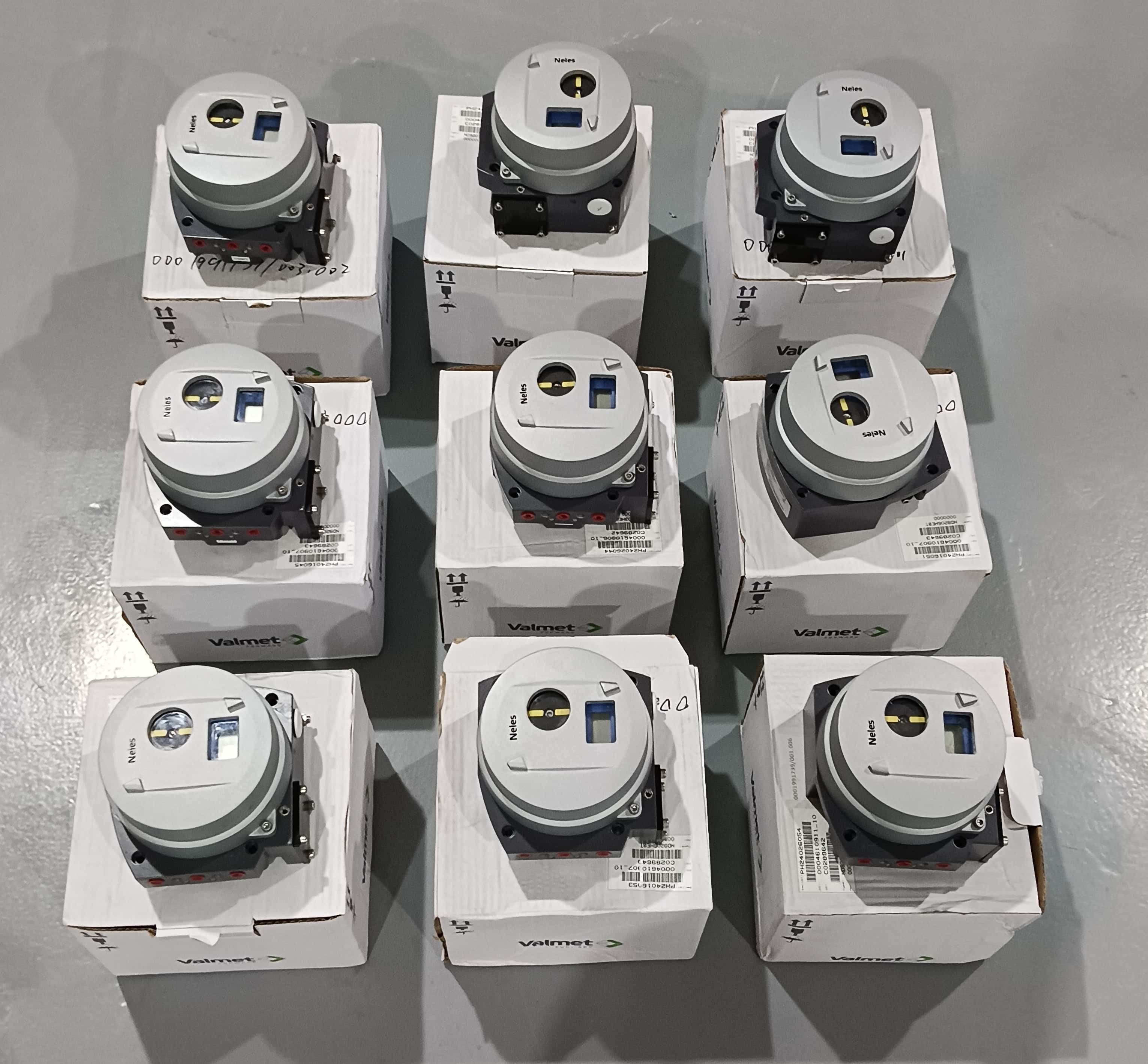

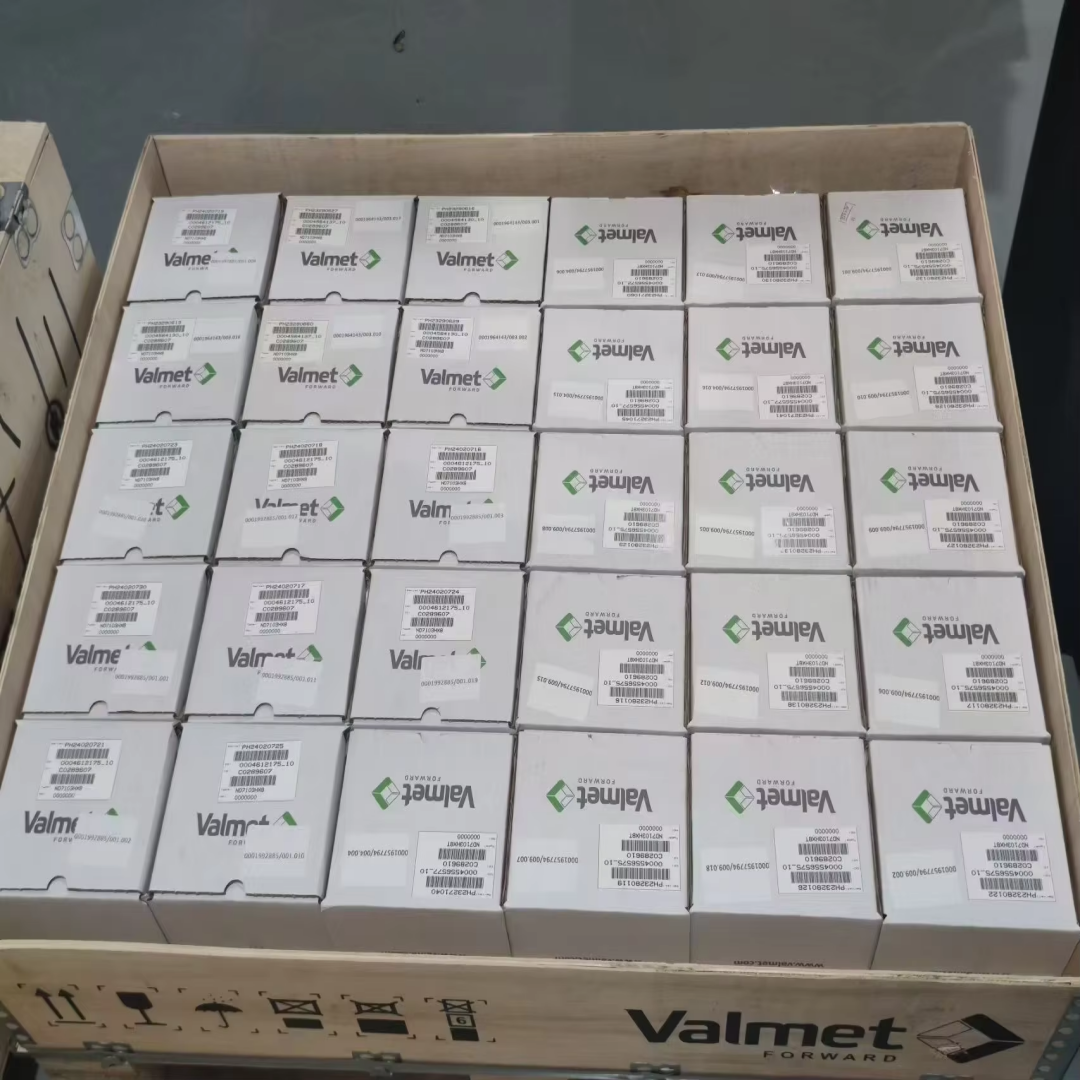

Stock & Delivery Time

Stock availability for ND9103HX8T and ND9106HX8T depends on the exact configuration, quantity and current supply schedule.

Standard configurations may have different availability from special configurations with specific certifications, mounting arrangements or other options.

For an accurate delivery estimate, please provide the exact model, quantity and destination country. Current stock and lead time should be confirmed before order placement.

RFQ Form

Product: Neles ND9103HX8T / ND9106HX8T Valve Positioner

Model:
ND9103HX8T or ND9106HX8T

Quantity:
Required quantity

Existing Positioner:
Model / nameplate information

Actuator Type:
Single-acting / Double-acting

Valve Type:
Linear / Rotary

Input Signal:
4–20 mA or other requirement

Communication:
HART or required communication protocol

Air Supply:
Required or existing air supply

Mounting:
Existing actuator or mounting kit information

Application:
Oil & gas, chemical, power, water treatment or other industry

Destination:
Country / city

Required Delivery Date:
Project delivery requirement

For replacement projects, sending the existing positioner nameplate photo is recommended. It helps us check the exact model code and configuration before quotation.
