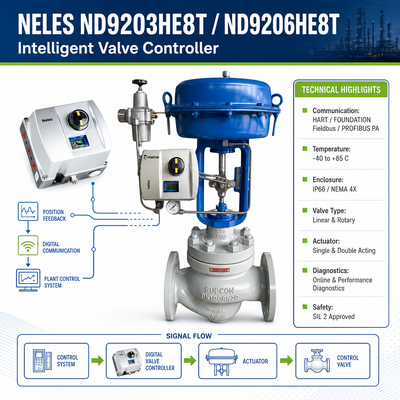

Neles ND9203HE8T ND9206HE8T Valve Positioner

Product Overview

The Neles ND9203HE8T and ND9206HE8T are digital valve positioners from the ND9000 series, designed for pneumatic control valve applications. They use digital position control and provide configuration and diagnostic functions for industrial valve operation.

The ND9200 series is used with valve and actuator arrangements where reliable position feedback and pneumatic control are required. The ND9203HE8T and ND9206HE8T configurations are associated with different actuator operating requirements, so the exact model should be selected according to the existing valve and actuator.

The positioner can be used with linear or rotary valve applications depending on the selected configuration and mounting arrangement. Its digital functions allow valve position, operating parameters and diagnostic information to be monitored during commissioning and maintenance.

For replacement projects, the existing positioner model, actuator type, valve travel, input signal and communication requirement should be checked before ordering.

Technical Specifications

Specifications can vary with the exact option code and configuration. Please confirm the complete model code before quotation or replacement.

The ND9000 documentation confirms the loop-powered 4–20 mA input, HART 6/7 options, IP66/NEMA 4X enclosure, 1/4 NPT pneumatic ports, and the listed electrical characteristics.

Application Industry

The ND9203HE8T and ND9206HE8T can be used in industrial process control systems where pneumatic valves require digital position control and monitoring.

Oil & Gas

Used for pneumatic control valves in oil and gas processing, transmission and related process systems.

Chemical & Petrochemical

Suitable for process valve applications where valve position needs to be controlled and monitored as part of an automated process loop.

Power Generation

Can be used with pneumatic control valves in steam, water and other process control systems.

Pulp & Paper

Applicable to continuous process systems where stable pneumatic valve operation and diagnostic information are required.

Water & Wastewater

Can be considered for automated valve control in water treatment and process water systems.

General Process Automation

The positioner can be applied to industrial control valves using compatible pneumatic actuators and mounting arrangements.

The ND9000 family is documented for use with both linear and rotary valve applications and provides digital diagnostics for valve and positioner operation.

Common Problems

Positioner Does Not Respond to the Control Signal

Check the 4–20 mA loop, power supply and electrical connections first. The positioner is loop powered, so insufficient loop current or incorrect wiring can affect operation.

Valve Position Does Not Match the Setpoint

Check the mechanical coupling between the positioner and actuator, valve travel settings and calibration. Incorrect mounting or configuration can result in position deviation.

Calibration Cannot Be Completed

Check the actuator movement, positioner mounting and pneumatic supply. The actuator must provide the required movement for the positioner to complete its calibration procedure.

Pneumatic Output Is Unstable

Check the instrument air supply and pneumatic tubing. Contamination in the air system or leakage around pneumatic connections can also affect actuator movement.

HART Communication Is Not Available

Check the loop wiring, electrical load and HART communication settings. The selected HART version and configuration should also be confirmed.

Position Feedback Is Incorrect

Inspect the mechanical coupling and position sensor arrangement. The positioner should be correctly aligned with the valve or actuator before calibration.

Replacement Models

For replacement work, the ND9203HE8T and ND9206HE8T should be selected according to the actuator operating mode and complete configuration rather than by model number alone.

Other Neles ND-series positioners may be considered for replacement depending on the valve and actuator arrangement. Possible models within the same product family include:

• ND9103HX8T

• ND9106HX8T

• ND9203HE8T

• ND9206HE8T

• Other ND9000 configurations

The suffix configuration is important. Available product information identifies 03 configurations with single-acting operation and 06 configurations with double-acting operation, while the HE/HX designation relates to the corresponding positioner configuration. The exact replacement should therefore be checked against the existing nameplate and actuator.

For a replacement inquiry, please provide:

• Existing positioner model

• Valve model

• Actuator model

• Single- or double-acting actuator

• Valve type

• Valve travel or rotation

• Input signal

• Communication requirement

• Existing mounting arrangement

Why Buy From Us

Exact Model Sourcing

We supply industrial valve positioners by model number and configuration, including Neles ND-series products.

Configuration Check

For ND9203HE8T and ND9206HE8T inquiries, we can check the actuator type, signal, communication requirement and other key configuration details before quotation.

Valve & Instrument Supply

Our product range covers control valves, valve positioners, electric and pneumatic actuators, pressure transmitters, flowmeters and other process instrumentation.

Replacement Project Support

If you are replacing an existing Neles positioner, you can provide the nameplate or model number. We can help identify the main specifications that need to match.

International Order Support

We support industrial buyers with quotation, procurement coordination, packaging and international delivery arrangements.

Stock & Delivery Time

Availability of ND9203HE8T and ND9206HE8T depends on the exact configuration, quantity and current supply status.

Standard configurations and special option combinations may have different lead times. For project orders, the actual model code should be confirmed before the delivery schedule is quoted.

Please provide the model, quantity and destination country when requesting a quotation so the current availability and estimated delivery time can be checked.

RFQ Form

Product: Neles ND9203HE8T / ND9206HE8T Valve Positioner

Required Model:
ND9203HE8T / ND9206HE8T

Quantity:
Required quantity

Existing Valve:
Valve brand and model

Actuator:
Actuator brand and model

Acting Type:
Single-acting / Double-acting

Input Signal:
4–20 mA or other requirement

Communication:
HART 6 / HART 7 / other requirement

Valve Type:
Linear / Rotary

Valve Travel:
Required travel or rotation

Application:
Oil & gas / chemical / power / water / other

Delivery Destination:
Country / city

Required Delivery Date:
Project schedule or target date

For replacement orders, please send the existing positioner nameplate or a clear product photo if available. This helps us check the model and configuration before quotation.
