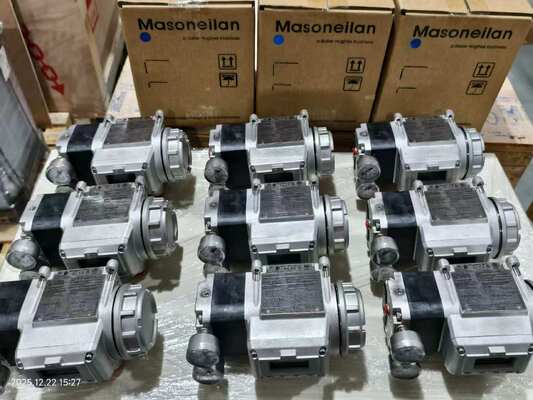

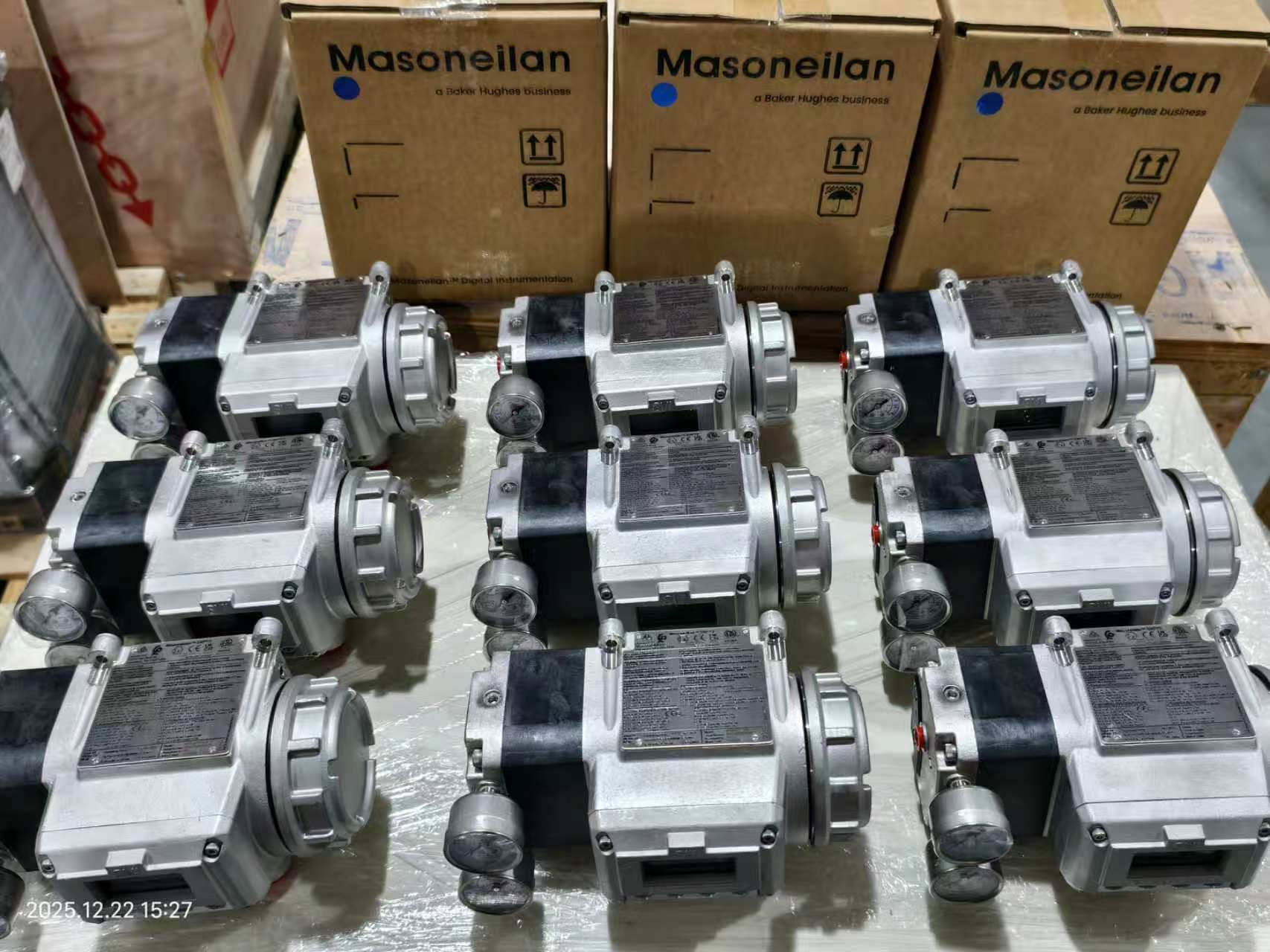

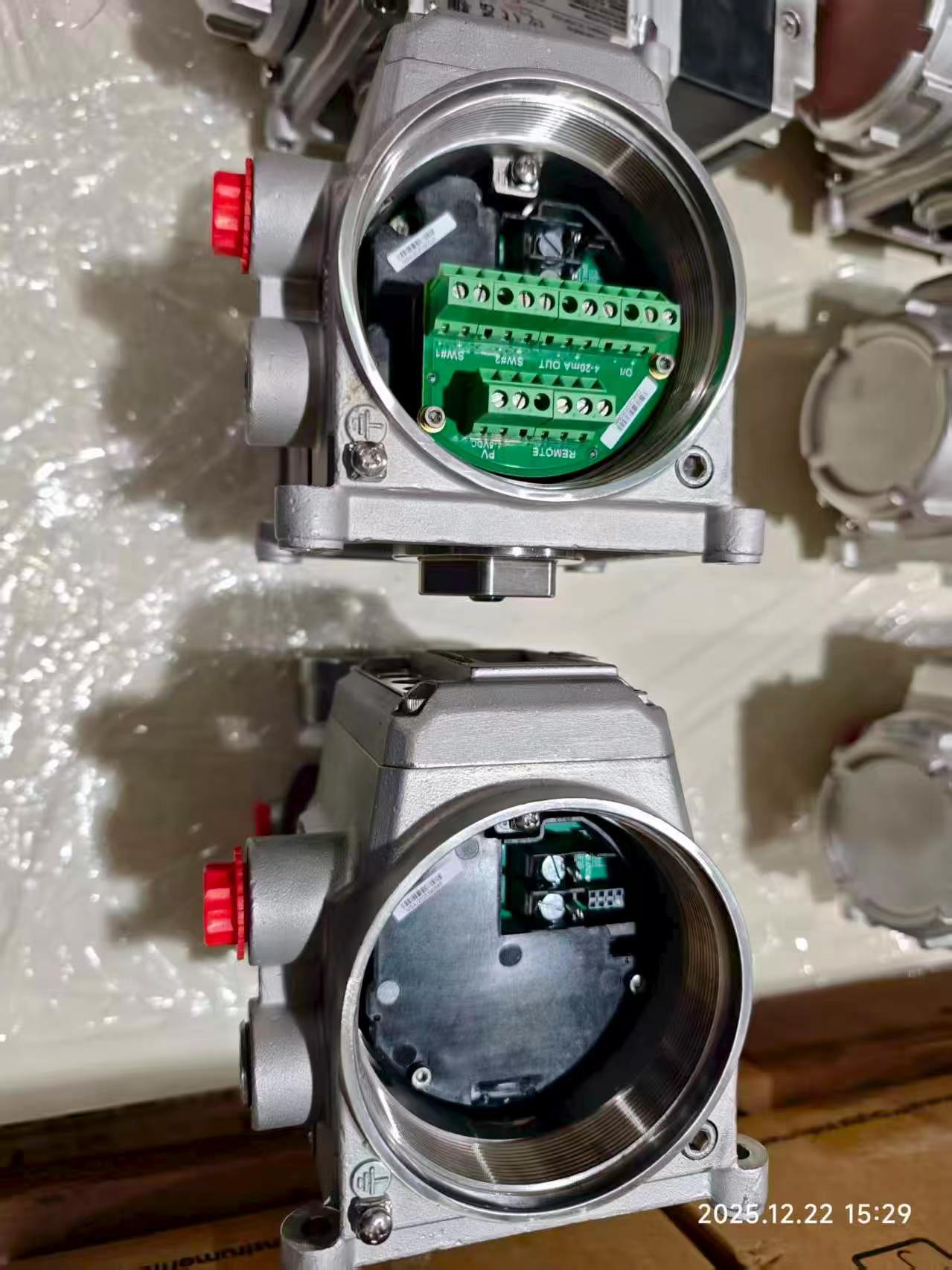

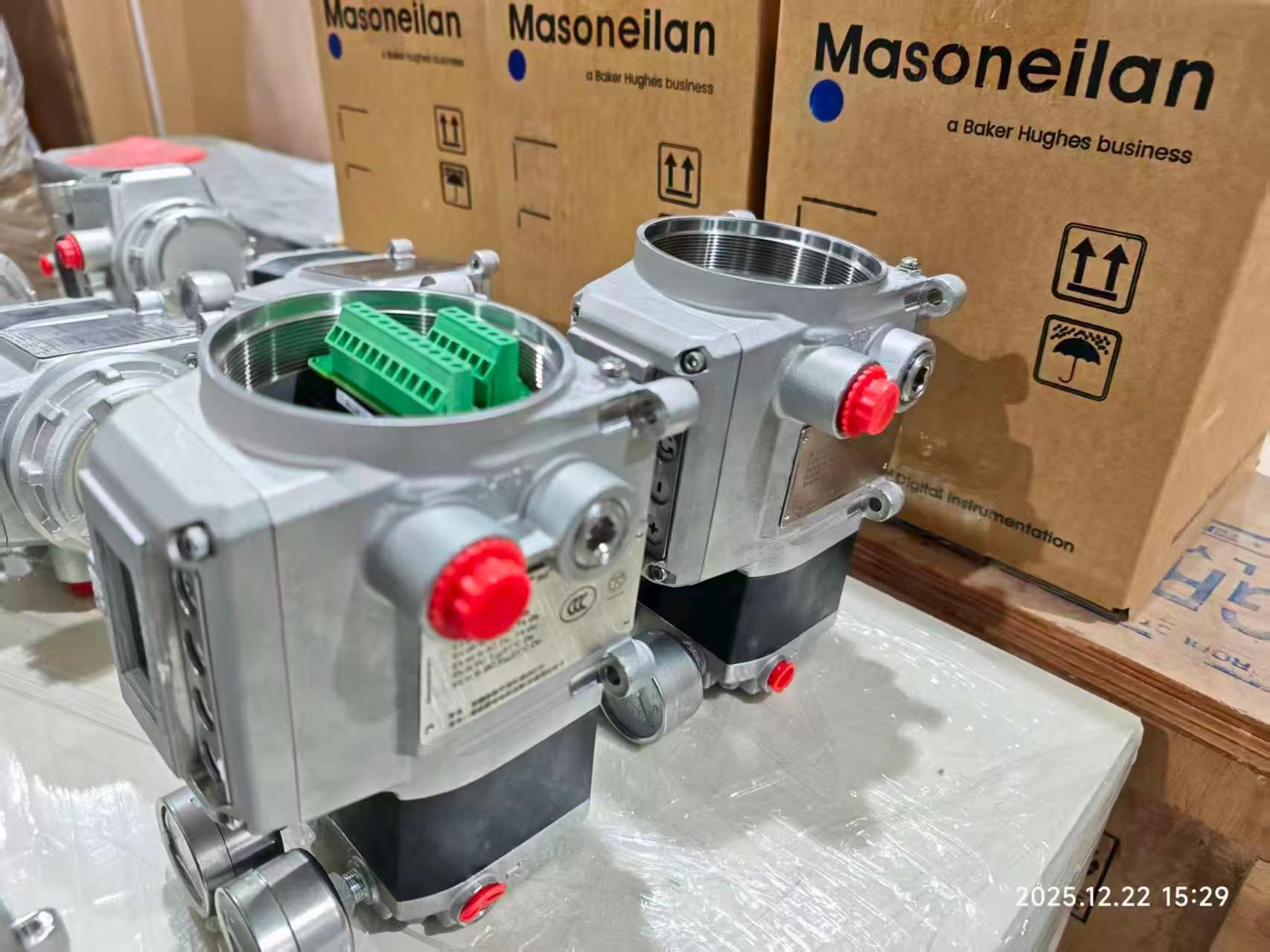

Masoneilan SVI3 Digital Valve Positioner HART 7 4-20mA for Pneumatic Valves

Product Overview

The Masoneilan SVI3 is the third-generation digital valve positioner from Baker Hughes. It controls pneumatic actuators using a two-wire 4-20mA control signal with HART 7 communication. Built on over 20 years of field-proven valve position sensing technology, it uses advanced control and diagnostic algorithms along with non-contact position sensing to deliver accurate, responsive, and reliable positioning performance.

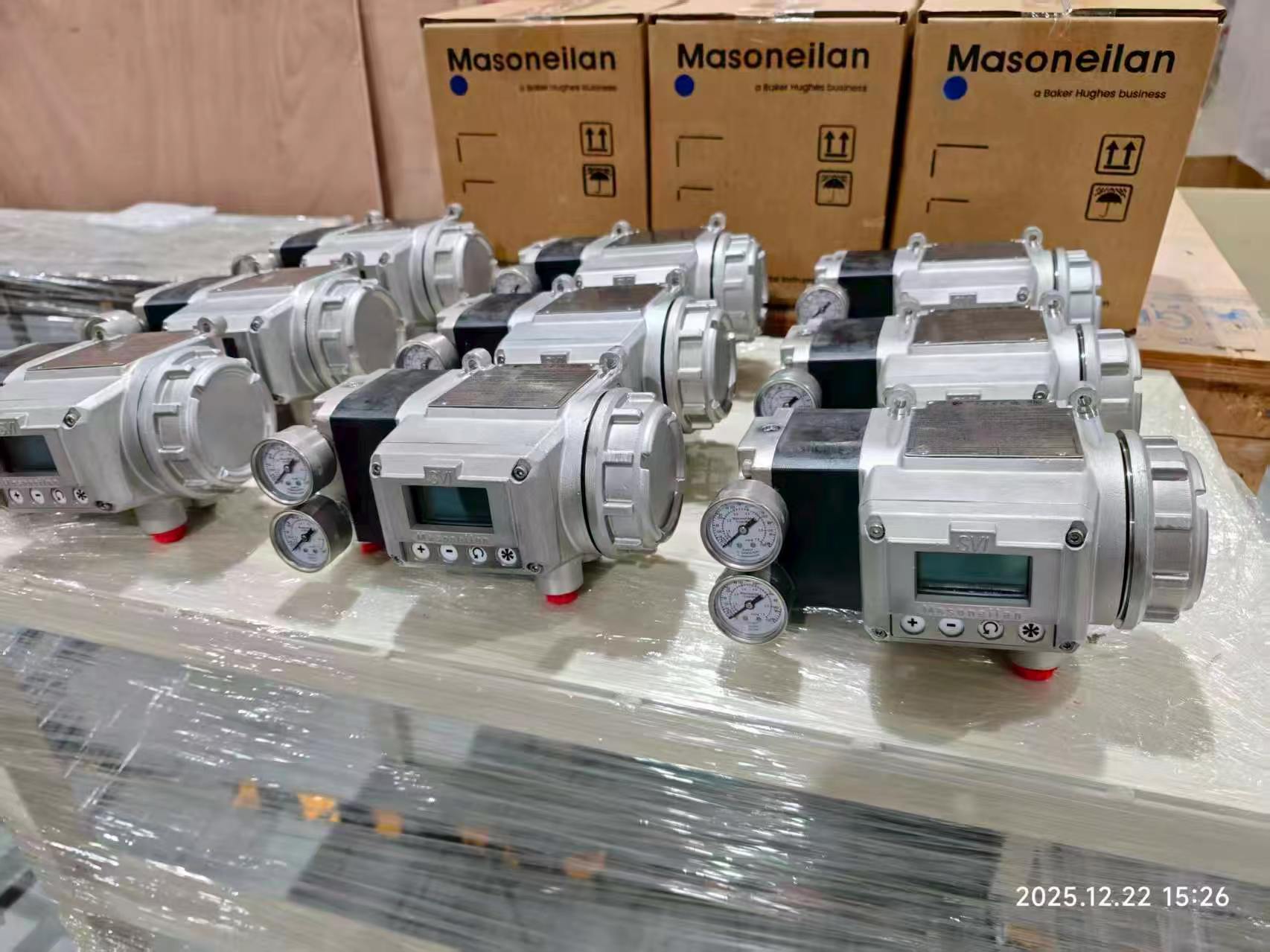

The non-contact position sensing reads through the housing, so no mechanical moving parts enter the main housing cavity. The operating temperature range extends down to -55°C for arctic conditions. A standout feature is the Smart Cal single-button setup and calibration, which simplifies commissioning. The local user interface includes a high-contrast graphical display and pushbuttons rated for hazardous locations. The device integrates with all leading control systems via DTM and EDD support.

The SVI3 includes 19 new online valve diagnostics that continuously monitor valve health while in operation. Up to 1 year of diagnostic data is stored on the device, enabling trend analysis before problems impact plant operation. Steady-state air consumption is reduced by 40% compared to previous generations, while air delivery is improved by 15% for faster actuation.

Technical Specifications

Application Industry

The Masoneilan SVI3 is used in power generation, refining, petrochemicals, midstream oil and gas, and upstream oil and gas. Key applications include steam turbine generators, condensers, cooling towers, reactor buildings, turbine buildings, heat recovery steam generators, balance of plant, distillation, hydroprocessing reforming, cracking, secondary blending, quenching and fractioning, charge gas compression, separation, pipeline integrity operations, dehydration, refrigeration, liquefaction, loading and shipping, regasification, and compression.

Common Problems

• Smart Cal fails to complete: Check supply pressure is within 20-120 psi. Verify valve travel limits are within the rated range. Ensure the valve is not stuck or binding.

• Position oscillation or cycling: Check whether stick slip is present. If position cycles are much greater than setpoint cycles, the positioner may be causing the cycling. Inspect for a handwheel blocking valve stroke, a broken stem, or disconnected position feedback components.

• Communication failure with HART handheld: Verify loop resistance is adequate. Check terminal voltage meets compliance requirements (9Vdc @ 20mA, 11Vdc @ 4mA). Dual channel barriers can apply excessive loop resistance and cause compliance voltage problems.

• Low power error (LOW_POWER): Input current below 3.15 mA. Increase loop current to 4 mA for calibration and diagnostics.

• TuneERR appears after autotune: Manual tuning may be required. Refer to the troubleshooting section in the instruction manual.

• SelfCheckError or hardware failure: Remove power for two minutes and restart. Clear the alarm using ValVue or HART Host. If the failure persists, replace the electronics module.

Replacement Models

The Masoneilan SVI3 is the direct replacement for the SVI II AP and SVI1000. It features stainless steel mounting brackets for any valve/actuator combination and is fully backwards compatible with SVI II AP and SVI1000 mounting brackets. For SVI II AP users, the upgrade is relatively simple — existing mounting can be used, and only the air/tubing connection may need adjustment. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
