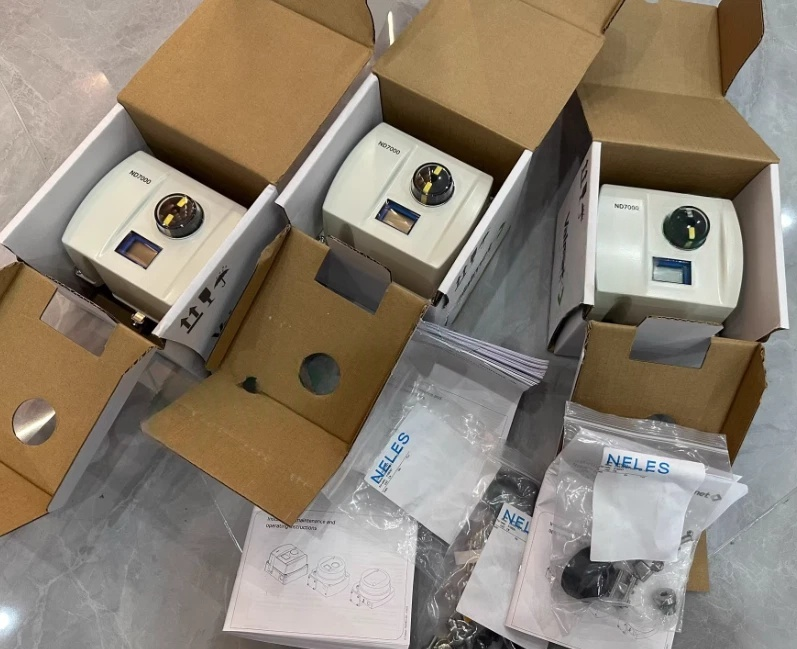

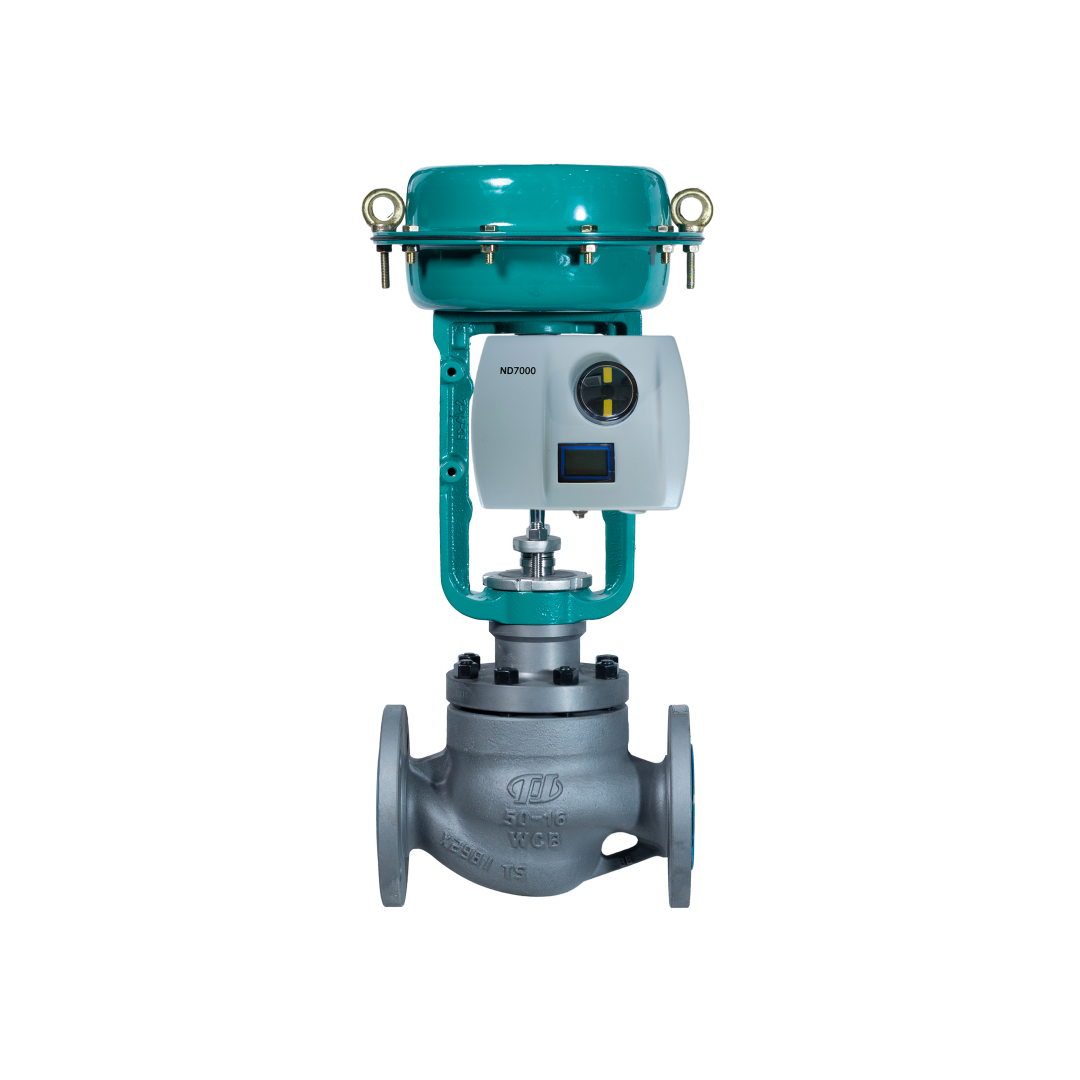

Neles ND7000 Smart Digital Valve Controller HART 4-20mA for Control Valves

Product Overview

The Neles ND7000 is a microcontroller-based intelligent valve controller designed to operate on every control valve actuator and in all industry areas. It is a 4-20mA powered device that continuously compares the input command signal with the actual valve position and adjusts the actuator accordingly. The ND7000 is a smart, reliable and future-proof positioner with lifetime support.

The unit uses contactless valve position measurement, so there are no mechanical wearing parts in the feedback path. It supports both rotary and linear valves, and the same device can be used for single-acting and double-acting actuators. Commissioning is simple with the Local User Interface (LUI) or remote DTM/EDD configuration. A 1-point calibration feature allows installation on valves that are in process without disturbing operation.

The ND7000 is certified SIL 2 by TÜV according to IEC 61508. It features basic device diagnostics including self-diagnostics, deviation trend, counters, and extended off-line tests. The device is designed to operate in harsh environmental conditions with a rugged modular design, excellent temperature characteristics, and vibration and impact tolerance.

Technical Specifications

Application Industry

The Neles ND7000 is used in oil and gas, chemical processing, power generation, mining, and general industrial automation. The device can be integrated with all major DCS systems and supports mounting kits for any third-party actuators. It is fully compatible with different manufacturers' systems and equipment.

Common Problems

• A change in valve position setpoint will not affect actuator position: Check supply pressure (may be too low), spool valve sticking, incorrect configuration parameters, actuator or valve jammed, signal wires incorrectly connected, or calibration not carried out.

• Actuator goes to end position with small input signal change: Tubes between controller and actuator are incorrect. Check parameter settings PFA and ROT.

• Inaccurate positioning: Spool valve dirty, too high actuator load, supply pressure too low, spool or pressure sensors defective, or actuator leakage.

• Overshooting or positioning too slow: Change PERF value, spool valve dirty, supply air tube too small, or supply air filter dirty.

Replacement Models

The Neles ND7000 is a mature intelligent valve controller platform. The ND9000 series is the next-generation upgrade with enhanced diagnostics and fieldbus options. The ND7000 serves as a direct replacement for legacy NE700/NP700 positioners. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
