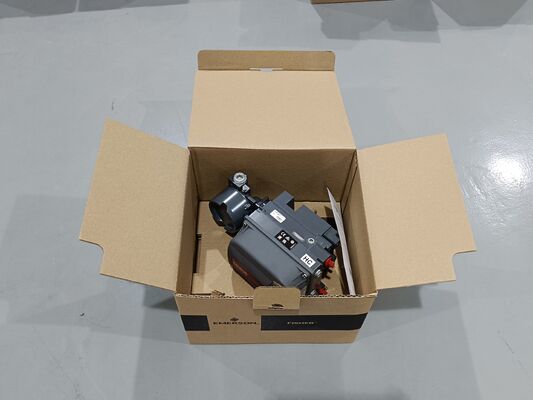

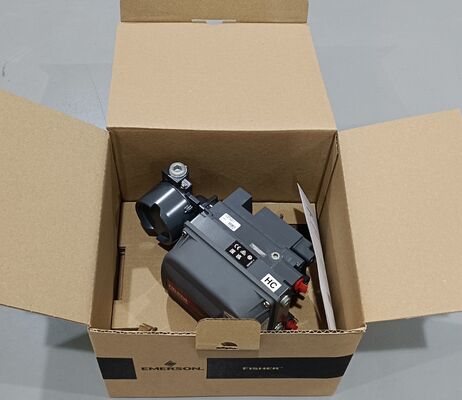

Fisher DVC6200 Digital Valve Positioner with HART Communication and 4-20 mA Signal for Explosion Proof Applications

Product Overview

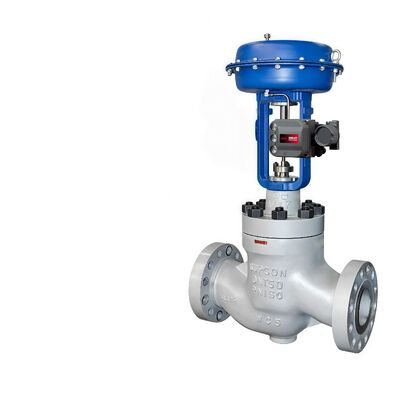

The Fisher DVC6200 digital valve controller uses HART communication to link a control system with a pneumatic actuator. It accepts a two-wire 4-20 mA signal and delivers a proportional pneumatic output to position the valve. The unit is built to replace analog positioners on most pneumatic actuators without adapter hardware. A magnetic, non-contacting position sensor eliminates linkage wear and increases cycle life. The encapsulated electronics module withstands high vibration, temperature swings, and contaminated plant air.

Technical Specifications

Application Industry

The DVC6200 serves refining, chemical, nuclear, oil and gas, power generation, pulp and paper, food and beverage, water and wastewater, pharmaceutical, and metals and mining industries. It is used for flow, pressure, temperature, and level control loops.

Common Problems

• No communication: verify power supply, terminal voltage (9–32 VDC), and wiring on the printed wiring board.

• Valve does not fully stroke: check pneumatic tubing and supply pressure; confirm function block is in the correct mode.

• I/P converter output out of specification: possible defective module base seal, relay, or 67CFR regulator.

Replacement Models

The DVC6200 retrofits existing analog positioner installations and is a common upgrade from the DVC2000. For other brands, confirm mounting, travel, and protocol compatibility before ordering.
