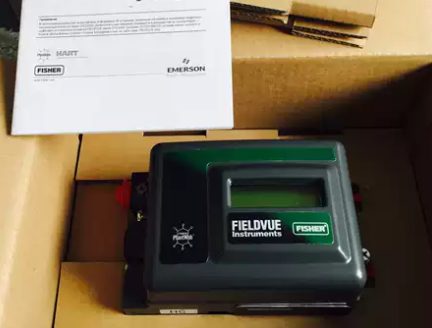

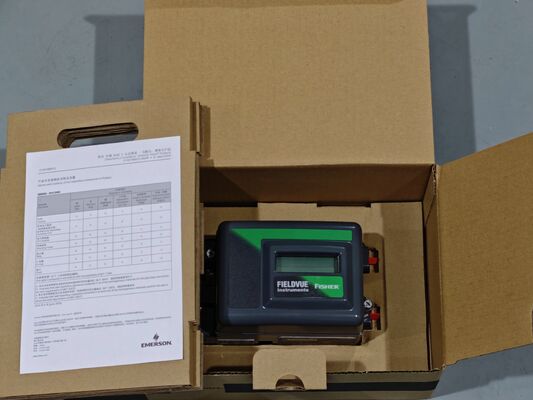

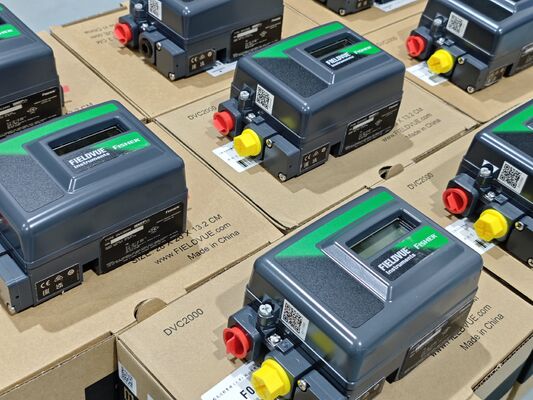

Fisher DVC2000 Compact Digital Valve Positioner with HART Communication and Self-Diagnostic for Pneumatic Valves

Product Overview

The Fisher DVC2000 is a compact digital valve controller that communicates via HART. It accepts a 4-20 mA input signal and produces a pneumatic output to drive single-acting actuators. The unit mounts directly to the actuator yoke using a three-point interface pad, simplifying installation.

Position feedback is magnetic and non-contacting — no parts rub together, extending cycle life. A local operator interface with an LCD permits setup, calibration, and tuning at the valve, eliminating the need for a separate handheld. The two-stage positioner design reacts quickly to small input changes for tighter process control. The instrument continuously self-diagnoses for abnormal conditions while powered; if a fault occurs, an alert symbol appears on the default screen.

Technical Specifications

Application Industry

The DVC2000 is utilized in chemical, oil and gas, refining, pulp and paper, power, food and beverage, pharmaceutical, and other process industries. It manages flow, pressure, temperature, and level control. The compact size and simple setup make it well-suited for standard control valves with short strokes and routine procedures.

Common Problems

• Instrument will not communicate: Check available voltage. Confirm terminal voltage is within 9–32 VDC and inspect wiring connectors on the printed wiring board.

• Flash ROM Fail: Restart the instrument. If the failure does not clear, replace the printed wiring board assembly.

• Valve does not respond to control signals: Check pneumatic connections and supply pressure. Verify function block is in the correct mode.

• Display shows alert symbol ⚠️: The DVC2000 self-diagnoses continuously. Check the alert record, which stores up to 20 alerts from Valve Alerts or Failure Alerts groups.

Replacement Models

The DVC2000 is a standard control valve positioner. The DVC6200 can directly replace the DVC2000 in many applications — same product line and compatible mounting. The DVC6200 offers advanced diagnostics and linkless feedback for critical control valves, while the DVC2000 remains a practical choice for routine applications. For cross-vendor alternatives, verify mounting, travel range, and communication protocol before ordering.
