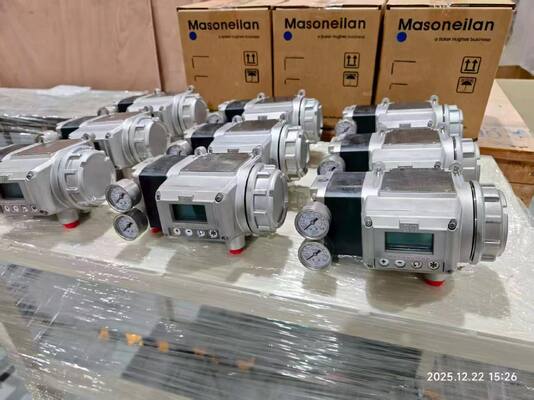

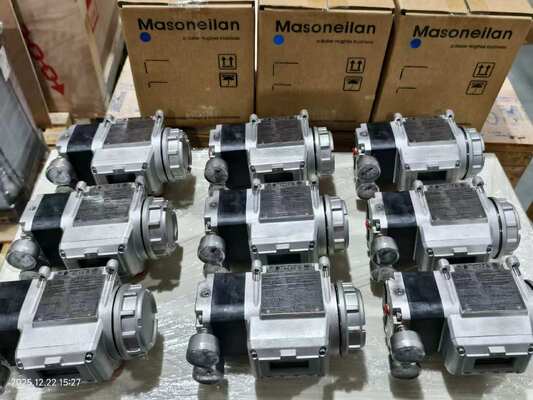

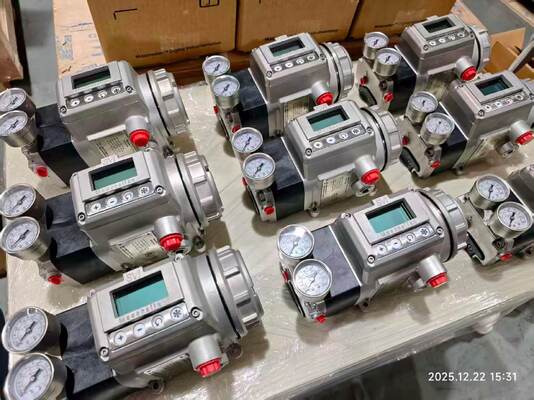

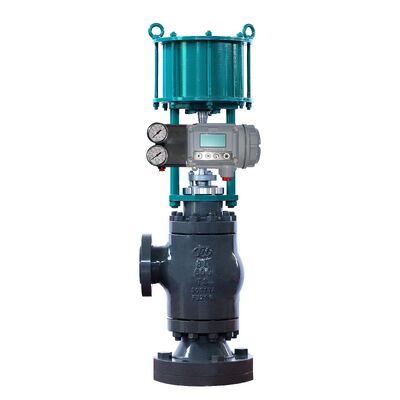

Masoneilan SVI3 Digital Valve Positioner with HART 7 Communication 4-20mA Loop and Advanced Diagnostics

Product Overview

The Masoneilan SVI3 is a third-generation digital valve positioner that uses HART 7 communication over a two-wire 4-20mA loop. It drives pneumatic actuators with high precision and includes advanced diagnostics for continuous valve monitoring. The non-contact position sensor reads through the housing, eliminating mechanical wear points. The device operates down to -55°C, making it suitable for extreme climates.

The local interface features a high-contrast graphical display and pushbuttons rated for hazardous areas. Smart Cal enables one-button setup and calibration, reducing commissioning time. The positioner stores up to one year of diagnostic data on-board, allowing trend analysis without external tools. It integrates with major control systems via DTM and EDD support.

Steady-state air consumption is 40% lower than earlier models, and air delivery is 15% higher for faster stroking. The SVI3 includes 19 online valve diagnostics that monitor valve health while the process is running, helping predict maintenance needs before failures occur.

Technical Specifications

Application Industry

The Masoneilan SVI3 is used in power generation, refining, petrochemicals, midstream oil and gas, and upstream oil and gas. Key applications include steam turbine generators, condensers, cooling towers, reactor buildings, turbine buildings, heat recovery steam generators, balance of plant, distillation, hydroprocessing reforming, cracking, secondary blending, quenching and fractioning, charge gas compression, separation, pipeline integrity operations, dehydration, refrigeration, liquefaction, loading and shipping, regasification, and compression.

Common Problems

• Smart Cal fails to complete: Check supply pressure is within 20-120 psi. Verify valve travel limits are within the rated range. Ensure the valve is not stuck or binding.

• Position oscillation or cycling: Check whether stick slip is present. If position cycles are much greater than setpoint cycles, the positioner may be causing the cycling. Inspect for a handwheel blocking valve stroke, a broken stem, or disconnected position feedback components.

• Communication failure with HART handheld: Verify loop resistance is adequate. Check terminal voltage meets compliance requirements (9Vdc @ 20mA, 11Vdc @ 4mA).

• Low power error (LOW_POWER): Input current below 3.15 mA. Increase loop current to 4 mA for calibration and diagnostics.

• TuneERR appears after autotune: Manual tuning may be required. Refer to the troubleshooting section in the instruction manual.

• SelfCheckError or hardware failure: Remove power for two minutes and restart. Clear the alarm using ValVue or HART Host. If the failure persists, replace the electronics module.

Replacement Models

The Masoneilan SVI3 is the direct replacement for the SVI II AP and SVI1000. It features stainless steel mounting brackets for any valve/actuator combination and is fully backwards compatible with SVI II AP and SVI1000 mounting brackets. For SVI II AP users, the upgrade is relatively simple — existing mounting can be used, and only the air/tubing connection may need adjustment. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
