Flowserve Logix 520MD Digital Valve Positioner with HART 5, 6, and 7 Communication, ±0.25% Accuracy, and IP66/NEMA 4X Enclosure

Product Overview

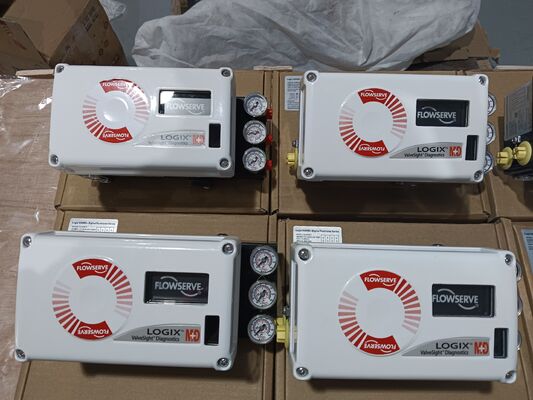

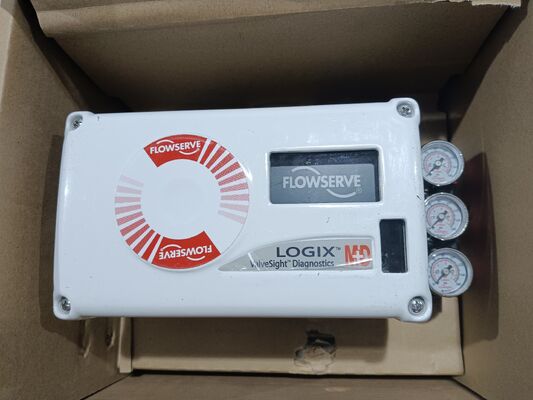

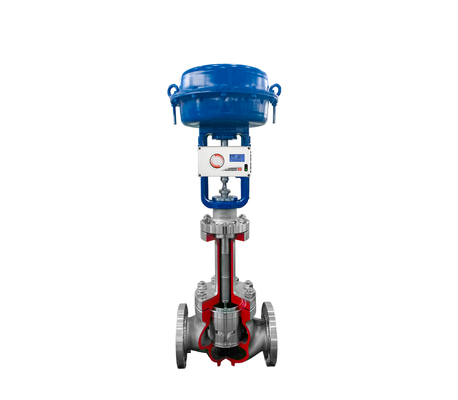

The Flowserve Logix 520MD is a high-performance digital valve positioner engineered for accurate pneumatic actuator control. It accepts a two-wire 4-20mA input with HART 5, 6, and 7 communication and provides a pneumatic output for both rotary and linear actuators. The unit combines precise positioning and tuning capabilities with simple setup and powerful diagnostic functions.

A multi-variable gain tuning algorithm allows the 520MD to make large step changes with minimal overshoot while maintaining resolution for very small step changes. Auto-tune cycles the actuator to generate a measured response and selects gain values that deliver appropriate actuator performance. A gain modifier selector can increase or decrease the calculated gain for optimal results.

DIP switches handle tuning mode and other common settings. For custom requirements, tuning sets can be modified with a handheld or ValveSight software to accommodate a wide range of actuator sizes and types. A two-stage control design provides faster response times and tighter control with low air consumption.

Technical Specifications

Application Industry

The Flowserve Logix 520MD serves oil and gas, chemical processing, power generation, water treatment, and pharmaceutical industries. It is used for pipeline and actuator control, reactor valve positioning, turbine bypass automation, flow regulation, and hygienic valve operations. Certified hazardous area ratings make it suitable for demanding process environments.

Common Problems

• No LED blinking: Current is below 3.6 mA or wiring polarity is incorrect. Verify supply current is at least 3.6 mA and check polarity.

• Erratic communications: HART signal issues. Check current source bandwidth is limited to 25Hz. Verify cable length and impedance. Use a compatible intrinsic safety barrier.

• Unit does not respond to analog commands: Unit is in digital command mode or a calibration error occurred. Change command mode to analog. Recalibrate the unit.

• Valve position reading not as expected: Position sensor mounting not at 180 degrees, stroke not calibrated, MPC active, or user characterization active. Reposition sensor. Calibrate stroke.

• Position driven fully open or closed, not responding to command: Stroke not calibrated, Hall sensor inner loop not connected, wrong air action set, tubing reversed, or I/P converter issue.

• Friction Calibration Required: No friction calibration performed since factory reset. Perform Friction Calibration using the display menu, handheld, or DTM.

Replacement Models

The Flowserve Logix 520MD series is a mature digital positioner platform. For applications requiring additional safety integrity, the Logix 520MD+ variant offers enhanced features. For newer installations, the Logix 3200MD and Logix 3800MD are alternative models within the same product family. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
