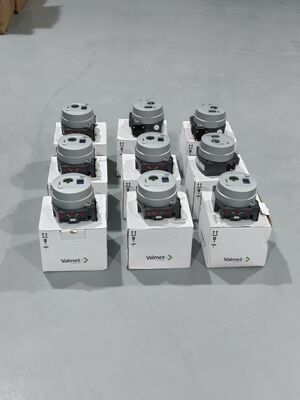

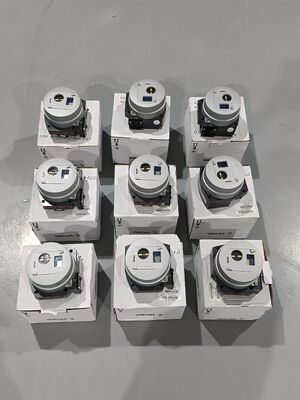

Neles ND9000 Intelligent Valve Positioner with HART 6/7 Fieldbus SIL 2 Certification and Contactless Valve Position Measurement

Product Overview

The Neles ND9000 is a microcontroller-based intelligent valve controller built for precise pneumatic actuator control. It runs on a 4-20mA or fieldbus power supply and continuously compares the input command signal with the actual valve position to adjust the actuator. The ND9000 works with every control valve actuator and in all industry areas.

The unit uses contactless valve position measurement, eliminating mechanical wear in the feedback path. It handles both rotary and linear valves, and the same device supports single-acting and double-acting actuators. Commissioning is straightforward with the local user interface (LUI) or remote DTM/EDD configuration. A 1-point calibration feature allows installation on valves that are in process without disturbing operation.

The ND9000 holds SIL 2 certification from TÜV according to IEC 61508. It provides comprehensive diagnostics including self-diagnostics, online diagnostics, performance diagnostics, and communication diagnostics. The device stores up to 8000 online alarms and maintenance reminders with a data retention period of 25 years. Advanced diagnostics let operators monitor valve friction, spring force, and wear condition for predictive maintenance.

Technical Specifications

Application Industry

The Neles ND9000 serves oil and gas, chemical processing, power generation, pulp and paper, mining, and general industrial automation. Key applications include pipeline and actuator control, reactor valve positioning, turbine bypass automation, flow regulation, and mining flotation control. The device integrates with all major DCS systems and supports mounting kits for any third-party actuators. Marine-approved versions are available for offshore applications.

Common Problems

• Calibration Failed Due to Valve Position Out of Range: Check air supply pressure. For double-acting actuators, set pressure approximately 10 PSI below the expected minimum supply. For single-acting actuators, do not exceed the actuator rated pressure. Verify the H-Clip on the feedback lever is level, straight, and aligned with the valve feedback shaft.

• ERR / Travel Too Short: The positioner detected that the physical feedback shaft angle change did not reach the minimum electrical measurement threshold during Autotune. Check mounting and feedback linkage alignment.

• ERR / Control Deviation: The valve position deviates from the setpoint beyond the configured limit. Check for valve sticking, increased friction, or air supply issues.

• Hunting Detection Warning: Valve oscillation detected. Change the performance level to less aggressive to stabilize the valve. Verify the spool valve capacity is adequate for the actuator.

• Position Calibration Failed: Verify configuration parameters and controller mounting. Check that the controller shaft is correctly aligned.

• Temperature Sensor Failure: Temperature measurement failed. Accuracy of measurements is reduced. Replace the ND device at the next maintenance opportunity.

• Supply Pressure Out of Limits: Supply pressure exceeded specified operating conditions. Check the air supply regulator and compressor output.

Replacement Models

The Neles ND9000 is a mature intelligent valve controller platform. For legacy installations, the ND7000 series positioners are direct predecessors — the ND9000 serves as a functional upgrade with enhanced diagnostics and fieldbus options. The ND9103HX8T and ND9106HX8T are specific model variants within the ND9000 series that offer enhanced explosion-proof certification. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
