Neles ND7000 Smart Digital Valve Positioner with HART Communication and 4-20mA Input Signal for Industrial Control Valves

Product Overview

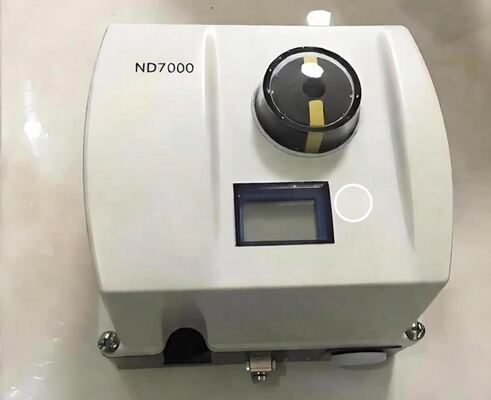

The Neles ND7000 is a microprocessor-based intelligent valve controller that delivers precise regulation of pneumatic actuators across all industrial sectors. Powered by a 4-20mA loop, it constantly evaluates the command signal against the real valve position and corrects the actuator to match. The design works with every control valve actuator. Contactless position sensing removes mechanical wear from the feedback path. The same hardware supports rotary and linear valves, plus single- and double-acting actuators. Local user interface or remote DTM/EDD simplifies commissioning. One-point calibration allows mounting on in-service valves without process interruption. TÜV SIL 2 per IEC 61508. Diagnostics cover self-check, online, performance, and communication. Stores up to 8000 alarms and reminders, 25-year retention. Advanced monitoring tracks friction, spring force, and wear for predictive maintenance.

Technical Specifications

Application Industry

The Neles ND7000 is used in oil and gas, chemical processing, power generation, mining, and general industrial automation. The device can be integrated with all major DCS systems and supports mounting kits for any third-party actuators. It is fully compatible with different manufacturers' systems and equipment.

Common Problems

• A change in valve position setpoint will not affect actuator position: Check supply pressure (may be too low), spool valve sticking, incorrect configuration parameters, actuator or valve jammed, signal wires incorrectly connected, or calibration not carried out.

• Actuator goes to end position with small input signal change: Tubes between controller and actuator are incorrect. Check parameter settings PFA and ROT.

• Inaccurate positioning: Spool valve dirty, too high actuator load, supply pressure too low, spool or pressure sensors defective, or actuator leakage.

• Overshooting or positioning too slow: Change PERF value, spool valve dirty, supply air tube too small, or supply air filter dirty.

Replacement Models

The Neles ND7000 is a mature intelligent valve controller platform. The ND9000 series is the next-generation upgrade with enhanced diagnostics and fieldbus options. The ND7000 serves as a direct replacement for legacy NE700/NP700 positioners. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
