Rotork YTC YT-3300 Smart Valve Positioner HART 4-20mA for Industrial Control Valves

Product Overview

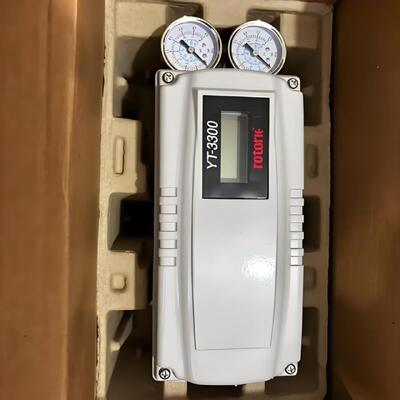

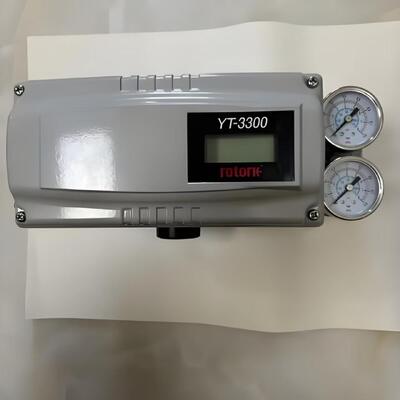

The Rotork YTC YT-3300 smart valve positioner delivers accurate valve stroke control based on a 4-20mA command from the controller. It is built for pneumatic linear and rotary valve actuators and works in both ordinary and hazardous industrial environments. The Rotork YTC positioner family is a flagship line, known for dependable performance across many applications.

The YT series includes auto calibration with a straightforward menu, an alphanumeric LCD for process values and calibration, and HART communication for digital commands, position feedback, and diagnostics over the current loop. Four rugged pushbuttons handle local configuration. Fail-freeze and fail-safe functions let the valve hold its last position or move to a preset position if electrical or pneumatic supply is lost.

With near-zero steady-state air consumption and a durable aluminum alloy housing, the Rotork YTC positioner is designed for energy efficiency and long service life. Available models include YT-1000 (basic electro-pneumatic), YT-2500 (smart positioner with HART), YT-3300 (advanced smart positioner with PST), and YT-3700 (compact smart positioner).

Technical Specifications

Application Industry

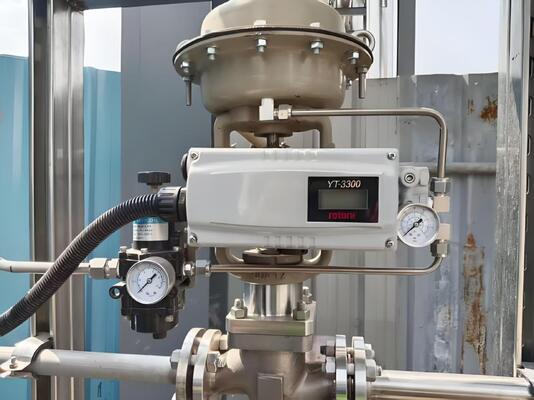

The Rotork YTC YT-3300 positioner serves petrochemicals, power generation, water treatment, paper, and general industrial process control. It operates pneumatic linear and rotary valve actuators in both safe and hazardous areas. Suitable for throttling control, on/off control, and applications requiring partial stroke testing for safety instrumented systems.

Common Problems

• No response to input signal: Check supply pressure (1.4~7 bar) and pneumatic connections. Verify the input signal is within 4-20mA range.

• Valve position does not match input signal: Perform auto calibration. Check that the action direction (direct or reverse) is correctly set. Verify feedback linkage connection.

• Erratic operation or oscillation: Check for air leaks in tubing and fittings. Verify the PID control parameters. Check for excessive friction in valve packing or actuator.

• Auto calibration fails: Check supply pressure and travel limits. Ensure the valve is not stuck or binding. Verify the feedback lever is properly engaged.

• Air leakage from positioner: Check O-rings, gaskets, and diaphragm for wear. Inspect the spool valve for contamination.

Replacement Models

The Rotork YTC series offers multiple models for different application requirements. The YT-3300 is an advanced smart positioner with Partial Stroke Test capability. The YT-3700 is a compact smart positioner with graphical monitoring and advanced diagnostics. The RTP-4000 range is the next-generation intelligent valve positioner platform. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
