Neles ND7000 Digital Intelligent Valve Controller with HART 7 SIL 2 Certified and Self-diagnostics for Control Valves

Product Overview

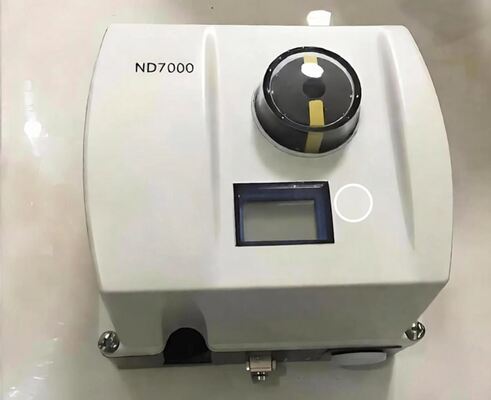

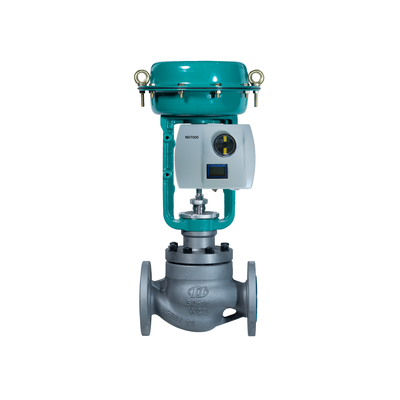

The Neles ND7000 is a microcontroller-based intelligent valve controller that delivers accurate and reliable pneumatic actuator control. It is powered by a 4-20mA loop and continuously compares the input command signal with the actual valve position, adjusting the actuator accordingly. The ND7000 works with virtually every control valve actuator and in all industry areas.

The unit uses contactless valve position measurement, eliminating mechanical wear in the feedback path. The same device handles rotary and linear valves, plus single-acting and double-acting actuators. Commissioning is simple with the Local User Interface (LUI) or remote DTM/EDD configuration. A 1-point calibration feature allows installation on in-service valves without process interruption.

The ND7000 is SIL 2 certified by TÜV according to IEC 61508. It features self-diagnostics including deviation trend, counters, and extended off-line tests. The device is built for harsh environmental conditions with a rugged modular design, excellent temperature characteristics, and vibration and impact tolerance.

Technical Specifications

Application Industry

The Neles ND7000 is used in oil and gas, chemical processing, power generation, mining, and general industrial automation. The device can be integrated with all major DCS systems and supports mounting kits for any third-party actuators. It is fully compatible with different manufacturers' systems and equipment.

Common Problems

• A change in valve position setpoint will not affect actuator position: Check supply pressure (may be too low), spool valve sticking, incorrect configuration parameters, actuator or valve jammed, signal wires incorrectly connected, or calibration not carried out.

• Actuator goes to end position with small input signal change: Tubes between controller and actuator are incorrect. Check parameter settings PFA and ROT.

• Inaccurate positioning: Spool valve dirty, too high actuator load, supply pressure too low, spool or pressure sensors defective, or actuator leakage.

• Overshooting or positioning too slow: Change PERF value, spool valve dirty, supply air tube too small, or supply air filter dirty.

Replacement Models

The Neles ND7000 is a mature intelligent valve controller platform. The ND9000 series is the next-generation upgrade with enhanced diagnostics and fieldbus options. The ND7000 serves as a direct replacement for legacy NE700/NP700 positioners. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
