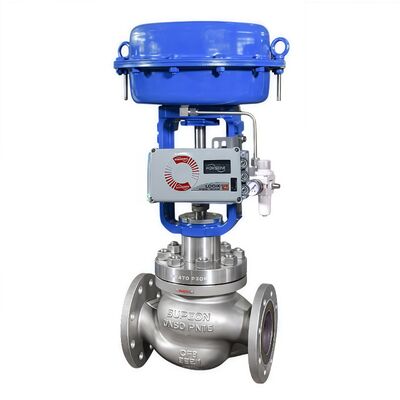

Flowserve Logix 520MD Smart Digital Valve Positioner with HART 5/6/7 Auto-tune Algorithm and Low Air Consumption

Product Overview

The Flowserve Logix 520MD is a smart precision digital valve positioner that communicates over HART. It accepts a two-wire 4-20mA control signal and generates a proportional pneumatic output to drive a valve actuator. All power comes from the 4-20mA loop. The unit handles single-acting actuators in both linear and rotary configurations.

A multi-variable gain tuning algorithm enables large step changes with minimal overshoot while still resolving very small step changes. The Auto-tune procedure cycles the actuator and measures the response, then automatically selects gain values that optimize performance. A gain modifier selector provides additional fine-tuning. DIP switches manage tuning mode and other common settings, while ValveSight software delivers standard diagnostic functions.

Calibration is fast, straightforward, and accurate, thanks to self-calibration and adjustable gain selection. Steady-state air consumption is low, and the two-stage control design provides faster response times and tighter control. The unit supports HART 5, 6, and 7 and is rated for hazardous areas.

Technical Specifications

Application Industry

The Flowserve Logix 520MD is used in oil and gas, chemical processing, power generation, water treatment, and pharmaceutical industries. Key applications include pipeline and actuator control, reactor valve positioning, turbine bypass automation, flow regulation in plants, and hygienic valve operations. Its certified hazardous area rating makes it suitable for demanding process environments.

Common Problems

• No LED blinking: Current is below 3.6 mA or wiring polarity is incorrect. Verify supply current is at least 3.6 mA and check polarity.

• Erratic communications: HART signal issues. Check current source bandwidth is limited to 25Hz. Verify cable length and impedance. Use a compatible intrinsic safety barrier.

• Unit does not respond to analog commands: Unit is in digital command mode or a calibration error occurred. Change command mode to analog. Recalibrate the unit.

• Valve position reading not as expected: Position sensor mounting not at 180 degrees, stroke not calibrated, or MPC active. Reposition sensor. Calibrate stroke.

• Position driven fully open or closed: Stroke not calibrated, Hall sensor inner loop not connected, wrong air action set, or tubing reversed. Calibrate stroke. Check hardware connections.

• Friction Calibration Required: No friction calibration performed since factory reset. Perform Friction Calibration using the display menu, handheld, or DTM.

Replacement Models

The Flowserve Logix 520MD series is a mature digital positioner platform. For applications requiring additional safety integrity, the Logix 520MD+ variant offers enhanced features. For newer installations, the Logix 3200MD and Logix 3800MD are alternative models within the same product family. For cross-vendor alternatives, verify actuator mounting, travel range, and communication protocol before ordering.
