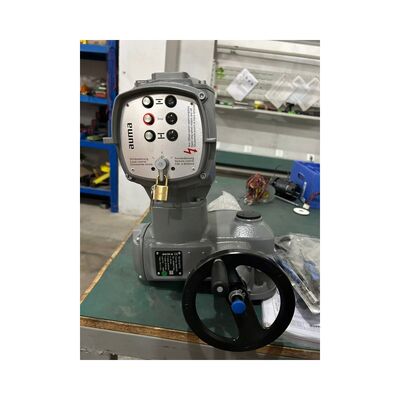

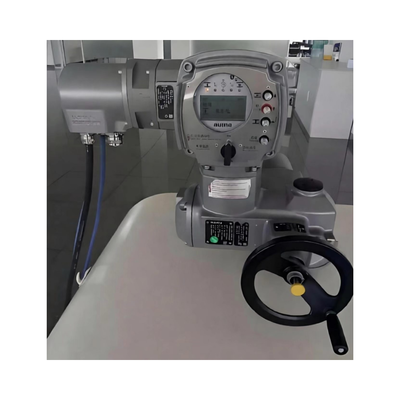

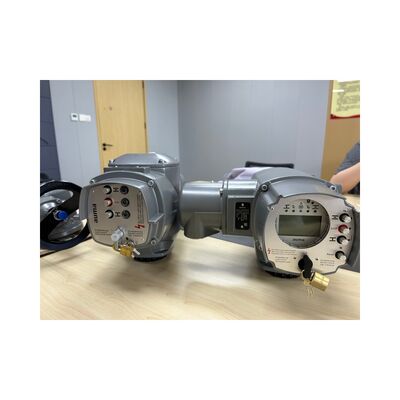

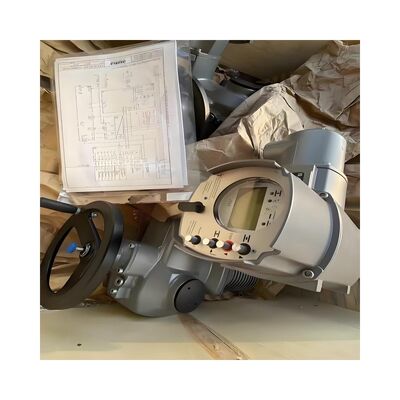

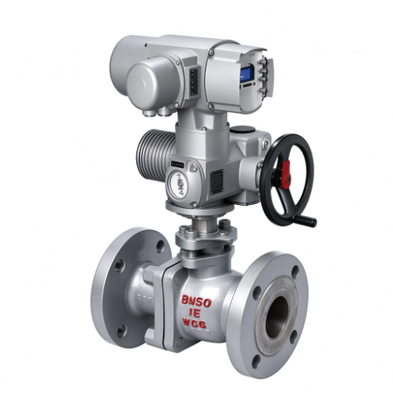

AUMA SA Series Multi-Turn Electric Actuator for Gate Valves and Globe Valves

Product Overview

The AUMA SA Series is a multi-turn electric valve actuator designed for open-close duty and positioning duty on gate valves, globe valves, and similar multi-turn applications. It delivers reliable torque transmission, precise limit and torque switching, and is available across a wide torque range from 10 Nm to 32,000 Nm to suit different valve sizes and process requirements.

SA-type actuators for open-close duty are rated for Class A and B or short-time duty S2 – 15 min. A special version is available for longer running times (S2 – 30 min). The actuators can be combined with different actuator controls, from simple OPEN-CLOSE controls to micro-controlled versions with logging of operating data or fieldbus interface.

The actuator features limit and torque sensing, available with 3-phase AC, 1-phase AC, and DC motors. A handwheel is provided for manual operation. The enclosure provides IP68 protection according to EN 60529, with high-quality corrosion protection (KS) and a wide ambient temperature range of -30°C to +70°C. Output drive types conform to DIN and ISO standards.

Technical Specifications

Application Industry

The AUMA SA Series is used in water and wastewater treatment, power generation, oil and gas, petrochemical, chemical processing, district heating, and industrial plants. It is suitable for open-close duty on gate valves, globe valves, and other multi-turn valve applications. The IP68 enclosure makes it suitable for harsh outdoor or submerged conditions.

Common Problems

• No reaction to operation commands: Check movement at actuator. Verify the reaction time setting. Check for mechanical blockage or power supply issues.

• Torque fault in OPEN or CLOSE direction: Check for valve obstruction. Verify torque switch settings. Inspect for excessive valve friction.

• Mechanical position indicator cannot be set: Reduction gearing is not suitable for the turns/stroke of the actuator. Exchange reduction gearing.

• Actuator runs to end stop although limit switches work properly: Check limit switch settings and end position configuration.

• Motor winding temperature too high: Check actuator sizing. Verify the duty cycle matches the application. Correct sizing if necessary.

Replacement Models

The AUMA SA Series is a current-generation multi-turn electric actuator platform. The SAR Series is a modulating actuator variant rated for Class C or duty type S4 – 25%. The SAEx Series is available for explosion-proof applications (torque range 10 Nm to 16,000 Nm). The SA-UW Series is designed for continuous underwater use (torque range 10 Nm to 4,000 Nm).

For cross-vendor alternatives, verify valve mounting, torque requirements, and control interface compatibility before ordering.
