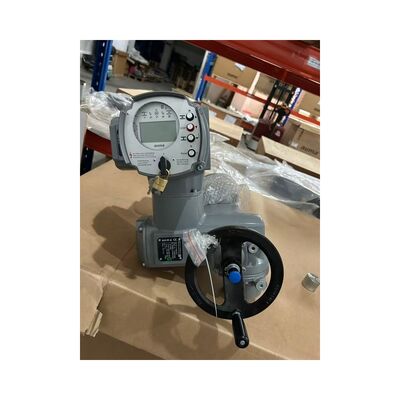

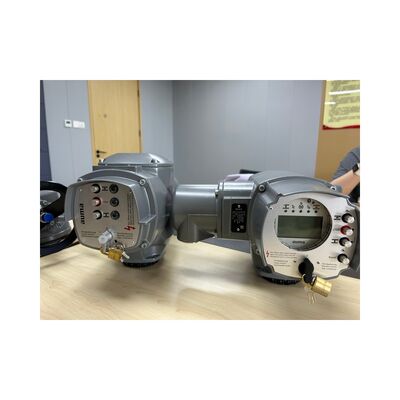

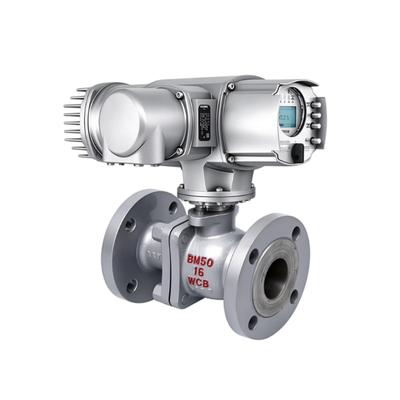

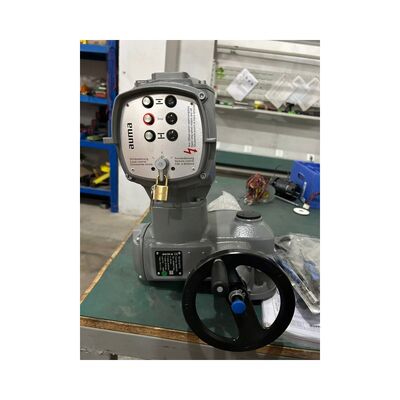

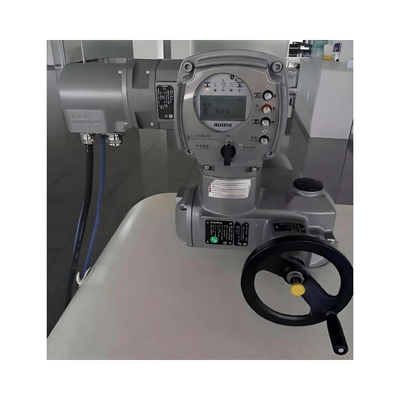

AUMA SA Series AC Multi-Turn Electric Actuator with Handwheel for Control Valves

Product Overview

Introducing the AUMA SA Series, a multi-turn electric actuator engineered for open-close and positioning tasks on gate valves, globe valves, and similar multi-turn valves. It delivers dependable torque transmission, precise limit and torque switching, and covers a torque range from 10 Nm to 32,000 Nm to match various valve sizes and process demands.

SA-type actuators for open-close duty are rated Class A and B or short-time duty S2 – 15 min. An optional S2 – 30 min version is offered for longer running periods. These actuators pair with a variety of controls, from basic OPEN-CLOSE units to micro-controlled versions with operating data logging or a fieldbus interface.

Limit and torque sensing come as standard. Motor choices include 3-phase AC, 1-phase AC, and DC. A handwheel enables manual operation. The IP68 enclosure per EN 60529 delivers high-quality corrosion protection (KS) and operates within -30°C to +70°C. Output drive types conform to DIN and ISO standards.

Technical Specifications

Application Industry

The AUMA SA Series serves water and wastewater treatment, power generation, oil and gas, petrochemical, chemical processing, district heating, and industrial plants. It is well-suited for open-close duty on gate valves, globe valves, and other multi-turn valve applications. The IP68 enclosure makes it reliable for harsh outdoor or submerged conditions.

Common Problems

• No reaction to operation commands: Check actuator movement. Verify the reaction time setting. Look for mechanical blockage or power supply issues.

• Torque fault in OPEN or CLOSE direction: Inspect for valve obstruction. Verify torque switch settings. Check for excessive valve friction.

• Mechanical position indicator cannot be set: The reduction gearing may not suit the actuator's turns/stroke. Replace the reduction gearing.

• Actuator runs to end stop although limit switches work properly: Check limit switch settings and end position configuration.

• Motor winding temperature too high: Review actuator sizing. Confirm the duty cycle matches the application. Correct sizing if needed.

Replacement Models

The AUMA SA Series is a current-generation multi-turn electric actuator platform. The SAR Series is a modulating actuator variant rated Class C or duty type S4 – 25%. The SAEx Series is available for explosion-proof applications (torque range 10 Nm to 16,000 Nm). The SA-UW Series is designed for continuous underwater use (torque range 10 Nm to 4,000 Nm). For cross-vendor alternatives, verify valve mounting, torque requirements, and control interface compatibility before ordering.
