AUMA SA Series Pre-Assembled Electric Actuator System with Handwheel for Gate Valves

Product Overview

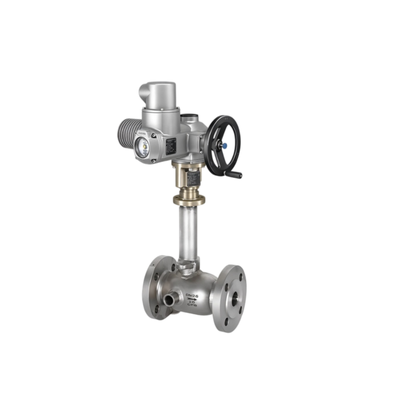

This AUMA SA Series valve package arrives fully assembled, with the electric actuator already mounted and tested on a gate or globe valve. Factory matching removes the need for separate component sourcing and reduces the chance of installation mismatches. The actuator delivers torque from 10 Nm to 32,000 Nm through a 3-phase AC, 1-phase AC, or DC motor. Limit and torque switches provide accurate end-position feedback, and a handwheel allows manual operation during power loss or maintenance.

SA-type actuators for open-close duty carry Class A and B ratings or short-time duty S2 – 15 min. An optional S2 – 30 min version handles longer running periods. The actuator works with a range of control units, from basic OPEN-CLOSE units to micro-controlled versions with operating data logging or fieldbus interface. The IP68 enclosure per EN 60529 provides high-quality corrosion protection (KS) and operates within -30°C to +70°C. Output drive types conform to DIN and ISO standards.

Technical Specifications

Application Industry

The system is used in water and wastewater treatment, power generation, oil and gas, petrochemical, chemical processing, district heating, and industrial plants. It handles open-close duty on gate valves, globe valves, and other multi-turn valve applications. The IP68 enclosure makes it suitable for harsh outdoor or submerged conditions.

Common Problems

• No reaction to operation commands: Confirm the reaction time setting. Check for mechanical blockage or power supply issues.

• Torque fault in OPEN or CLOSE direction: Inspect the valve for obstruction. Verify torque switch settings. Excessive valve friction may also trigger this fault.

• Mechanical position indicator cannot be set: The reduction gearing may not match the actuator's turns/stroke. Replace it with a suitable reduction gearing.

• Actuator runs to end stop although limit switches work properly: Review limit switch settings and end position configuration.

• Motor winding temperature too high: Check whether the actuator sizing matches the application. Confirm the duty cycle is correct.

Replacement Models

The AUMA SA Series is a current-generation multi-turn electric actuator platform. The SAR Series is a modulating actuator variant rated for Class C or duty type S4 – 25%. The SAEx Series is available for explosion-proof applications (torque range 10 Nm to 16,000 Nm). The SA-UW Series is designed for continuous underwater use (torque range 10 Nm to 4,000 Nm). For cross-vendor alternatives, verify valve mounting, torque requirements, and control interface compatibility before ordering.
